LT 1040 (13BX10CG710) - Cub Cadet 42" Lawn Tractor Seat Parts Diagram

42" Lawn Tractor

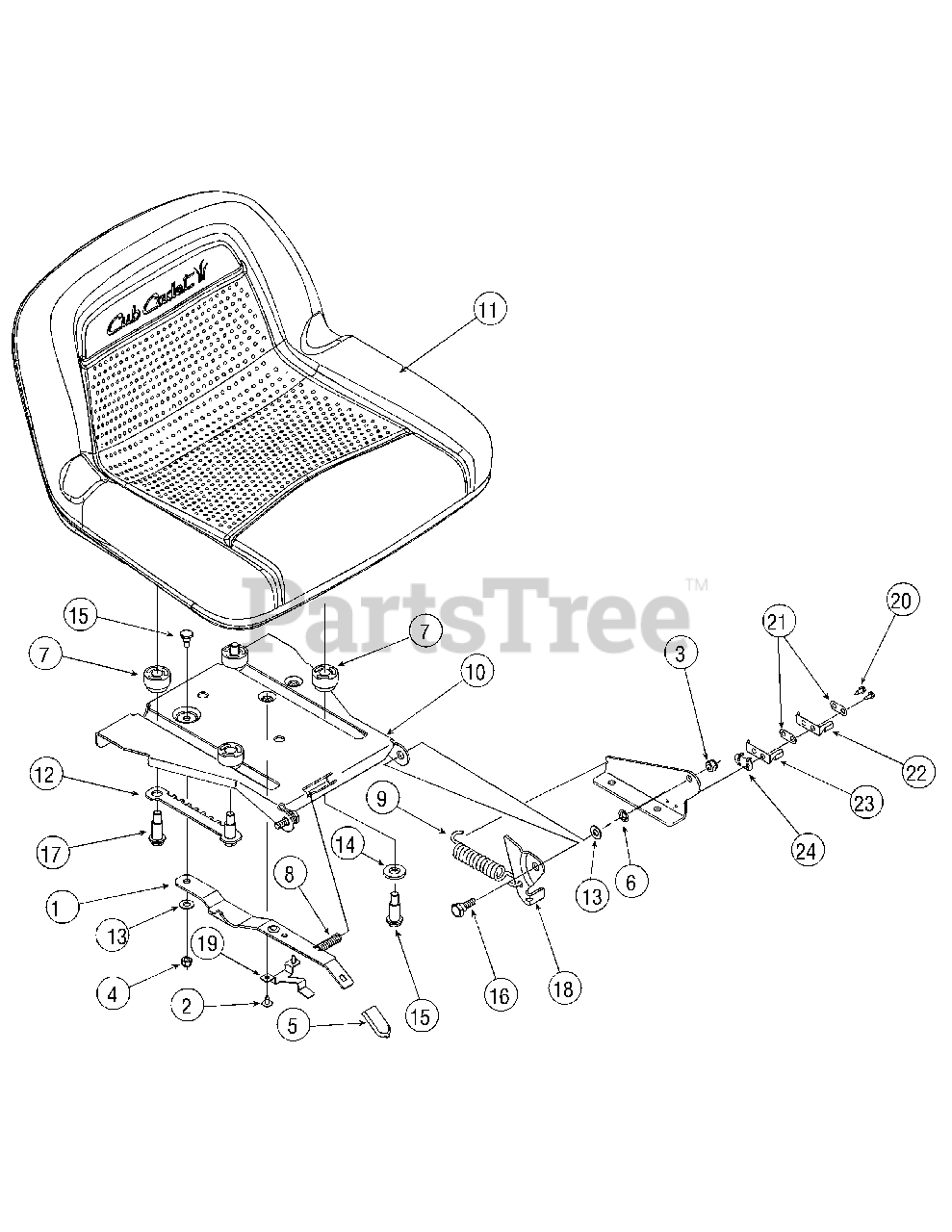

Seat Parts Diagram

  • Title

1

Cub Cadet 783-0739A

Lever, Seat, Adjustment
(Superseded to 783-0739A-0637)

Variations

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1268

Screw, #10-16, 0.375

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3027

Nut, Nylon Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04064

Nut, Nylon Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 720-0433

Grip, Seat, Adjustment (Yellow)

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-04074

Spacer, Seat, Adjustment

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 732-0499

Spring, Compression .41 OD x 1.50

$9.49

$

In Stock, only 1 left!

0

9

Cub Cadet 732-1184

Spring, Extension, .80 Dia x 4.6 Lg.

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet 783-0738C

Bracket, Pivot, Seat
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738C-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738C-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0738C-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738C-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738C-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738C-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0738C-4015

USE 783-0738D-4015 BRACKET-PI - FIRE RED (4015)

$

$

Not available

Cub Cadet 783-0738C-4008

USE 783-0738D-4008 BRACKET-PI - WINE RED (4008)

$

$

Not available

$

$

11

Cub Cadet 757-04004

Seat, Cub Cadet, Medium Back, Bead
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

11

Cub Cadet 757-04054

Seat, Cub Cadet, Medium Back

$

$

Not available

12

Cub Cadet 783-0753

Selector, Seat, Adjustment

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0204

Washer, Flat, .344 x .620 x .033

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

15

Cub Cadet 738-0137A

Screw, Shoulder, .340 x .285, 1/4-20

$10.99

$

In Stock, Qty 10

0

16

Cub Cadet 738-0296

Shoulder, Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0966A

Screw, Shoulder, .50 x.925, 3/8-16

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 783-0209D

Bracket, Seat Lift

$16.99

$

In Stock, only 1 left!

0

19

Cub Cadet 783-0611

Stop, Seat, Adjustment

$10.99

$

In Stock, only 3 left!

0

20

Cub Cadet 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0

21

Cub Cadet 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

22

Cub Cadet 725-1303

Spring Switch, Inner
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

23

Cub Cadet 725-1439

Spring Switch, Outer

$8.49

$

In Stock, Qty 8

0

24

Cub Cadet 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0
