LT 1040 (13BX10CG710) - Cub Cadet 42" Lawn Tractor Dash Panel 1K016H & before Parts Diagram

42" Lawn Tractor

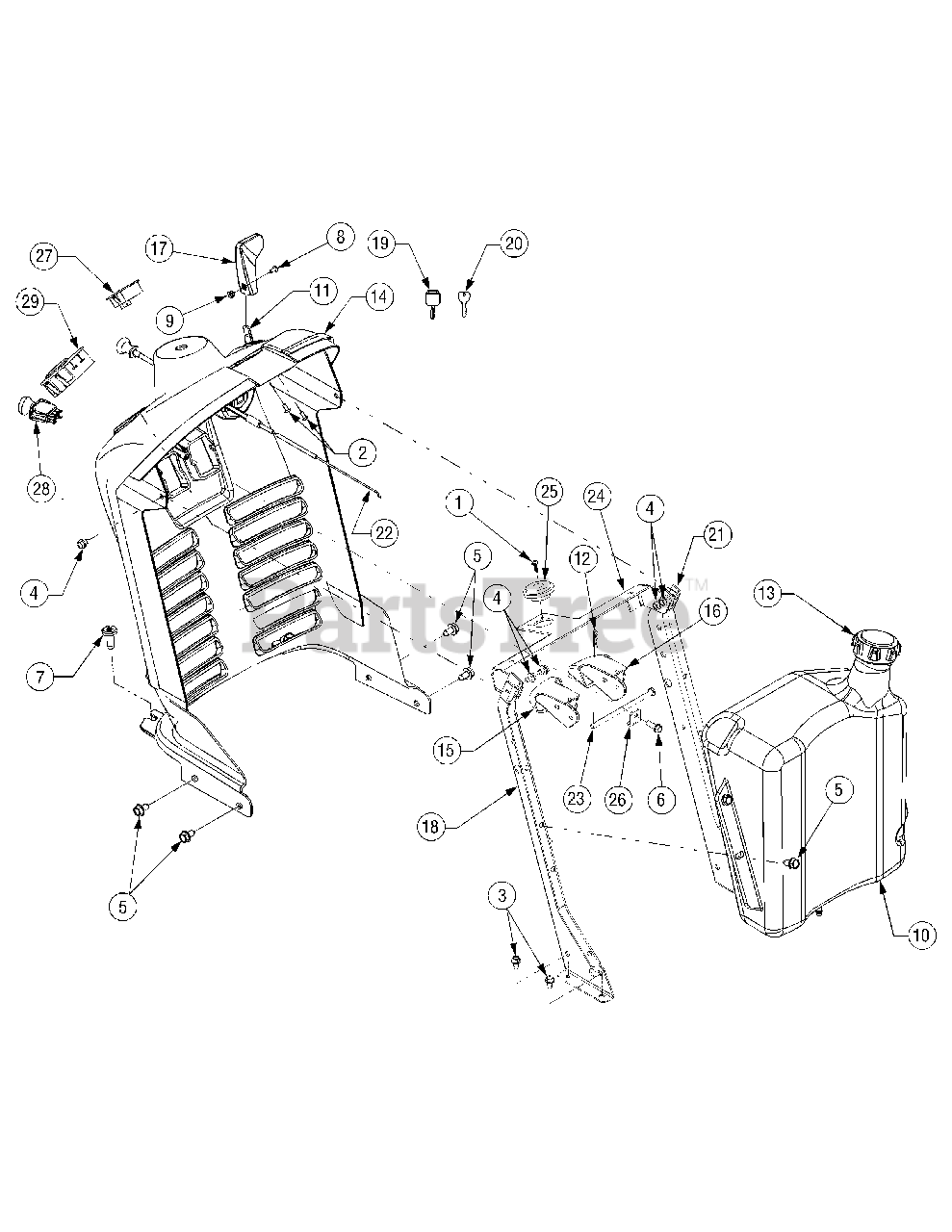

Dash Panel 1K016H & before Parts Diagram

  • Title

1

Cub Cadet 710-0192

Screw, #10-24 x .375

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-0351

Screw, Pan Hd. #10-16 x .50

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0653

Screw, Self-tapping. 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 710-0726

Screw, Hex Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1611B

Screw, Torx Hd. , 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3217

Screw, Machine, #8-32, 0.375,

$6.99

$

In Stock, Qty 7

0

9

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet 751-0658E

Fuel Tank, 3 Gal

$115.99

$

In Stock, only 3 left!

0

11

Cub Cadet 746-1087

Control, Throttle, 27.4
(Superseded to 946-1087)

$35.99

$

In Stock, only 1 left!

0

12

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 751-0603

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-05004

Dash
(Superseded to 931-05004)

$

$

Not available

15

Cub Cadet 731-04294A

Lever, Dash, Cruise

$17.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-04293A

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

18

Cub Cadet 783-04285D

Dash Support, RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285D-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 725-2054

Ignition Key, Plastic
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0

20

Cub Cadet 725-1744

Ignition Key, Metal
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

21

Cub Cadet 783-04323D

Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323D-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 746-04121

Control, Choke, 24.0

$30.99

$

In Stock, only 1 left!

0

23

Cub Cadet 747-1323A

Rod, .250 Dia x 4.25 Lg.

$11.99

$

In Stock, only 3 left!

0

24

Cub Cadet 783-04729A

Bracket, Dash Support
(Superseded to 783-05070-0637)

Variations

Cub Cadet 783-04729A-0637

USE 783-05070-0637 SUPPORT-DA - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 741-0587

Steering Colume Bearing

$4.49

$

In Stock, Qty 10

0

26

Cub Cadet 783-1499

Bracket, Dash Rod
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 725-04022A

Monitor, Systems Indicator / Hour
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

28

Cub Cadet 725-04258

Switch, PTO (Yellow Knob)
(Superseded to 925-04258A)

$56.99

$

In Stock, only 4 left!

0

Cub Cadet 725-1752

Switch, PTO (Black Knob)
(Superseded to 925-04174A)

Note: same as 725-04258 but with black knob

$70.99

$

In Stock, only 2 left!

0

29

Cub Cadet 725-04227

Switch Module, Ignition
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

Cub Cadet 725-04336

Wire Harness
(Superseded to 925-04404A)

Note: not shown

$240.99

$

Usually ships in 3-6 days

0
