LT 1040 (13BX10CG710) - Cub Cadet 42" Lawn Tractor Courage Engine Accessories 1K016H & after Parts Diagram

42" Lawn Tractor

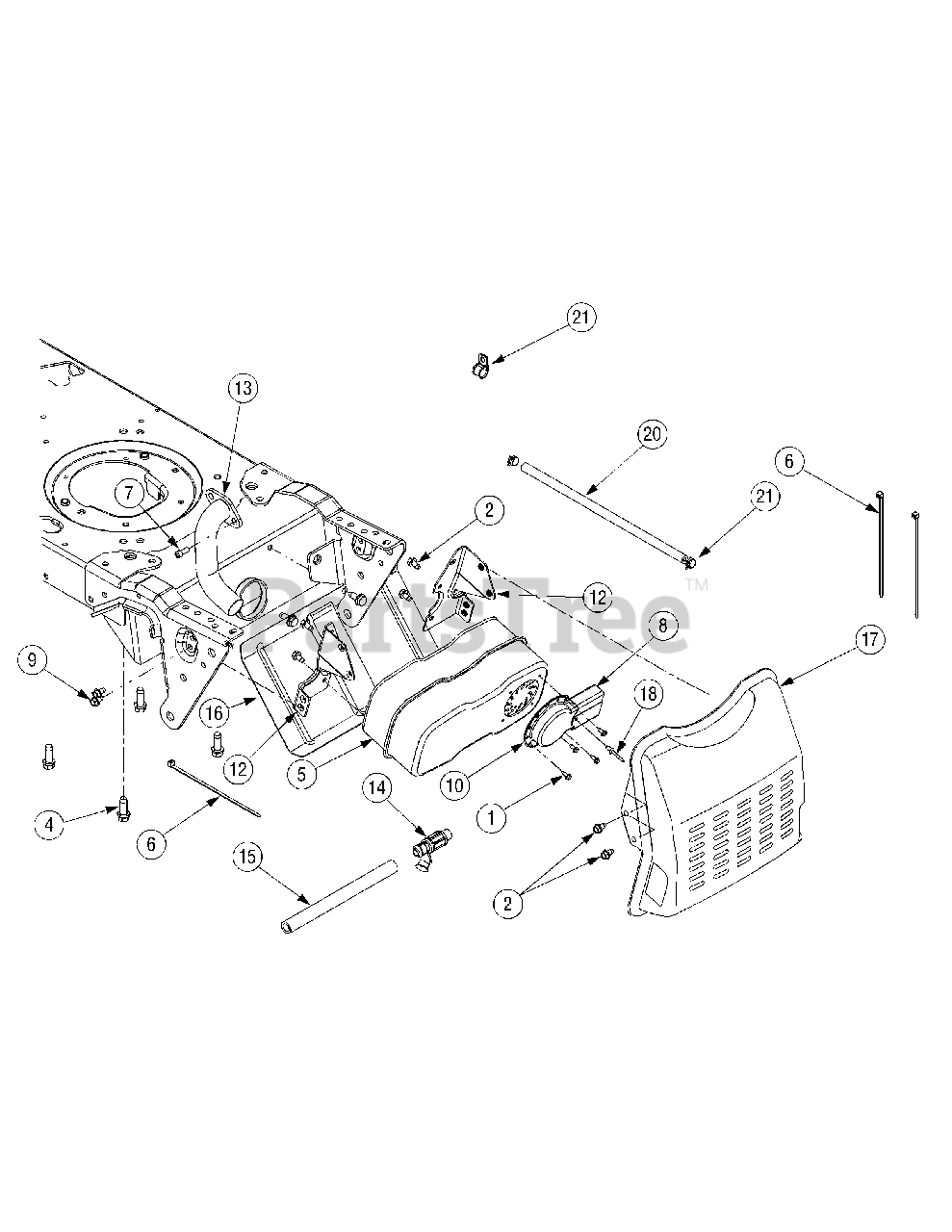

Courage Engine Accessories 1K016H & after Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0654A

Screw, Hex, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 751-0617C

Muffler, Single Inlet
(Superseded to 951-0617C)

Note: Used 10/18/2005 and Before

$149.99

$

In Stock, Qty 5

0

5

Cub Cadet 751-10162

Muffler, Single Inlet
(Superseded to 951-10162)

Note: Used 10/18/2005 to 11/01/2007

$84.99

$

In Stock, Qty 5

0

5

Cub Cadet 751-10529A

Muffler, Single Inlet
(Superseded to 951-10529A)

Note: Used 11/01/2007 to 12/15/2008

$137.99

$

In Stock, Qty 7

0

5

Cub Cadet 751-11022A

Muffler, Single Inlet
(Superseded to 951-11022A)

Note: Used 12/17/08 & After

$152.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1314A

Screw, 5/16-18, 0.75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 751-10353

Extension, Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0642

Screw, Hex, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 5

0

12

Cub Cadet 783-04573-0637

Muffler Bracket, LH

$23.99

$

In Stock, only 1 left!

0

12

Cub Cadet 783-04574-0637

Muffler Bracket, RH

$

$

Not available

13

Cub Cadet 751-10017

Pipe, Exhaust

$84.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 951-10517A

Drain, Oil

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-3141-14

Extension Hose, Oil Drain

$11.99

$

In Stock, Qty 8

0

16

Cub Cadet 783-05410

Heat Shield, Lower

$16.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 683-04256-0637

Shield, Muffler

$58.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 728-04000

Rivet, Pop, .188 x .325

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 726-0205

Fuel Clamp

$3.99

$

In Stock, Qty 18

0

20

Cub Cadet 751-10349

Fuel Line, Low Permeation

Note: *CHOOSE LENGTH WHEN ORDERING*

$9.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 710-0726

Screw, Hex, 5/16-12 x .75

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0
