LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Frame Parts Diagram

42" Lawn Tractor

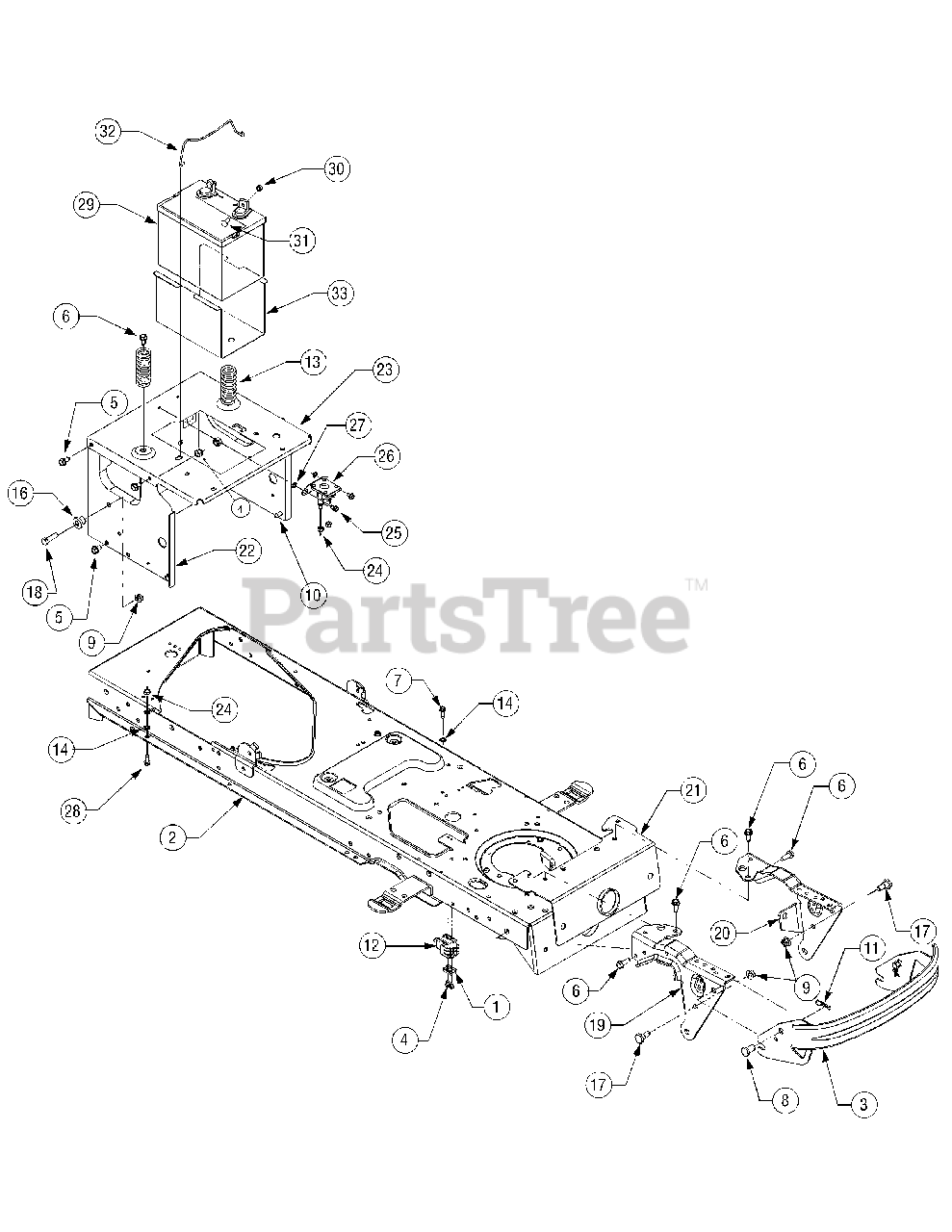

Frame Parts Diagram

  • Title

1

Cub Cadet 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

Cub Cadet 683-04173-0637

USE 683-04173B-0637 FRAME ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 683-04238

Bumper Assembly
(Superseded to 683-04238-0637)

Variations

Cub Cadet 683-04238-0637

Front Bumper - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0224

Screw, Hex Washer, 10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0726

Screw, Self-tapping, 5/16-18, 0.75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Self-tapping, 5/16-12, 0.75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1652

Screw, Hex Washer, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

9

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 17

0

10

Cub Cadet 710-0607

Screw, Hex Wash. Tapp, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

11

Cub Cadet 714-04023

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

13

Cub Cadet 732-04035

Spring, Compression, 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

14

Cub Cadet 736-0222

Washer, Lock, Ext 1/4

$5.99

$

In Stock, only 3 left!

0

16

Cub Cadet 738-04058

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3005

Hex Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

19

Cub Cadet 783-0726E

Bracket, Pivot, Support RH

Variations

Cub Cadet 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

20

Cub Cadet 783-0727D

Bracket, Pivot, Support LH

Variations

Cub Cadet 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

21

Cub Cadet 783-0728

Bracket, Pivot, Bar
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 783-04810

Frame, Upper
(Superseded to 783-04810B-0637)

Variations

Cub Cadet 783-04810-0716

USE 783-04810B-0637 FRAME-UPP - CUB YELLOW-99 (0716)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

23

Cub Cadet 783-04746

Bracket, Frame, Seat

Variations

Cub Cadet 783-04746-0716

BRACKET-SEAT FRAME - CUB YELLOW-99 (0716)

$64.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04746-4015

BRACKET-SEAT FRAME - FIRE RED (4015)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04064

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 725-1426A

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0222

Washer, External Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

28

Cub Cadet 710-0642

Screw, Hex. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 725-1737A

Battery, 190 CCA
(Superseded to 925-1707D)

$

$

Not available

30

Cub Cadet 712-0324

Nut, Sems, 1/4-20

$3.99

$

In Stock, Qty 16

0

31

Cub Cadet 710-0703

Screw, Carriage, 1/4-20, .75,

$4.49

$

In Stock, Qty 15

0

32

Cub Cadet 747-04121A

Hold-down Rod, Battery

$6.49

$

In Stock, Qty 20+

0

33

Cub Cadet 783-0349

Tray, Battery

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$
