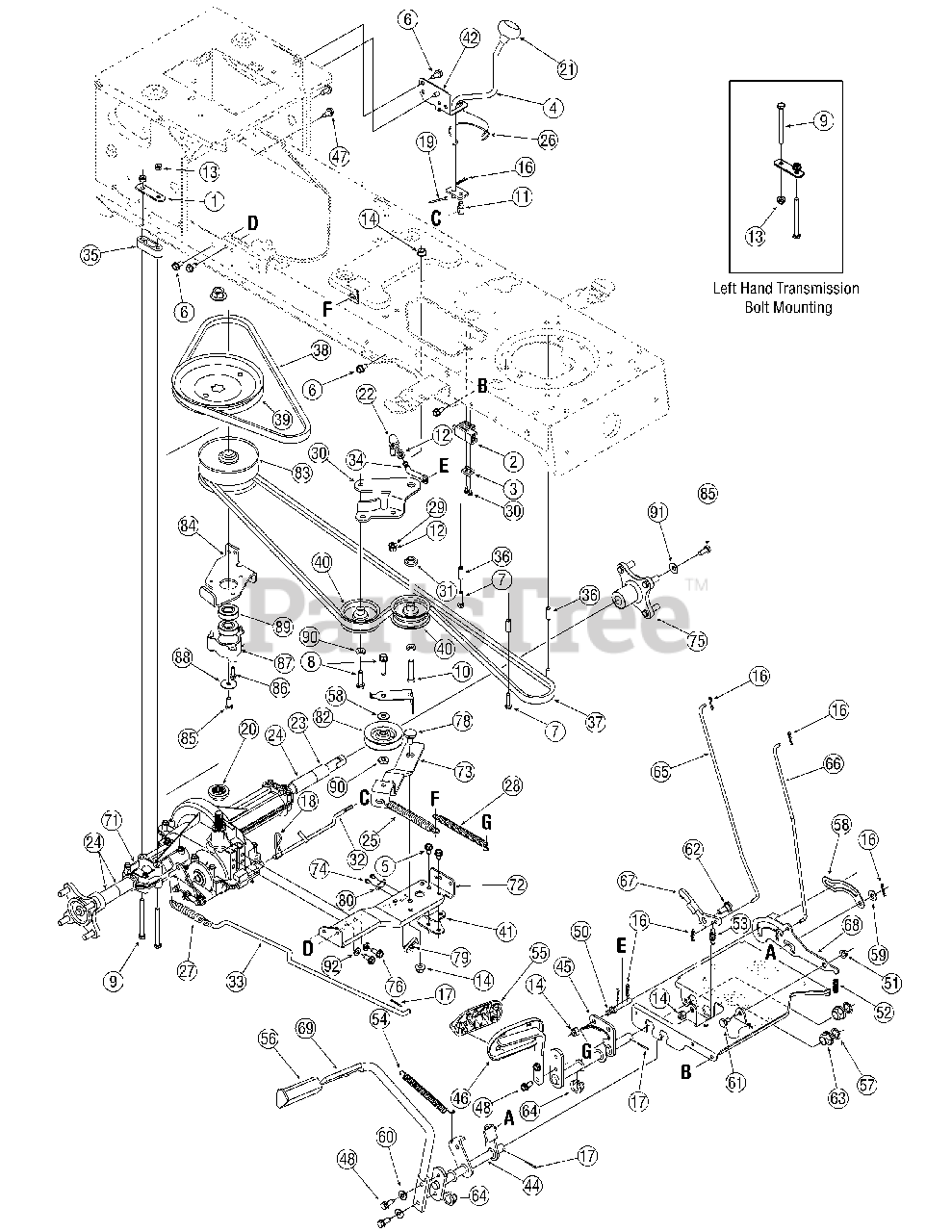

LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Drive System 1K016H & after Parts Diagram

42" Lawn Tractor

Drive System 1K016H & after Parts Diagram

  • Title

1

Cub Cadet 17840

Mounting Bracket, Transaxle
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

3

Cub Cadet 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

4

Cub Cadet 647-04020

Lever Assembly, Shift

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 17

0

8

Cub Cadet 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1266

Screw, 5/16-18, 3.50, Gr5

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-0736

Adjustment Ferrule 1/4-20 x 1.

$13.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

13

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

16

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 714-0209

Cotter Pin, Internal, .125 Dia.
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 718-0758A

Pulley Hub, 5/8 Spline
(Superseded to 718-04407)

$12.99

$

In Stock, Qty 20+

0

21

Cub Cadet 720-04028

Knob, Shift

$10.99

$

In Stock, only 3 left!

0

22

Cub Cadet 723-3018

Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

23

Cub Cadet 731-04682

Sleeve, .758 x .821 x 1.5

$

$

Not available

24

Cub Cadet 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 732-04370A

Spring, Extension, .76 Dia x 6.12
(Superseded to 932-04370A)

$12.99

$

In Stock, only 2 left!

0

26

Cub Cadet 732-0525

Spring Clip, Shifter

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 732-0716C

Spring, Extension, .59 OD x 4.00
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

28

Cub Cadet 732-0963

Spring, Extension, .50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

29

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0224

Screw, #10-16, .50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 18

0

31

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 18

0

32

Cub Cadet 747-04146C

Rod, Shift

$22.99

$

In Stock, only 1 left!

0

33

Cub Cadet 747-04164

Rod, Brake

$

$

Not available

34

Cub Cadet 747-1127

Idler Rod, Adjustable, 3/8

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 748-0334

Spacer, .68
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

37

Cub Cadet 754-0467

Belt, V-Type
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

38

Cub Cadet 754-0468

Belt, V-Type
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 12

0

39

Cub Cadet 756-04002

Pulley, V-Type, 7.25 Dia.
(Superseded to 956-04002)

$27.99

$

In Stock, Qty 19

0

40

Cub Cadet 756-0981B

Idler Pulley, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

41

Cub Cadet 783-04224

Bracket, Shift

$

$

Currently unavailable

42

Cub Cadet 783-04360

Bracket, Shift, F-N-R

$

$

Not available

43

Cub Cadet 783-04442

Idler Bracket, Center Double

Variations

Cub Cadet 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 647-04100

Control Assembly, Brake
(Superseded to 647-04100-0637)

Variations

Cub Cadet 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 647-0032A

Control Assembly, Speed
(Superseded to 647-0032A-0637)

Variations

Cub Cadet 647-0032A-0637

CONTROL ASM-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 683-0266

Pedal Assembly

$

$

Not available

47

Cub Cadet 710-04598

Screw, M8 x 1.25 x 20 mm

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-1260A

Screw,5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

50

Cub Cadet 711-04159B

Pin, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 732-0335

Spring, Compression, .405 x 1.17

$

$

Not available

53

Cub Cadet 732-0955

Spring, Extension, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

54

Cub Cadet 732-0963

Spring, Extension, .50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

55

Cub Cadet 735-0662

Pad

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 735-3049

Pad, Brake
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0187

Washer, Flat, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 738-0155

Screw, Shoulder .437 Dia x .162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-0380

Screw, Shoulder, .50 x .27 Lg, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

64

Cub Cadet 741-3065B

Split Bearing, Hex Flange

$8.49

$

In Stock, Qty 20+

0

65

Cub Cadet 747-04093A

Rod, Brake Lock

$

$

Not available

66

Cub Cadet 747-04096

Rod, Cruise Control

$15.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 748-04039C

Latch, Cruise Control

$

$

Not available

68

Cub Cadet 683-04186

Bracket, Lockout
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 747-04641

Pedal, Brake
(Superseded to 747-04641A-0637)

Variations

Cub Cadet 747-04641-0637

USE 747-04641A-0637 PEDAL-BRA - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 783-0780B

Bracket, Neutral Return

Variations

Cub Cadet 783-0780B-0637

USE 783-0780B BRACKET-NEUTRAL - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 618-04034

Transmission, Single Speed
(Superseded to 753-05851)

$671.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 683-04287

Bracket Assembly, Torque

$30.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 683-04286

Bracket, Idler

$20.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 618-04228

Hub Assembly, Wheel
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

76

Cub Cadet 710-0604A

Screw, 5/16-18, .625

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 710-3290

Screw, 3/8-16, 1.12

$4.49

$

In Stock, only 1 left!

0

78

Cub Cadet 738-0322A

Screw, Shoulder, .625 x .217

$6.99

$

In Stock, only 3 left!

0

79

Cub Cadet 725-1644

Switch Spring, Short

$9.99

$

In Stock, Qty 11

0

80

Cub Cadet 726-0320

Plate, Insulator
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

81

Cub Cadet 750-04294

Spacer, Shoulder

$7.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 756-0116A

Pulley, V-Type, 3.06
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

83

Cub Cadet 656-04015

Pulley Assembly, Variable Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

84

Cub Cadet 683-04296

Bracket, Pulley

$25.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 710-0627

Screw, 5/16-24, .750

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 710-0778

Screw, 1/4-20, 1.50

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 718-04261

Cup, Bearing

$20.99

$

In Stock, only 1 left!

0

88

Cub Cadet 736-0362

Washer, Flat

$4.49

$

In Stock, only 4 left!

0

89

Cub Cadet 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

90

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x 135

$4.99

$

In Stock, Qty 20+

0

91

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 736-0264

Washer, Flat, .330 x .630 x .063

$6.99

$

In Stock, only 2 left!

0
