LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Courage Engine - Oil Pan Lubrication Parts Diagram

42" Lawn Tractor

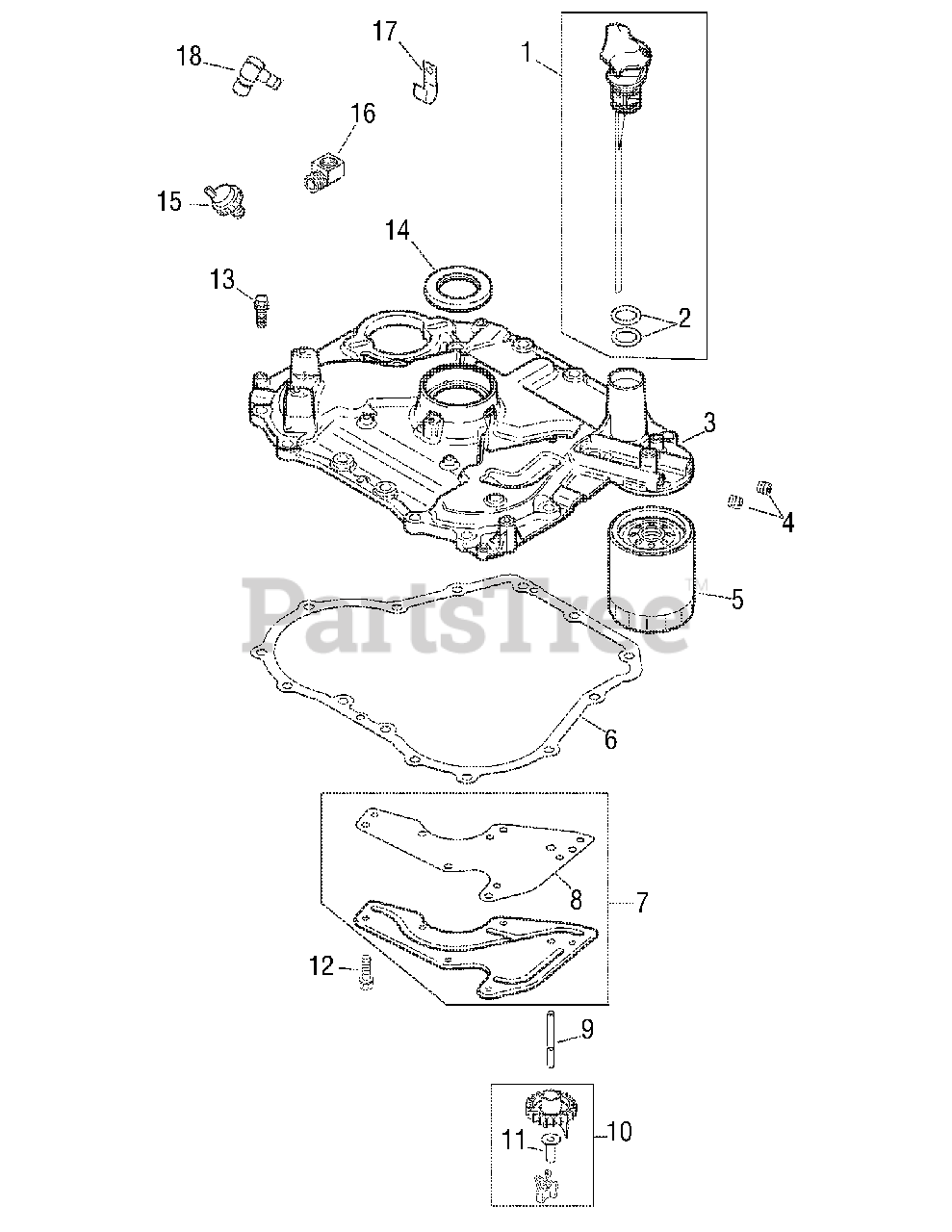

Courage Engine - Oil Pan Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-040-03-S

Kit, dipstick assembly (Includes 2)
(Superseded to KH-20-040-08-S)

$7.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-20-153-01-S

O-Ring, dipstick
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-009-03-S

Plate assembly, closure (Includes 4,10,11)
(Superseded to KH-20-009-10-S)

$194.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-25-139-60-S

Plug, pipe

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-050-08

Filter, oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-20-041-01-S

Gasket, closure plate
(Superseded to KH-20-041-21-S)

$

$

Not available

7

Cub Cadet KH-20-096-02-S

Kit, oil passage cover (Includes 8)

$

$

Not available

8

Cub Cadet KH-20-041-02-S

Gasket, oil passage

$3.49

$

In Stock, Qty 5

0

9

Cub Cadet KH-20-144-03-S

Shaft, governor gear

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-20-310-03-S

Kit, gear and weight assembly (Includes 11)
(Superseded to KH-25-310-09-S)

$13.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-12-380-01

Pin, governor regulating

$

$

Not available

12

Cub Cadet KH-M-545013-S

Screw, hex. flange M5x0.8x13

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-M-851030-S

Screw, hex. flange M8x1.25x30

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-032-01-S

Seal, oil
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 9

0

15

Cub Cadet KH-25-099-24-S

Switch, pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet KH-25-054-13-S

Elbow, street

$

$

Not available

17

Cub Cadet KH-231285-S

Clip, cable

$7.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-25-155-02

Connector, 90°

$

$

Not available
