LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Courage Engine - Ignition Electrical and Blower Housing Parts Diagram

42" Lawn Tractor

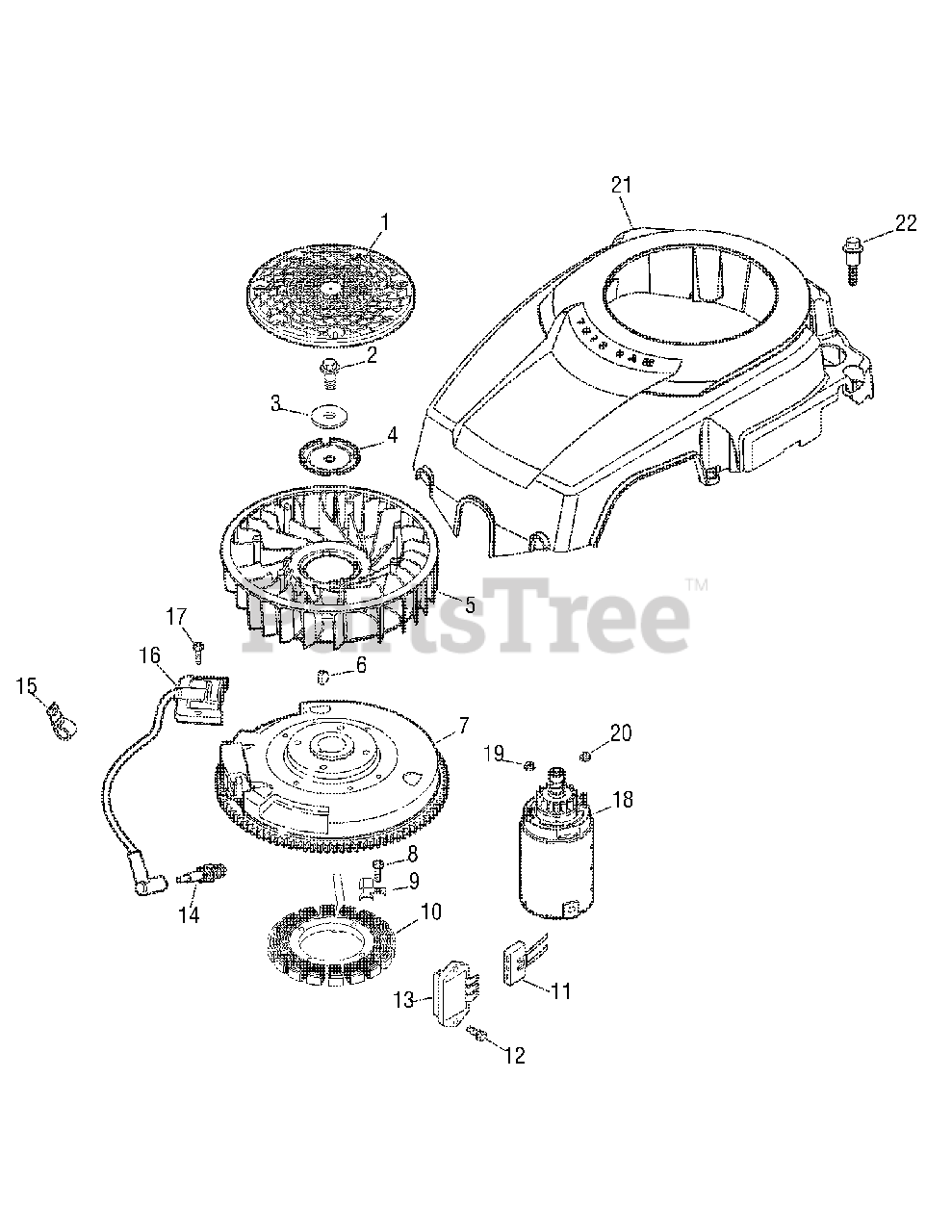

Courage Engine - Ignition Electrical and Blower Housing Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Screen, grass

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-12-086-14

Screw, hex. flange M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Washer, flat

$

$

Not available

4

Cub Cadet KH-20-146-02-S

Plate, fan mounting
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-X-42-15

Key, woodruff

$

$

Not available

7

Cub Cadet KH-20-025-05-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-086-17-S

Screw, hex. socket M5 x 0.8 x 25

$

$

Not available

9

Cub Cadet KH-20-154-02-S

Clip, wire

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

Kit, stator

$149.99

$

In Stock, Qty 15

0

11

Cub Cadet KH-236602-S

Connector, body (3 contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-545020-S

Screw, hex. flange M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

13

Cub Cadet KH-41-403-09

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

14

Cub Cadet 759-3336

Plug, spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-231285-S

Clip, cable

$7.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-20-584-01-S

Module, ignition
(Superseded to KH-20-584-03-S)

$32.99

$

In Stock, only 4 left!

0

17

Cub Cadet KH-M-561025-S

Screw, hex. socket M5 x 0.8 x 25

$2.49

$

In Stock, only 4 left!

0

18

Cub Cadet KH-20-098-06-S

Starter assembly, inertia drive
(Superseded to KH-20-098-11-S)

$110.99

$

In Stock, Qty 6

0

19

Cub Cadet KH-25-100-31-S

Nut, hex. serrated flange #10-24
(Superseded to KH-25-100-56-S)

$2.49

$

In Stock, Qty 10

0

20

Cub Cadet KH-12-100-07-S

Nut, hex. flange 1/4-20

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-20-027-06-S

Housing, blower
(Superseded to KH-20-027-13-S)

$47.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-20-086-06-S

Screw, shoulder M5 x 0.8 x 36

$3.99

$

In Stock, Qty 15

0

Cub Cadet KH-20-KH-237-01-S

Clamp, wire (clamps harness to blower housing) (not illustrated)

$

$

Not available

Cub Cadet KH-20-176-01-S

Harness, wiring (not illustrated)
(Superseded to KH-20-176-20-S)

$25.99

$

Usually ships in 2-5 days

0
