LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Courage Engine - Crankcase Parts Diagram

42" Lawn Tractor

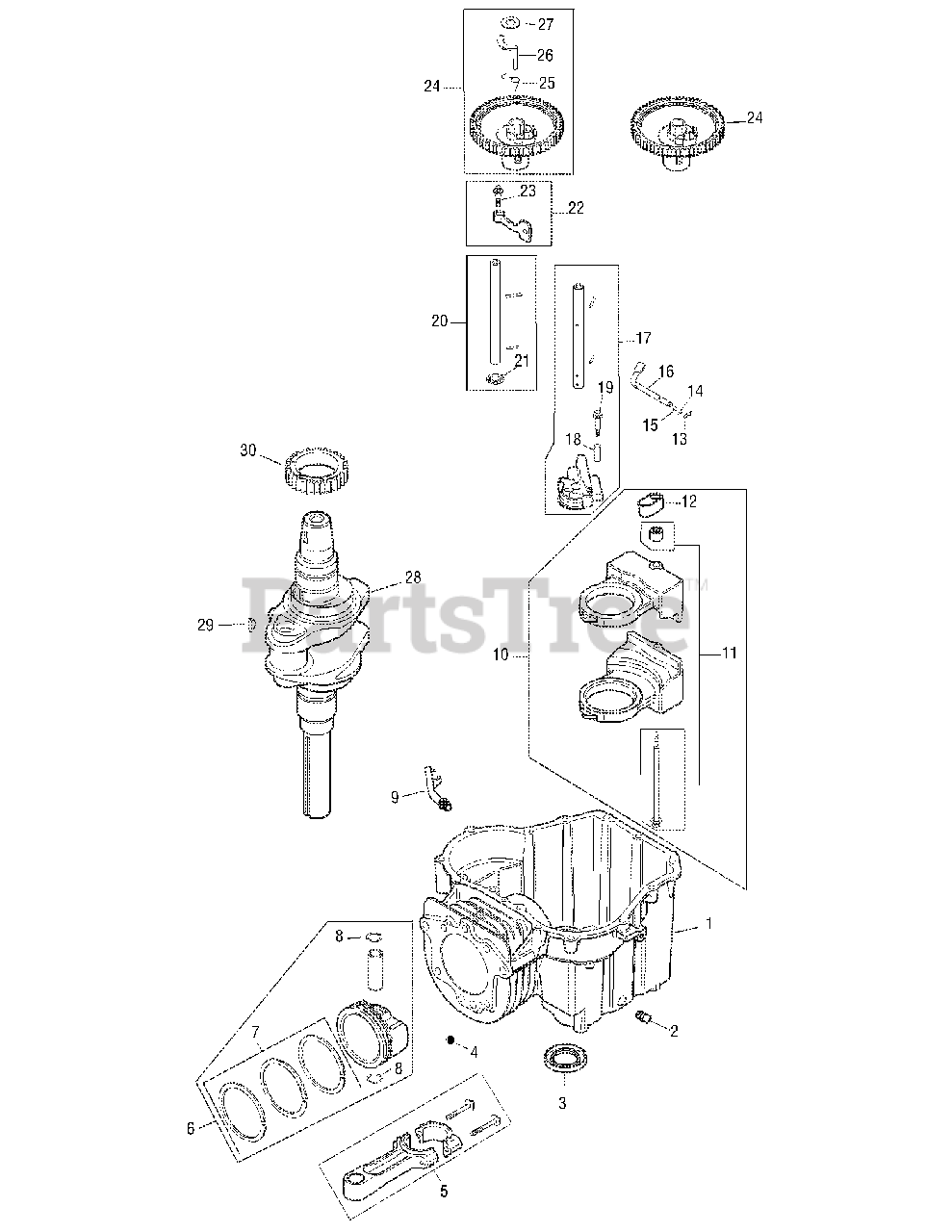

Courage Engine - Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-20-522-02

Short Block
(Superseded to KH-20-522-17)

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, sq. hd. pipe 3/8"

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-032-01-S

Seal, oil
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 13

0

4

Cub Cadet KH-20-194-02-S

Check Valve Ball

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-20-067-04-S

Rod, connecting
(Superseded to KH-20-067-06-S)

$

$

Not available

6

Cub Cadet KH-20-874-05-S

Piston w/ Ring Set (Includes 7,8)

$

$

Not available

7

Cub Cadet KH-20-108-2-S

Ring Set (89 mm)

$

$

Currently unavailable

8

Cub Cadet KH-20-018-04-S

Retainer, piston pin

$

$

Not available

9

Cub Cadet KH-20-123-02-S

Tube, drainback

$4.99

$

In Stock, Qty 10

0

10

Cub Cadet KH-20-755-04-S

Kit, balance weight

Note: NLA, order short block

$

$

Not available

11

Cub Cadet KH-20-086-16-S

Kit, screw/guide pin
(Superseded to KH-20-380-16-S)

$

$

Not available

12

Cub Cadet KH-20-423-02-S

Shoe, guide

$

$

Not available

13

Cub Cadet KH-12-154-05

Clip, hitch pin
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-M-631015

Washer, plain
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 8

0

15

Cub Cadet KH-X-25-102-S

Washer, plain

$2.49

$

In Stock, Qty 6

0

16

Cub Cadet KH-20-144-02-S

Shaft, governor cross

$14.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-20-393-02-S

Pump assembly, oil (Includes 17-19)

$41.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-20-112-02-S

Spacer, oil pump screw
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-20-086-13-S

Screw, oil pump
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-20-144-06-S

Shaft center, cam
(Superseded to KH-20-144-11-S)

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-468-01-S

Washer, thrust

$

$

Not available

22

Cub Cadet KH-20-090-01-S

Lever assembly, cam (2) (Includes 23)
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-20-086-06-S

Screw, shoulder

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet KH-20-010-04-S

Gear assembly, cam

$

$

Not available

25

Cub Cadet KH-20-089-06-S

Spring, ACR

$2.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-20-044-16-S

Weight, ACR
(Superseded to KH-20-044-32-S)

$12.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-20-468-03-S

Washer, thrust - ACR

$2.49

$

In Stock, Qty 10

0

28

Cub Cadet KH-20-014-20-S

Crankshaft (Includes ref 2)

$

$

Not available

29

Cub Cadet KH-X-42-15

Key 3/16"

$

$

Not available

30

Cub Cadet KH-20-043-12-S

Gear, crankshaft

$

$

Not available

Cub Cadet KH-SV540-0020

Engine Assembly
(Superseded to KH-SV540-3219)

$

$

Not available
