LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Command Engine - Cylinder Head & Valves Parts Diagram

42" Lawn Tractor

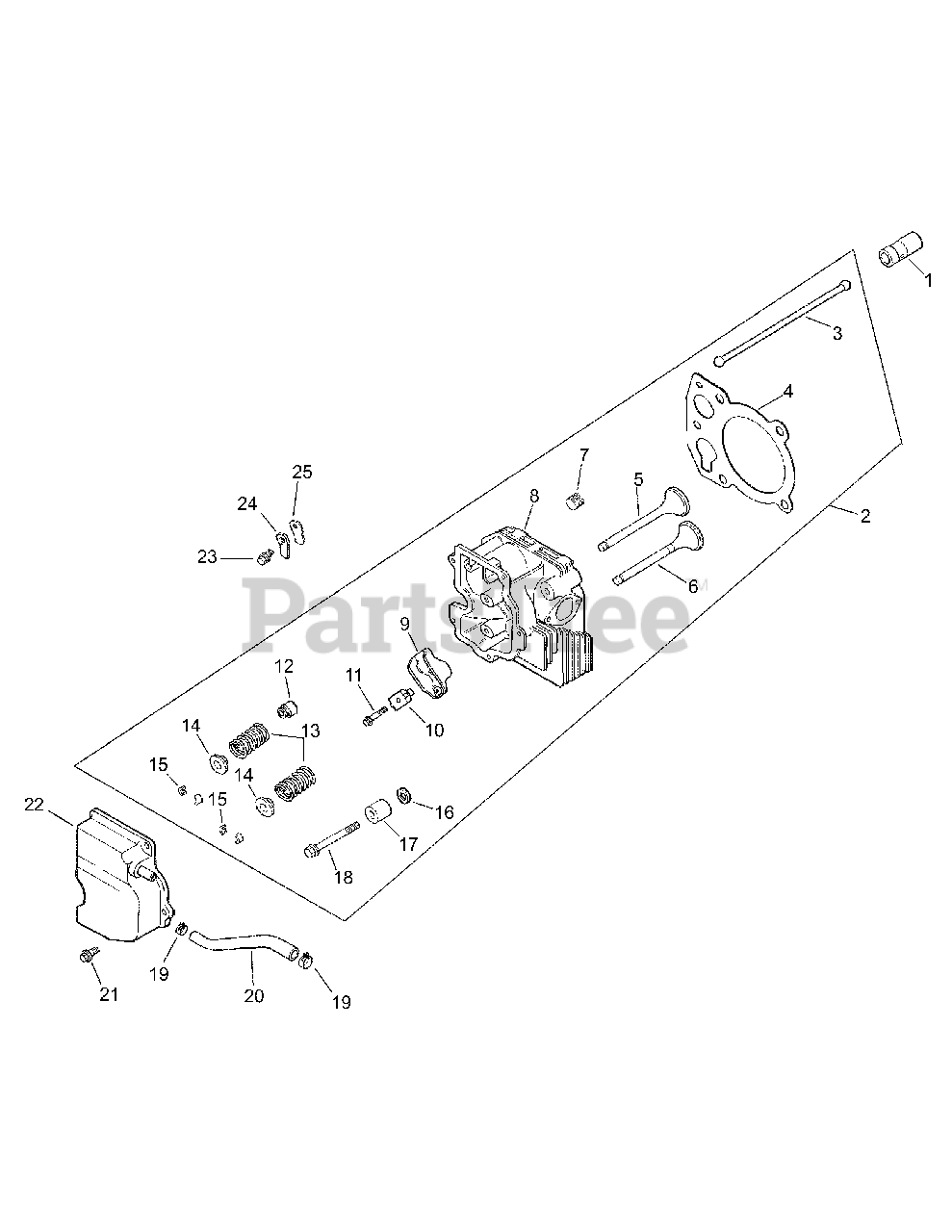

Command Engine - Cylinder Head & Valves Parts Diagram

  • Title

1

Cub Cadet KH-25-351-01-S

Lifter, Valve

$

$

Currently unavailable

2

Cub Cadet KH-12-755-94-S

Kit, Cylinder Head

Note: (Incl. 3-17, Carburetor Gasket (2), Air Cleaner Base Gasket, Exhaust Manifold Gasket)

$

$

Not available

3

Cub Cadet KH-12-411-03-S

Rod, Push
(Superseded to KH-12-411-05-S)

$

$

Not available

4

Cub Cadet KH-12-041-10

Gasket, Cylinder Head

$

$

Not available

5

Cub Cadet KH-12-017-01

Valve, Intake (Std.)

$

$

Not available

6

Cub Cadet KH-12-016-01

Valve, Exhaust (Std.)

$

$

Not available

7

Cub Cadet KH-25-139-60-S

Plug, Allen Hd. 1/8" Pipe

$3.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-318-36-S

Cylinder Head

$

$

Not available

9

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

10

Cub Cadet KH-12-599-03

Pivot, Rocker Arm

$

$

Not available

11

Cub Cadet KH-M-640034-S

Screw, Hex. Flange M6 x 1.0 x 34

$2.49

$

In Stock, Qty 18

0

12

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 18

0

13

Cub Cadet KH-12-089-34-S

Spring, Valve

$10.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

15

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-12-468-05

Washer, Plain 13/32"

$

$

Not available

17

Cub Cadet KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

18

Cub Cadet KH-12-086-15

Screw, Hex. Flange M10 x 1.5 x 81
(Superseded to KH-20-086-02-S)

$3.99

$

In Stock, Qty 12

0

19

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet KH-12-326-03

Hose, Breather

$

$

Not available

21

Cub Cadet KH-M-645020-S

Screw, Hex. Flange M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-12-096-07

Cover, Valve W/nipple
(Superseded to KH-12-755-102-S)

$86.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-M-545010

Screw, Hex. Flange M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

24

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, only 4 left!

0

25

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake (.25)

Note: Not shown

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust (.25)

Note: Not shown

$

$

Not available

Cub Cadet KH-12-041-01

Gasket, Carburetor

Note: Not shown

$2.49

$

In Stock, Qty 14

0

Cub Cadet KH-12-041-02

Gasket, Air Cleaner Base

Note: Not shown

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-12-041-03

Gasket, Exhaust Manifold

Note: Not shown

$

$

Not available
