LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Command Engine - Controls Parts Diagram

42" Lawn Tractor

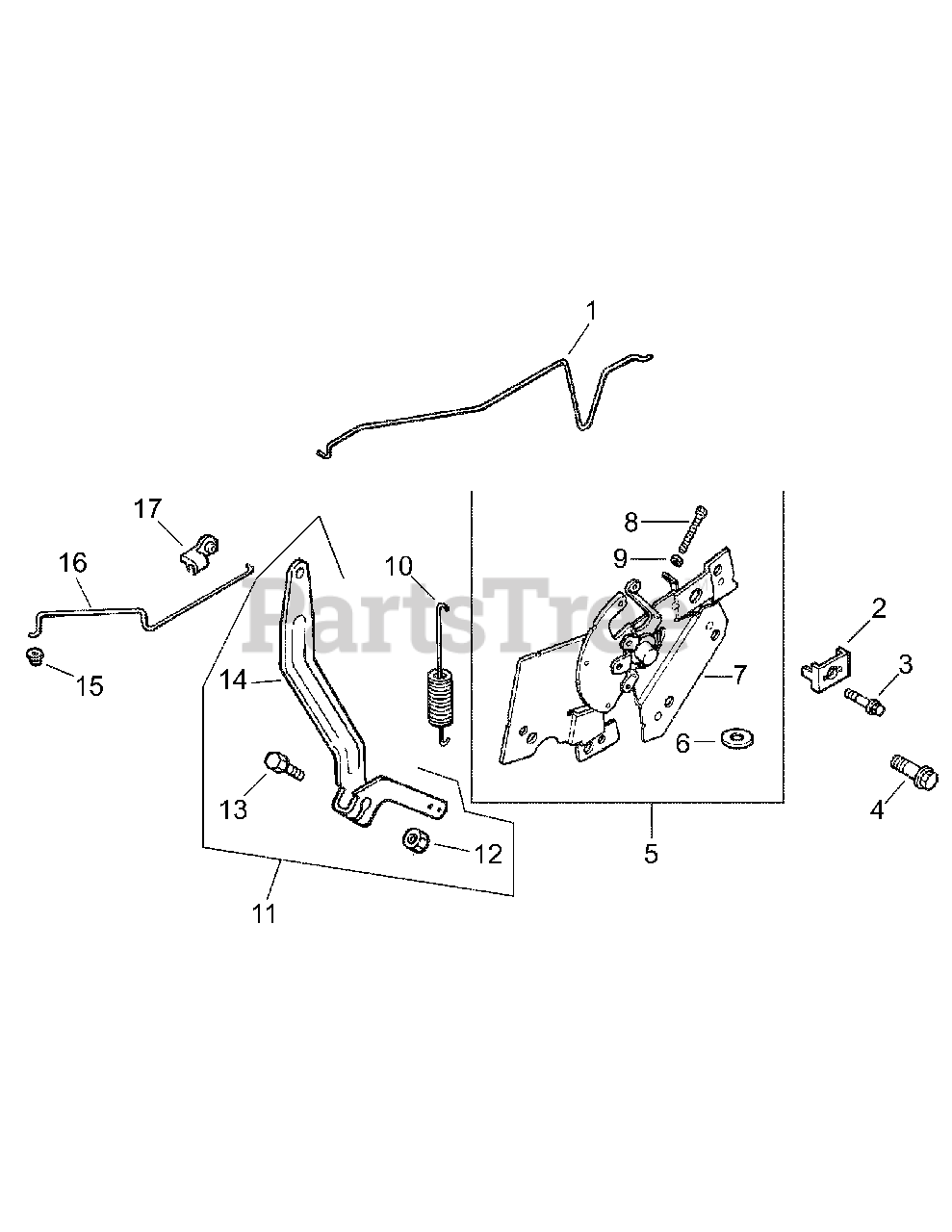

Command Engine - Controls Parts Diagram

  • Title

1

Cub Cadet KH-12-079-11-S

Linkage, Choke

$

$

Not available

2

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-M-545016-S

Screw, Hex. Flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-664020-S

Screw, Lobed Socket M6 x 1.0 x 20
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-536-02

Control, Speed Assembly (Incl. 6-9)

$

$

Not available

6

Cub Cadet KH-230293

Spacer, Shim .005

$

$

Not available

7

Cub Cadet KH-12-126-75-S

Bracket, Control

$

$

Not available

8

Cub Cadet KH-M-401030

Screw, Hex. Flange M4 x 0.7 x 30

$

$

Not available

9

Cub Cadet KH-M-446030-S

Nut, Hex. M4 x 0.7

$2.49

$

In Stock, only 4 left!

0

10

Cub Cadet KH-52-089-07

Spring, Governor

$

$

Not available

11

Cub Cadet KH-12-755-83

Kit, Governor Lever (Includes 12-14)

$

$

Not available

12

Cub Cadet KH-12-100-07

Nut, Hex. Flange M6 x 1.0

$

$

Not available

13

Cub Cadet KH-52-211-04

Screw, Hex. Flange M6 x 1.0 x 25

$

$

Not available

14

Cub Cadet KH-12-090-28

Lever, Governor

$

$

Not available

15

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-12-079-10-S

Linkage, Throttle

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-25-158-11

Bushing, Linkage Retaining

$

$

Not available
