LT 1040 (13AX10CG709) - Cub Cadet 42" Lawn Tractor Command Engine - Blower Housing Parts Diagram

42" Lawn Tractor

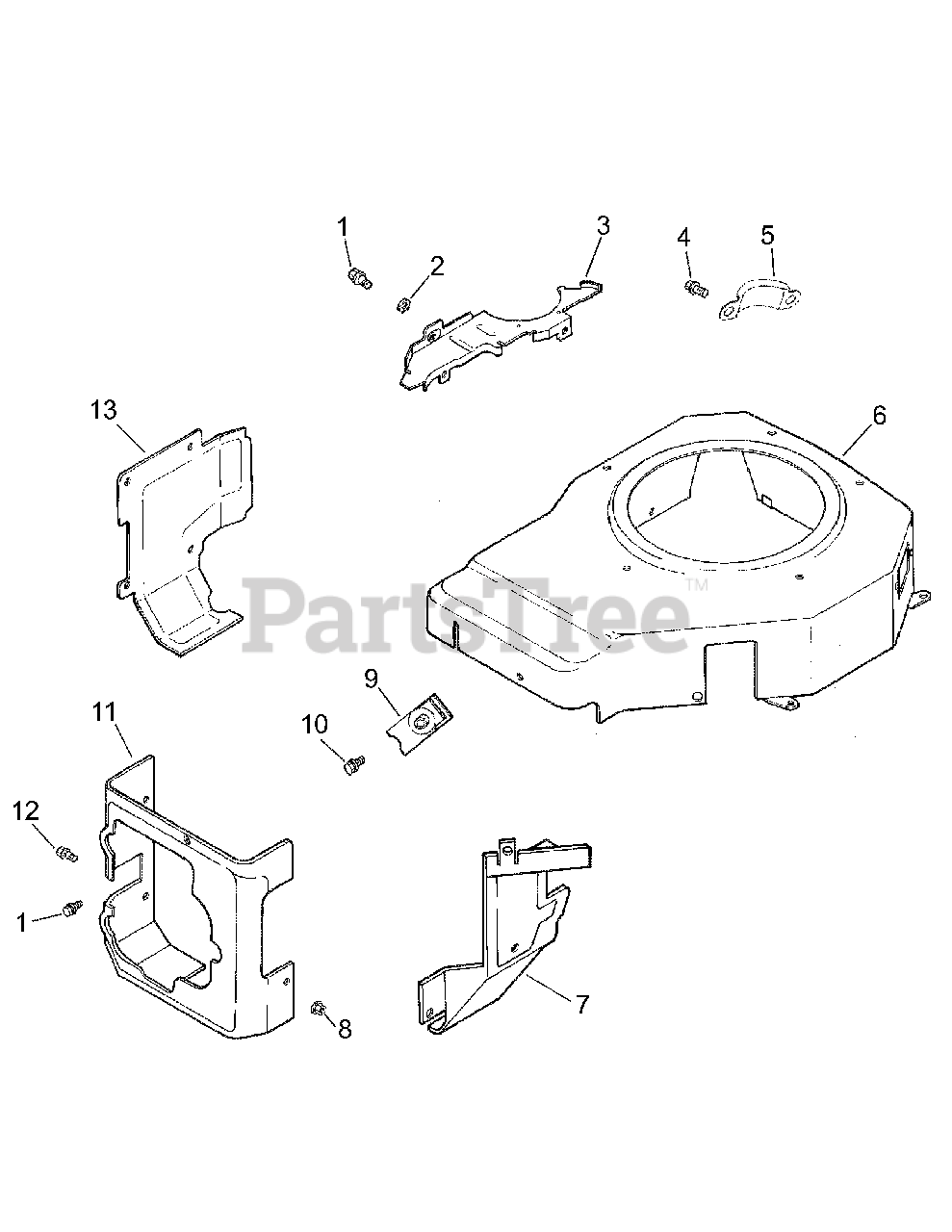

Command Engine - Blower Housing Parts Diagram

  • Title

1

Cub Cadet KH-M-545010

Screw, Hex. Flange M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

2

Cub Cadet KH-24-468-10

Washer, Plain 1/4"

$

$

Not available

3

Cub Cadet KH-12-146-07

Plate, Blower Housing

$

$

Not available

4

Cub Cadet KH-M-550010-S

Screw, Hex. Flange M5 x 0.8 x 10

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-096-05

Cover, Pinion

$

$

Not available

6

Cub Cadet KH-12-027-55-S

Housing, Blower
(Superseded to KH-12-027-96-S)

$

$

Not available

7

Cub Cadet KH-12-063-18-S

Baffle, Intake Side

$

$

Not available

8

Cub Cadet KH-M-541050-S

Nut, Hex. Flange M5 x 0.8

$2.99

$

In Stock, Qty 10

0

9

Cub Cadet KH-25-154-02

Clip, Mounting

$

$

Not available

10

Cub Cadet KH-M-645016-S

Screw, Hex. Flange M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

11

Cub Cadet KH-12-063-20-S

Baffle, Cylinder Head

$

$

Not available

12

Cub Cadet KH-12-086-37

Screw, Captive Washer M5 x 0.8 x 20

$

$

Not available

13

Cub Cadet KH-12-063-19-S

Baffle, Cylinder

$

$

Not available

Cub Cadet KH-24-086-18

Screw, Phillips Hd. 11-16 x 7/8"

Note: Not shown

$

$

Not available

Cub Cadet KH-X-25-92

Screw, Phillips Hd. 11-16 x 7/8"

Note: Not shown

$

$

Not available
