LT 1024 (13AR11CP712) - Cub Cadet 50" Lawn Tractor Steering Parts Diagram

50" Lawn Tractor

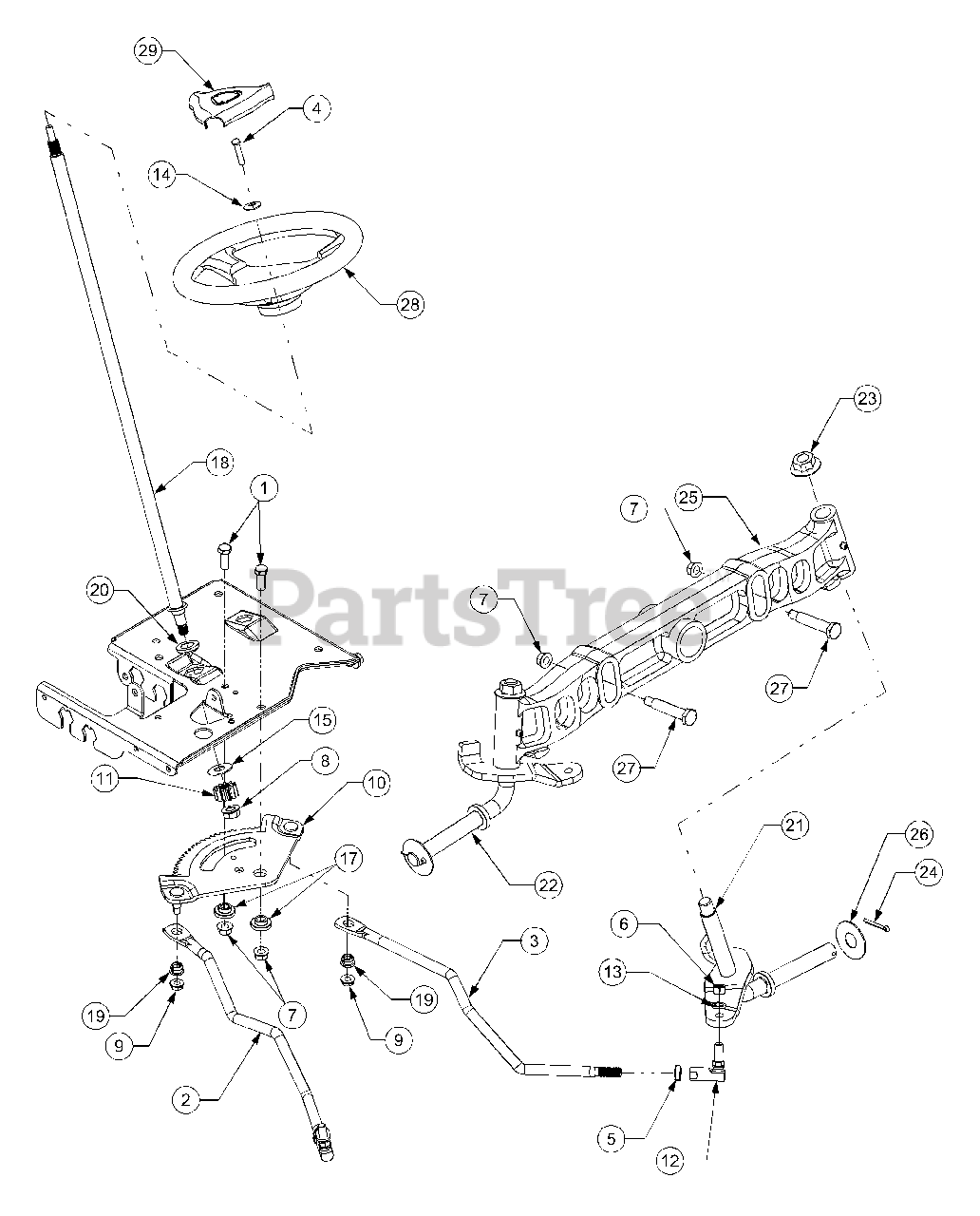

Steering Parts Diagram

  • Title

1

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1408

Link, Drag, RH

$

$

Not available

3

Cub Cadet 711-1409A

Link, Drag, LH

$

$

Not available

4

Cub Cadet 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

7

Cub Cadet 712-0130

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0429

Nut, Nylon Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0610

Ball Joint, 7/16-20

$

$

Not available

13

Cub Cadet 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 736-3084

Washer, Flat, .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 737-3007

Grease, Alvania Ep 2

$

$

Currently unavailable

17

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 19

0

18

Cub Cadet 759-04186

Shaft, Steering, .625 OD x 25.00 Lg

$64.99

$

In Stock, only 1 left!

0

19

Cub Cadet 741-0475

Bushing, Plastic, .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0656

Bearing, Hex Flange, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 683-04101

Axle Assembly, LH .750 Dia
(Superseded to 683-04101-0716)

Variations

Cub Cadet 683-04101-0716

Steering Axle, LH - CUB YELLOW-99 (0716)

$79.99

$

In Stock, only 4 left!

0

$79.99

$

In Stock, only 4 left!

0

22

Cub Cadet 683-04102

Axle Assembly, RH .750 Dia
(Superseded to 683-04102-0716)

Variations

Cub Cadet 683-04102-0716

Steering Axle, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

Cub Cadet 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0162

Pin, Cot, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 719-0525C

Axle, Pivot, Cast .750 Dia
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 738-1011

Spacer, Shoulder, .500 x 2.230, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

28

Cub Cadet 631-04008

Wheel, Steering, Three Spoke
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

29

Cub Cadet 731-04532

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0
