LT 1024 (13AR11CP712) - Cub Cadet 50" Lawn Tractor Fender & Fuel Tank Parts Diagram

50" Lawn Tractor

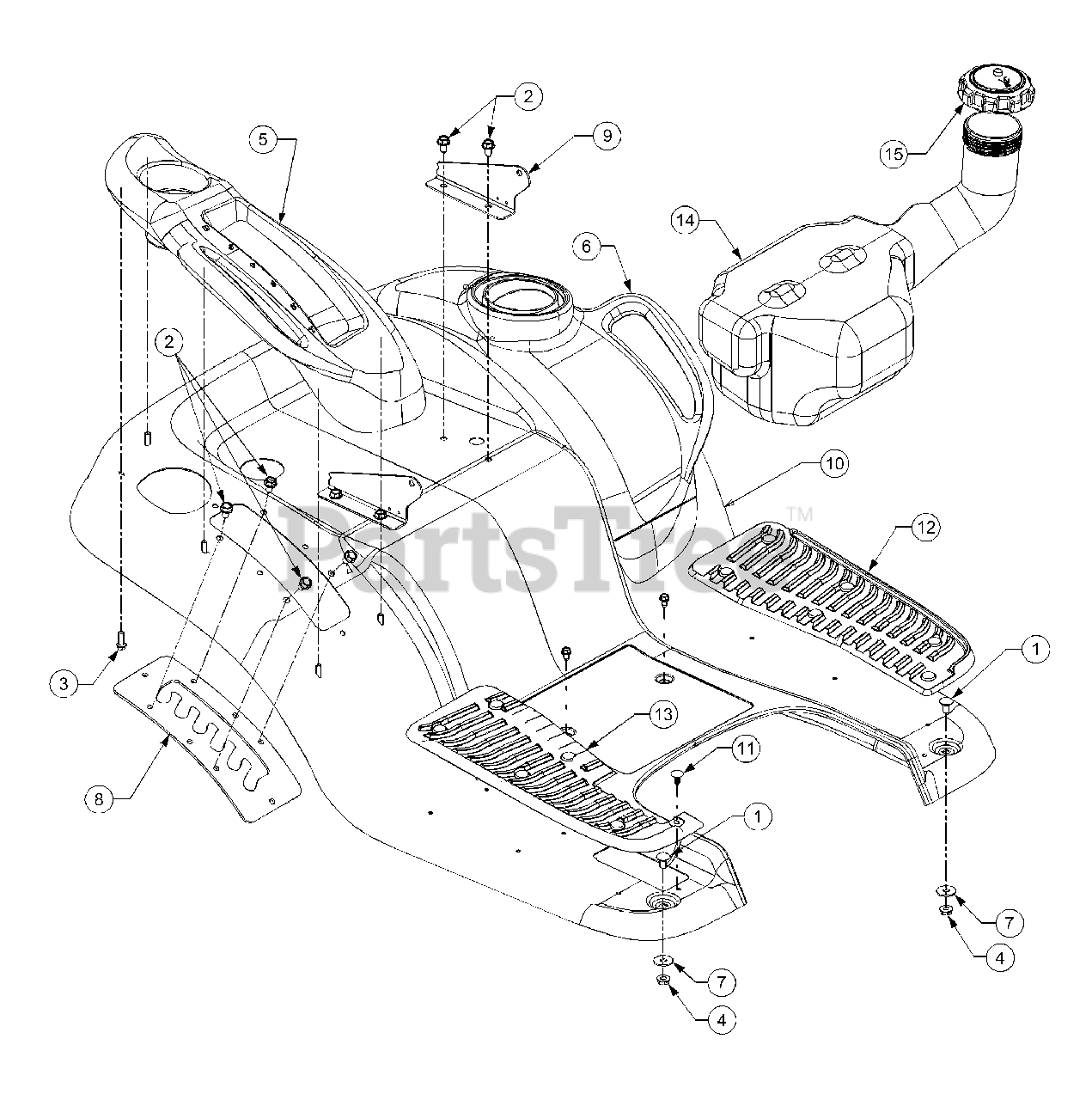

Fender & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 710-0260A

Bolt, Carriage, 5/16-18 x .62 Lg

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0429

Nut, Nylon Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 731-2616A

Cover, Fender, RH
(Superseded to 931-2616A)

$

$

Not available

6

Cub Cadet 731-2617

Cover, Fender, LH

$97.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-3078

Washer, Flat, .349 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 783-0677

Bracket, Lift, Adjustment
(Superseded to 783-0677B-0637)

Variations

Cub Cadet 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 783-0715B

Bracket, Seat, Mount
(Superseded to 783-1489D)

Variations

Cub Cadet 783-0715B-0637

USE 783-1489D BRACKET-MOUNT S - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 783-04398

Fender
(Superseded to 753-05187)

Variations

Cub Cadet 783-04398-0716

USE 753-05187 FENDER KIT-SEAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 735-0697

Pad, Foot, LH

$

$

Not available

13

Cub Cadet 735-0698A

Pad, Foot, RH
(Superseded to 735-0698B)

$

$

Not available

14

Cub Cadet 751-0819A

Tank, Fuel
(Superseded to 951-0819B)

$237.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0
