LT 1024 (13AR11CP712) - Cub Cadet 50" Lawn Tractor Engine Accessories Parts Diagram

50" Lawn Tractor

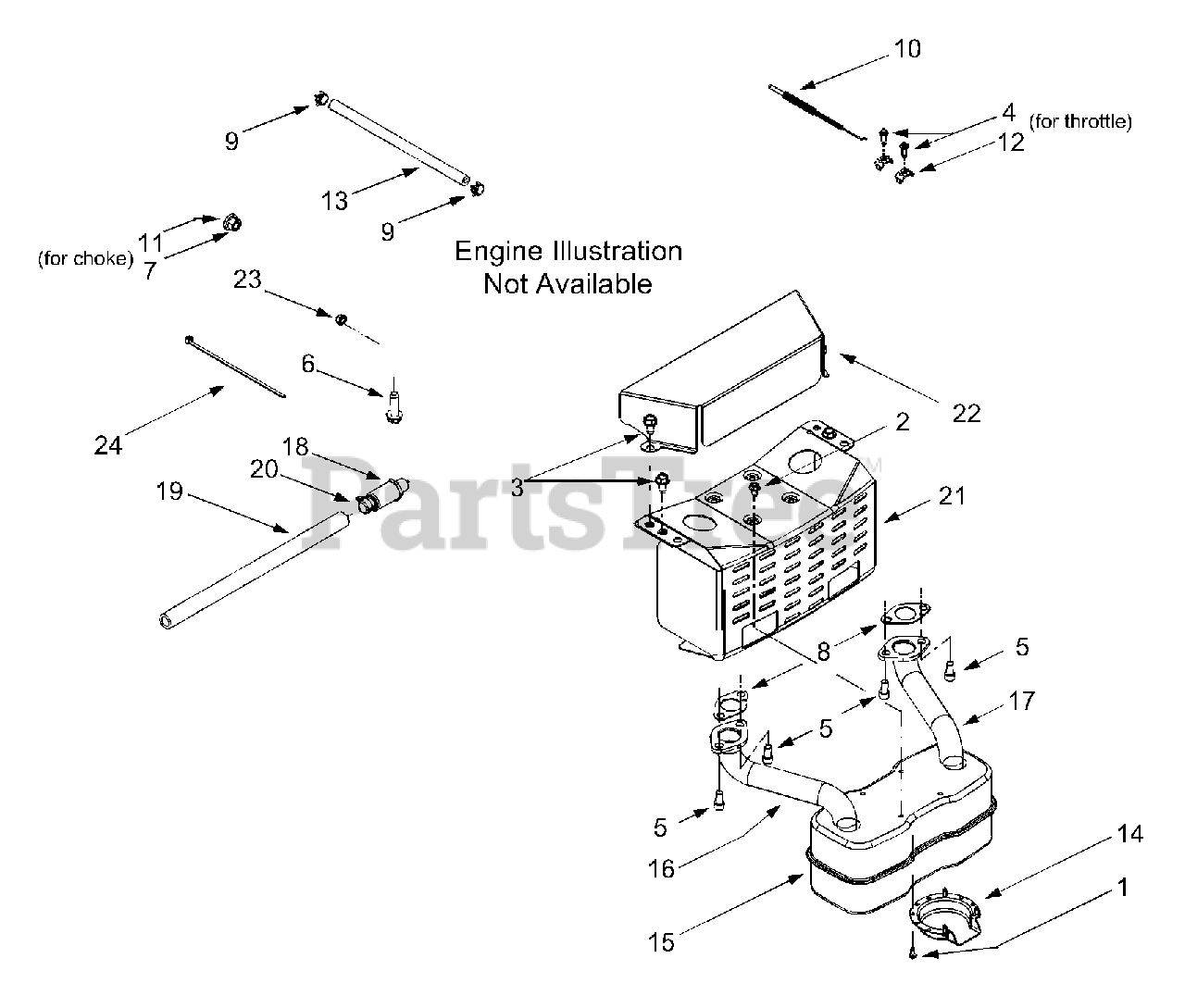

Engine Accessories Parts Diagram

  • Title
1

Cub Cadet 710-0227

Self-tapping Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1237

Screw, #10-32 x.625 (OHV V-Twin)

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1314A

Socket Cap Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 721-0460

Exhaust Gasket (OHV V-Twin)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

Cub Cadet 746-1086

Throttle Cable ( OHV V-Twin)
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751B221535

Casing Clamp (OHV V-Twin)

$10.99

$

In Stock, Qty 10

0

13

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Cub Cadet 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

15

Cub Cadet 751-0616A

Muffler, Twin Inlet ( OHV V-Twin)
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

Cub Cadet 751-0650A

RH Exhaust Pipe (OHV V-Twin)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

17

Cub Cadet 751-0651A

LH Exhaust Pipe (OHV V-Twin)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

18

Cub Cadet 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

19

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

Cub Cadet 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

Cub Cadet 783-0615C

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

Cub Cadet 783-0625C

Engine Heat Shield (OHV V-Twin)

$111.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20 (OHV V-Twin)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
