LT 1024 (13AR11CP712) - Cub Cadet 50" Lawn Tractor Electrical System Parts Diagram

50" Lawn Tractor

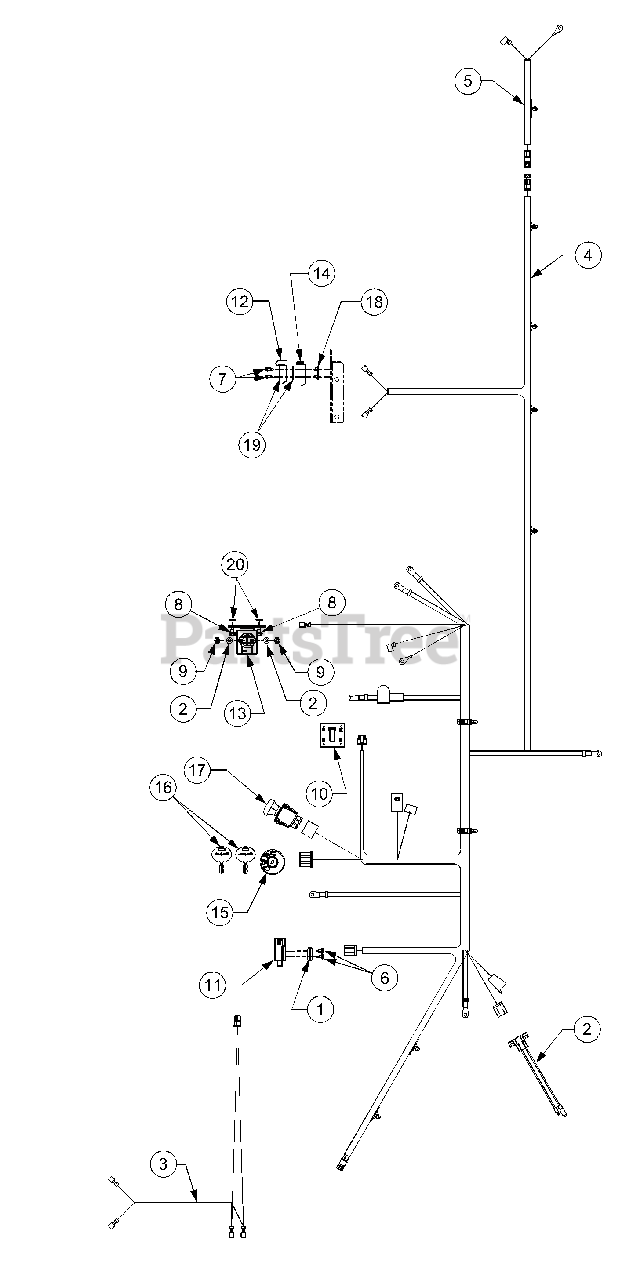

Electrical System Parts Diagram

  • Title
1

Cub Cadet 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 629-04083

Harness Assembly, Headlight
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 629-04079

Harness Assembly
(Superseded to 629P04079A)

$229.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 629-04082

Harness Assembly, Safety, Reverse
(Superseded to 929-04082)

$

$

Not available

6

Cub Cadet 710-0224

Screw, Hx. Wash. Hd. Tapp, 10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0227

Screw, Hx. Wash. Hd. Tapp, 8-18 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0642

Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet 725-04022

Indicator/ Meter Hour
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

11

Cub Cadet 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

12

Cub Cadet 725-1303

Switch, Outer Seat Spring
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

13

Cub Cadet 725-1426

Solenoid, Starter, 12V
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-1439

Switch, Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

15

Cub Cadet 725-1741

Switch, Key, 4-Position
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 6

0

16

Cub Cadet 725-2054

Key, Switch, Plastic
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0

17

Cub Cadet 725-04175

Switch, Electric PTO, Yellow Knob
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

18

Cub Cadet 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

19

Cub Cadet 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

20

Cub Cadet 736-0222

Washer, Lock, Ext 1/4

$5.99

$

In Stock, only 3 left!

0
