LT 1024 (13AR11CP712) - Cub Cadet 50" Lawn Tractor Adjustable Seat Parts Diagram

50" Lawn Tractor

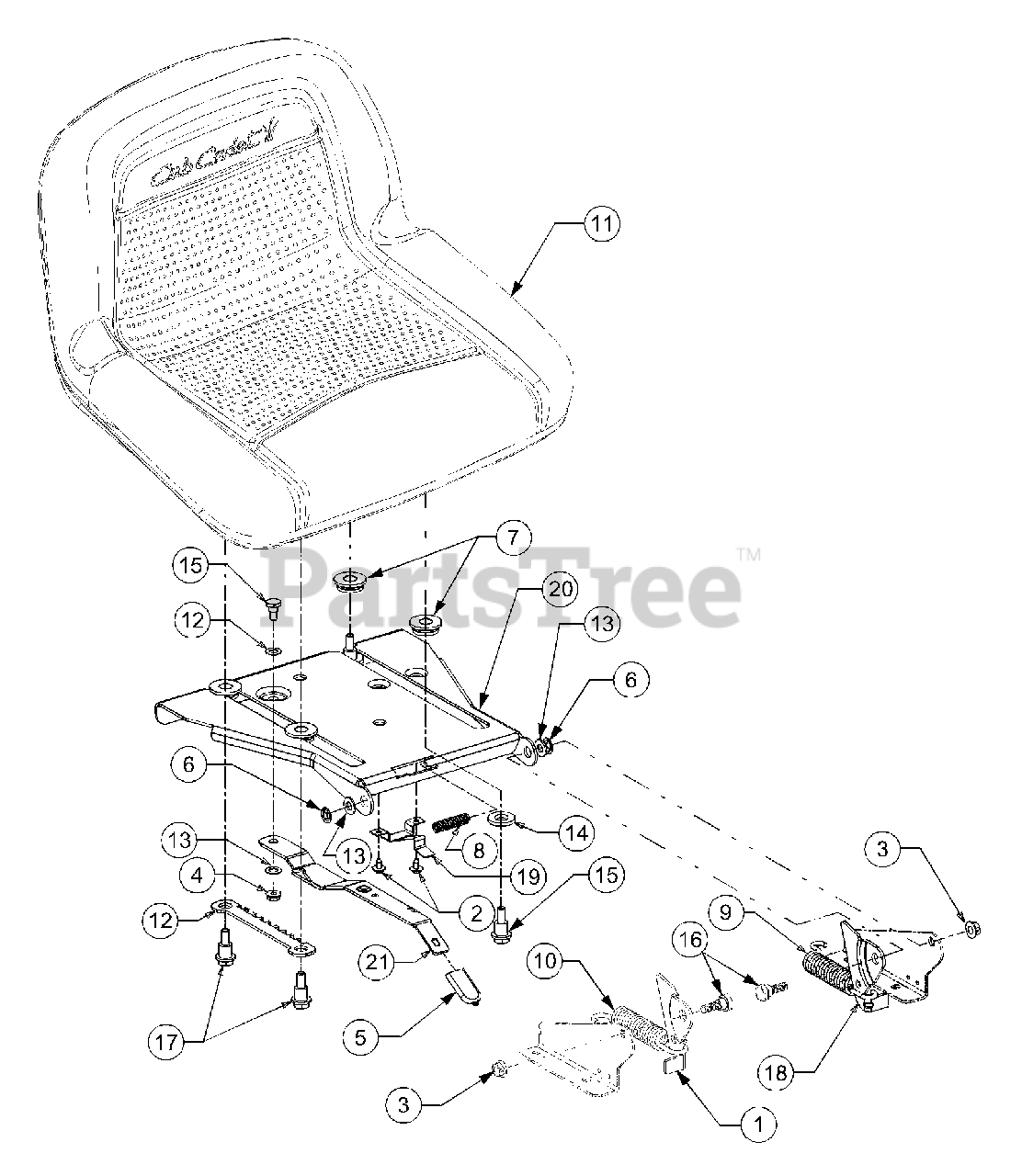

Adjustable Seat Parts Diagram

1

Cub Cadet 17239C

Bracket, Seat Lift

$

$

Not available

2

Cub Cadet 710-1268

Screw, #10-16, 0.375

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0429

Nut, Nylon Lock, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0324

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 11

0

5

Cub Cadet 720-0433

Grip, Seat, Adjustment (Yellow)

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-0201

Nut, Speed, .3125 ID

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-04074

Spacer, Seat, Adjustment

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 732-0499

Spring, Compression .41 OD x 1.50

$9.49

$

In Stock, Qty 8

0

9

Cub Cadet 732-1027

Spring, Extension, .80 Dia x 4.2 Lg.

$

$

Not available

10

Cub Cadet 732-1175

Spring, Extension, .815 Dia x 4.4 Lg.

$

$

Not available

11

Cub Cadet 757-04004

Seat, Mid-back, V-1480
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

12

Cub Cadet 783-0753

Selector, Seat, Adjustment

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 9

0

15

Cub Cadet 738-0137A

Screw, Shoulder, .340 x .285, 1/4-20

$10.99

$

In Stock, Qty 10

0

16

Cub Cadet 738-0296

Shoulder, Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0966

Screw, Shoulder, .50 x.925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 783-0209C

Bracket, Seat Lift
(Superseded to 783-0209D)

$16.99

$

In Stock, Qty 5

0

19

Cub Cadet 783-0611

Stop, Seat, Adjustment

$10.99

$

In Stock, only 3 left!

0

20

Cub Cadet 783-0738A-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)
(Superseded to 783-0738D)

Variations

$

$

Not available

21

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)
(Superseded to 783-0739A-0637)

Variations

$25.99

$

Usually ships in 3-6 days

0
