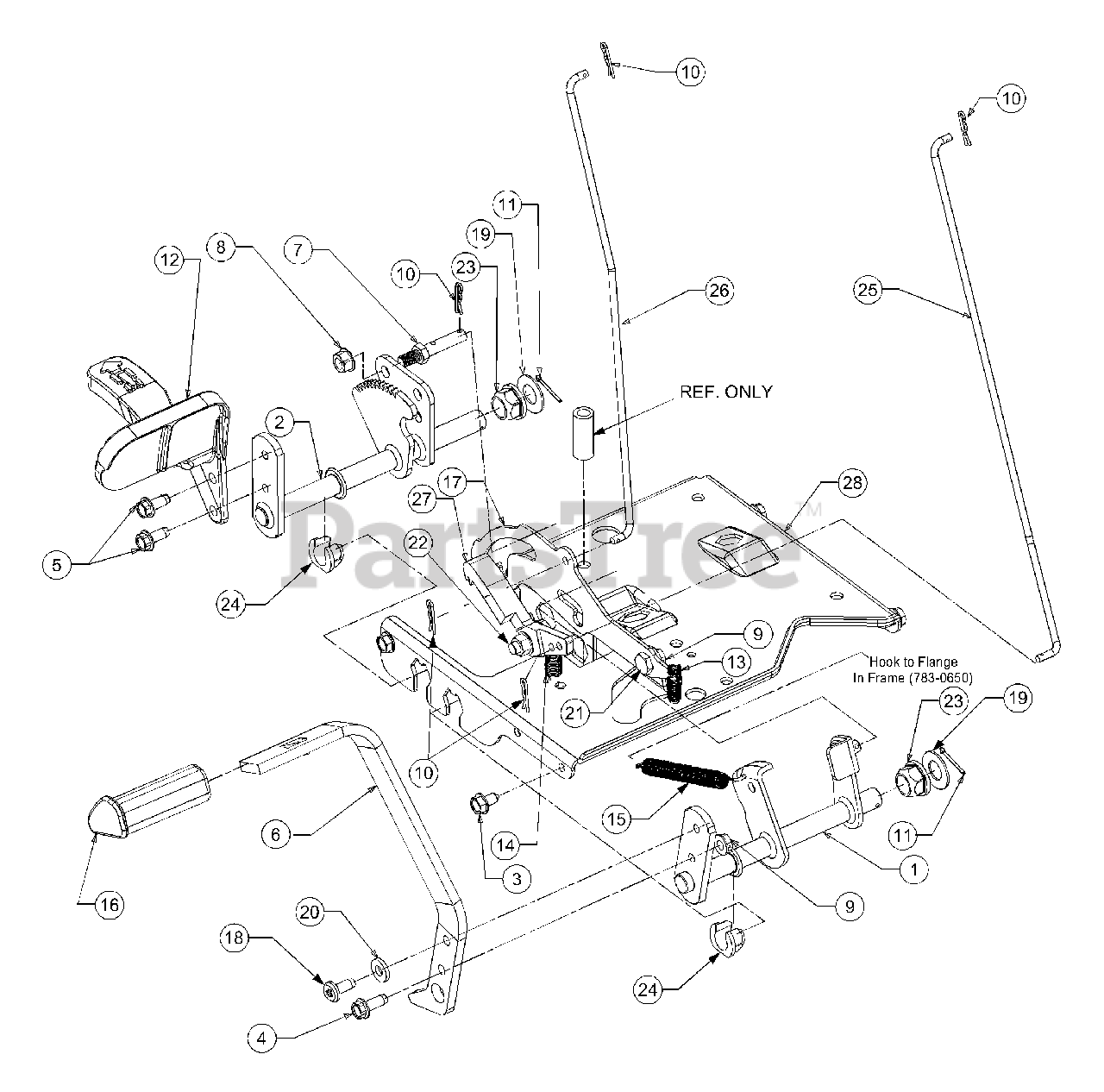

LT 1024 (13AR11CP710) - Cub Cadet 50" Lawn Tractor Pedal Assembly Parts Diagram

50" Lawn Tractor

Pedal Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0031B

Control Assembly, Brake
(Superseded to 753-05606)

Variations

Cub Cadet 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 647-0049A

Control Assembly, Hydro
(Superseded to 647-0049A-0637)

Variations

Cub Cadet 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0726

Screw, Self-tapping, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0650

Screw, Self-tapping, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 783-0773A

Pedal, Brake
(Superseded to 753-05606)

Variations

Cub Cadet 783-0773A-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0773A-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0773A-4008

Service Kit - WINE RED (4008)

$

$

Not available

$

$

7

Cub Cadet 711-1363

Pin, 3/8-16, 3/8 x 2.43 Lg

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0130

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 712-0429

Nut, Nylon Lock, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

12

Cub Cadet 719-0584A

Pedal, Hydro Control
(Superseded to 719-0584B-0637)

$60.99

$

In Stock, only 1 left!

0

13

Cub Cadet 732-0335

Spring, Compression, .405 x 1.17

$

$

Not available

14

Cub Cadet 732-0955

Spring, Extension, .50 OD x 1.41 Lg

$9.99

$

In Stock, only 1 left!

0

15

Cub Cadet 732-0963

Spring, Extension, .50 Dia x 6.37 Lg

$9.99

$

In Stock, only 4 left!

0

16

Cub Cadet 735-3049

Pad, Brake, Control
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

17

Cub Cadet 783-0663C

Bracket, Lockout, Hydro
(Superseded to 783-0663E)

$17.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1611B

Screw, Torx Hd. Tapp. 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0187

Washer, Flat .64 ID x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3008

Washer, Flat, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-0155

Shoulder, Screw .437 x 1.62 Lg
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 738-0507B

Screw, Shoulder, .500 Dia x .434

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

24

Cub Cadet 741-3065B

Bearing, Hex Flange, .628 ID, Split

$8.49

$

In Stock, Qty 11

0

25

Cub Cadet 747-04096

Rod, Control, Cruise

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-04093

Rod, Control, Brake Lock
(Superseded to 747-04093A)

$

$

Not available

27

Cub Cadet 748-04039B

Latch, Cruise
(Superseded to 748-04039C)

$

$

Not available

28

Cub Cadet 783-0653F

Bracket, Support, Stearing
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!
