LT 1022 (13AB11CH710) - Cub Cadet 46" Lawn Tractor Drive System Parts Diagram

46" Lawn Tractor

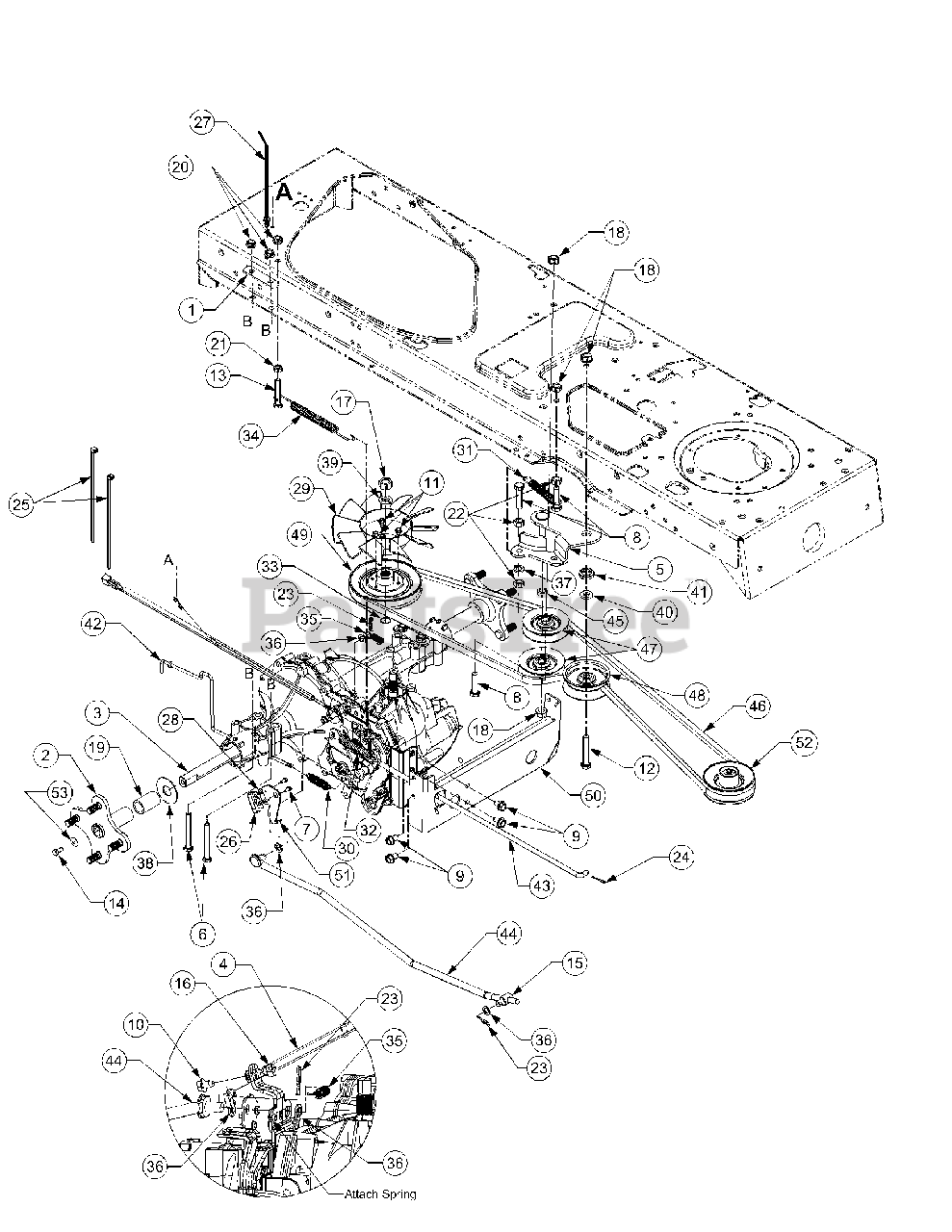

Drive System Parts Diagram

  • Title

1

Cub Cadet 17840

Bracket, Mounting, Transaxle
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-04154

Hub Assembly, Wheel (Double "D")
(Superseded to 918-04228A)

$50.99

$

In Stock, Qty 5

0

Cub Cadet 618-0365

Hub Assembly, Wheel (Spline)
(Superseded to 618P0579B)

Note: (Not Shone)

$77.99

$

In Stock, only 3 left!

0

3

Cub Cadet 618-0319

Transmission, Hydrostatic (Uses Double "D" axle)
(Superseded to 918-0319)

$

$

Not available

Cub Cadet 618-0667

Transmission, Hydrostatic (Uses Spline Axle, Used in Production Approx. Feb 12, 2004 through Feb 18, 2004)
(Superseded to 918-0667A)

Note: Not Shown

$

$

Not available

4

Cub Cadet 629-0949A

Harness Assembly, Ground & Reverse
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 783-04442

Bracket Assembly, Idler, Center Dbl

Variations

Cub Cadet 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1266

Hex Cap Screw, 5/16-18,3.5, Gr5

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0344

Hex Cap Screw, 3/8-16, 1.50, Gr5

$5.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Screw, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3007

Screw, #12-24, 0.375

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3103

Hex Cap Screw, 5/16-18, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0627

Hex Cap Screw, 5/16-24 x .750 (Use with Double "D" hub

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-1329

Nut, 3/4, Grb, Hx (Use with Spline Hub)

Note: Not Shown

$12.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375 Dia
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0291

Nut, Hex Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 712-0333

Nut, Hex, 1/2-20, Gr2
(Superseded to 912-0333)

$

$

Not available

18

Cub Cadet 712-0130

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

19

Cub Cadet 731-04675

Sleeve, 1.5"

$

$

Not available

20

Cub Cadet 712-0429

Nut, Nylon Lock, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr8

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, Qty 11

0

27

Cub Cadet 726-0154

Tie, Cable, Push Mount 7.5 Lg
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-0320

Plate, Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

29

Cub Cadet 731-1449A

Fan, Blade, 10"
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

30

Cub Cadet 732-0209

Spring, .48 OD x 2.03 Extension
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-0429A

Spring, Extension, .50 Dia x 3.97 Lg
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 732-0716

Spring, Extension, .59 OD x 4.00 Lg
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-0729

Ring, Wire

$4.99

$

In Stock, only 4 left!

0

34

Cub Cadet 732-0994

Spring, Extension, .500 Dia x 7.0 Lg

$10.99

$

In Stock, Qty 9

0

35

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 736-0140

Washer, Flat, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

37

Cub Cadet 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 6

0

39

Cub Cadet 736-0921

Washer, Lock, 1/2, Regular Duty

$4.49

$

In Stock, Qty 6

0

40

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 Hdn

$4.99

$

In Stock, only 1 left!

0

41

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-1149

Rod, Hydro Bypass

$24.99

$

In Stock, only 1 left!

0

43

Cub Cadet 747-1150

Rod, Brake, Hydro

$

$

Not available

44

Cub Cadet 747-1151

Rod, Control, Hydro

$

$

Not available

45

Cub Cadet 750-0535

Spacer, .376 ID x .625 OD x .22
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 754-0640

Belt, V Type, Poly Ax 79.2 Lg
(Superseded to 954-0640)

Note: (Use w/ 756-1166 Input Pulley) S/N 1A174H20368 & before

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 754-0461

Belt, V Type, Poly Ax 78 Lg
(Superseded to 954-0461)

Note: (Use w/ 756-04111 Input Pulley) S/N 1A174H20369 & after

$59.99

$

In Stock, Qty 20+

0

47

Cub Cadet 756-0116

Pulley, Idler, V Type x 3.06 Dia
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

48

Cub Cadet 756-0981A

Pulley, Idler, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 756-1166

Pulley, Input, 5.0 Dia S/N 1A174H20368 & before

$

$

Not available

Cub Cadet 756-04111

Pulley, Input, 4.11 Dia. S/N 1A174H20369 & after

$50.99

$

In Stock, only 2 left!

0

50

Cub Cadet 783-0810

Bracket, Transmission, Torque Hydro
(Superseded to 783-0810B-0637)

Variations

Cub Cadet 783-0810-0637

USE 783-0810B-0637 BRACKET-TR - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 783-1019

Bracket, Actuator, Switch
(Superseded to 783-1019B)

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 756-0978A

Pulley, Engine, 3.56 Dia.
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

53

Cub Cadet 736-0242

Belle Washer

$4.49

$

In Stock, Qty 20+

0
