LT 1018 (13AX11CG710) - Cub Cadet 42" Lawn Tractor Hood & Grille Parts Diagram

42" Lawn Tractor

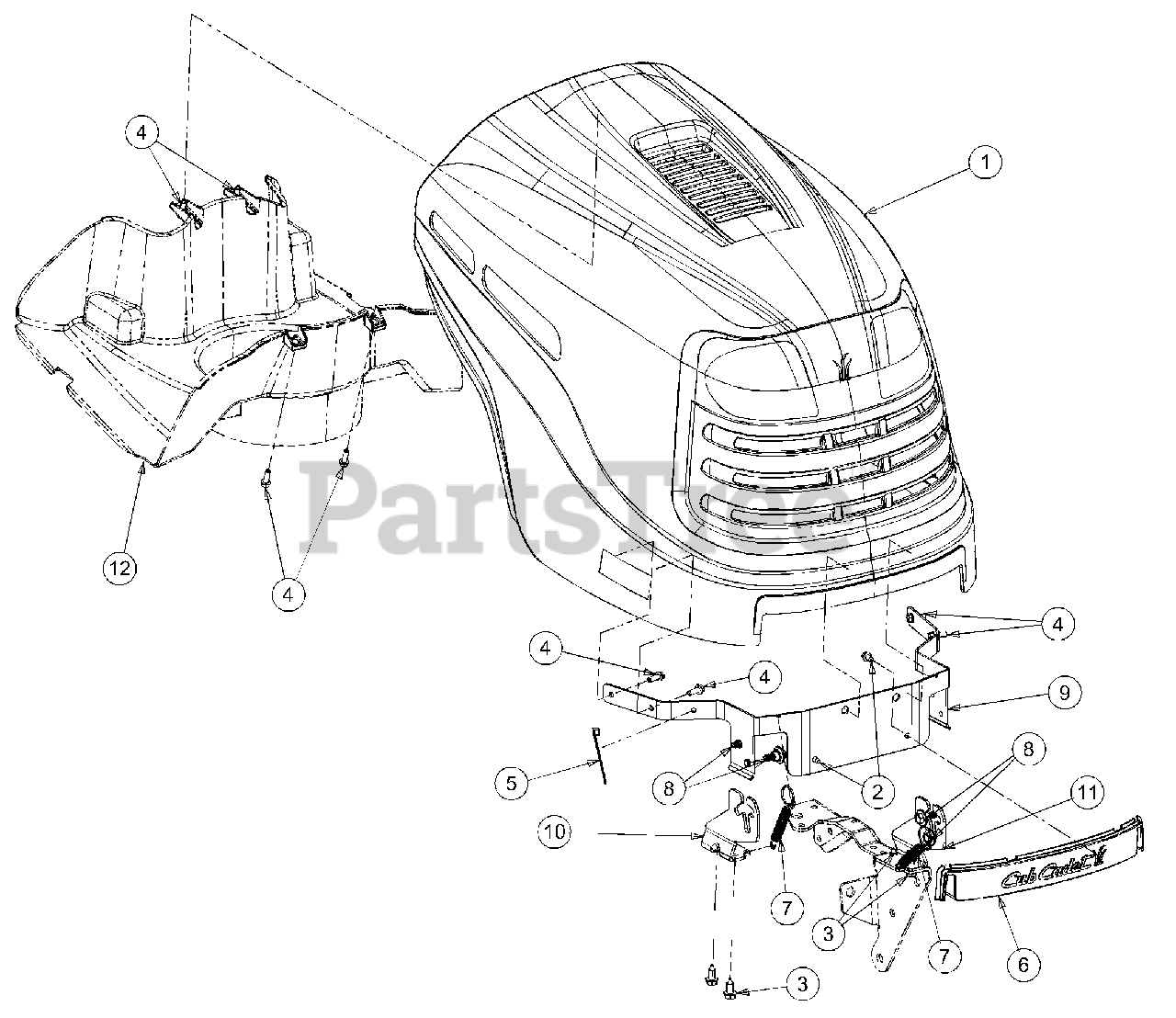

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 731-04567

Hood
(Superseded to 931-04567A)

$344.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 629-04083

Headlight Harness
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 725-0963

Miniature Lamp, 12 V
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

1

Cub Cadet 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

1

Cub Cadet 731-04577

Headlight Lens
(Superseded to 931-04577A)

$46.99

$

In Stock, Qty 8

0

1

Cub Cadet 777X41562

Headlight Lens Reflector, LH

Note: (From the operators position)

$

$

Not available

1

Cub Cadet 777X41563

Headlight Lens Reflector, RH

Note: (From the operators position)

$

$

Not available

2

Cub Cadet 710-0599

Screw, Hx. Wash, Hd,Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0895

Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-04687

Cover, Front Hood
(Superseded to 931-04687A)

$

$

Not available

7

Cub Cadet 732-04189

Spring, .46 x 4.12
(Superseded to 732-04189B)

$17.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 738-04091

Shoulder Screw, .43 x .29 x 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 783-04428

Pivot Bracket

Variations

Cub Cadet 783-04428-0637

HOOD PIVOT BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04428-0716

Hood Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

Cub Cadet 783-04464

Pivot Bracket, Hood, RH
(Superseded to 783-04464B-0716)

Variations

Cub Cadet 783-04464-0716

Hood Pivot Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 783-04465

Pivot Bracket, Hood, LH
(Superseded to 783-04465A-0716)

Variations

Cub Cadet 783-04465-0716

Hood Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

Cub Cadet 731-04569

Hood Plenum (LT1018)
(Superseded to 731-04569A)

$62.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-04679

Hood Plenum (LT1022)
(Superseded to 731-04679A)

$63.99

$

Usually ships in 3-6 days

0
