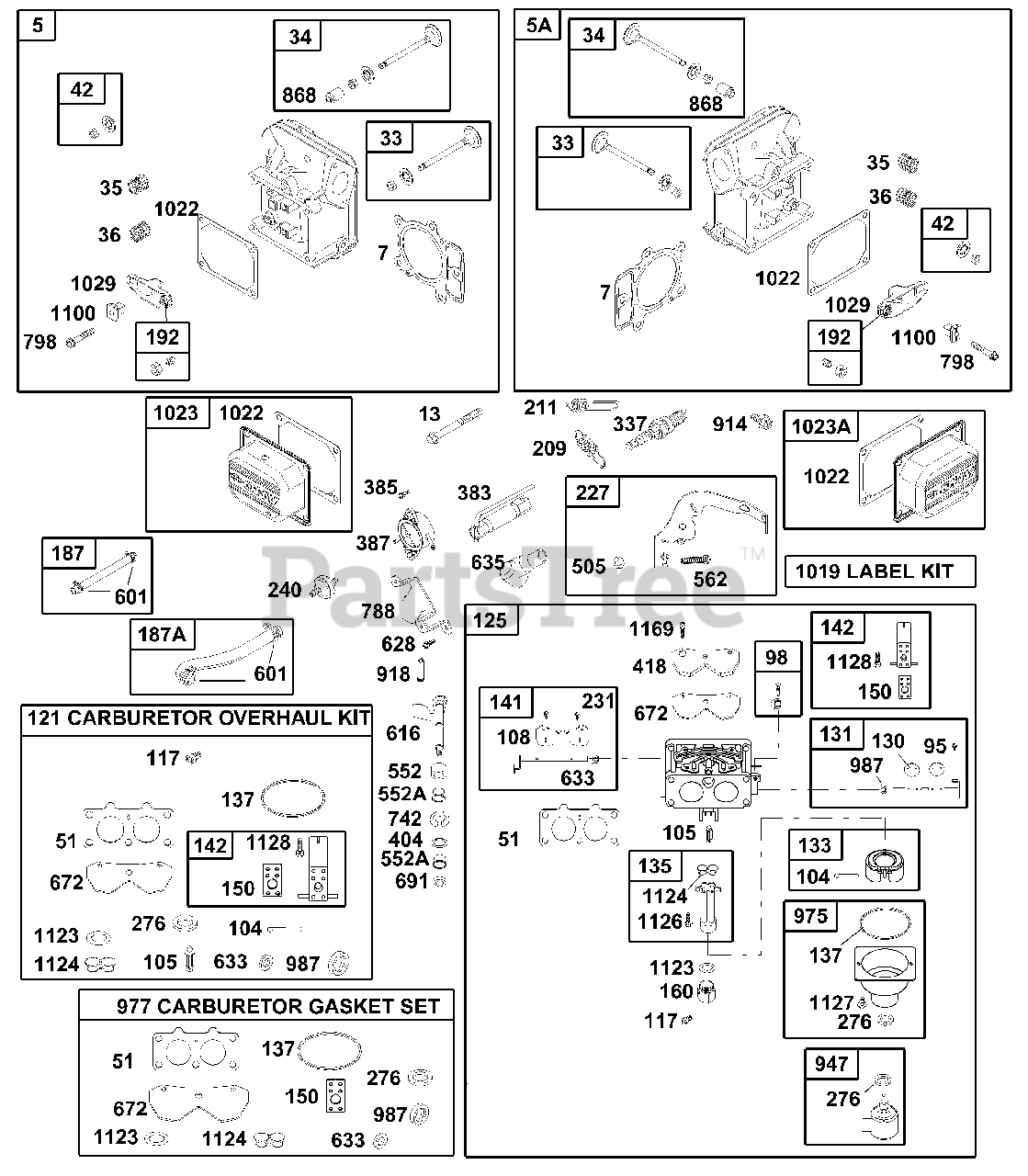

LT 1018 (13AL11CG712) - Cub Cadet 42" Lawn Tractor Engine (Part 2) 22 HP Parts Diagram

42" Lawn Tractor

Engine (Part 2) 22 HP Parts Diagram

  • Title

5

Cub Cadet BS-697580

Head-Cylinder (Cylinder 1)
(Superseded to BS-84001918)

$235.99

$

In Stock, Qty 20+

0

5A

Cub Cadet BS-697581

Head-Cylinder (Cylinder 2)
(Superseded to BS-796232)

$

$

Not available

7

Cub Cadet BS-690962

Gasket-Cylinder Head
(Superseded to BS-693997)

Note: Included in Engine Gasket Set, Key. No. 358; Valve Gasket Set, Key. No. 1095

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-690360

Screw (Cylinder Head)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet BS-697576

Valve-Exhaust

$43.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-499597

Valve-Intake
(Superseded to BS-792200)

$25.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-690963

Spring-Valve (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Cub Cadet BS-690963

Spring-Valve (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, Qty 18

0

51

Cub Cadet BS-690950

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$2.99

$

In Stock, Qty 13

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-499802

Kit-Idle Speed

$8.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-690984

Pin-Float Hinge

$

$

Not available

105

Cub Cadet BS-690985

Valve-Float Needle
(Superseded to BS-797410)

$15.99

$

In Stock, Qty 20+

0

108

Cub Cadet BS-690986

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-690232

Jet-Main (Standard)

$24.99

$

In Stock, only 2 left!

0

121

Cub Cadet BS-499811

Kit-Carburetor Overhaul
(Superseded to BS-797890)

$95.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-499804

Carburetor
(Superseded to BS-791230)

$205.99

$

Usually ships in 2-12 days

0

130

Cub Cadet BS-690993

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-499805

Kit-Throttle Shaft

$53.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-499806

Float-Carburetor
(Superseded to BS-699724)

$31.99

$

In Stock, only 1 left!

0

135

Cub Cadet BS-499803

Tube-Fuel Transfer

$15.99

$

Usually ships in 2-12 days

0

137

Cub Cadet BS-690994

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$6.99

$

In Stock, Qty 20+

0

141

Cub Cadet BS-499807

Kit-Choke Shaft

$47.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-499808

Nozzle-Carburetor

$39.99

$

Usually ships in 2-12 days

0

150

Cub Cadet BS-690995

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$5.99

$

In Stock, only 3 left!

0

160

Cub Cadet BS-690996

Retainer-Solenoid

$29.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-698742

Line-Fuel
(Superseded to BS-791881)

$

$

Not available

187A

Cub Cadet BS-691049

Line-Fuel (Molded)

$

$

Not available

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

209

Cub Cadet BS-697674

Spring-Governor
(Superseded to BS-790034)

$13.99

$

In Stock, only 2 left!

0

211

Cub Cadet BS-691019

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

227

Cub Cadet BS-691048

Lever-Governor Control
(Superseded to BS-792492)

$23.99

$

In Stock, Qty 9

0

231

Cub Cadet BS-690718

Screw (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Cub Cadet BS-695666

Filter-Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

276

Cub Cadet BS-690997

Washer-Sealing

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121; Valve Gasket Set, Key. No. 1095

$7.99

$

In Stock, Qty 6

0

337

Cub Cadet BS-491055

Plug-Spark
(Superseded to 759-3336)

$4.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-690966

Wrench-Spark Plug

$

$

Currently unavailable

385

Cub Cadet BS-690960

Screw (Fuel Pump)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

387

Cub Cadet BS-808656

Pump-Fuel
(Superseded to BS-597338)

$27.99

$

In Stock, Qty 20+

0

404

Cub Cadet BS-690442

Washer (Governor Crank)

$3.49

$

In Stock, Qty 5

0

418

Cub Cadet BS-690999

Plate-Carburetor

$

$

Not available

505

Cub Cadet BS-691029

Nut (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

552

Cub Cadet BS-690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

552A

Cub Cadet BS-690553

Bushing-Governor Crank

$7.49

$

In Stock, Qty 9

0

562

Cub Cadet BS-690311

Bolt (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-691038

Clamp-Hose

$3.99

$

In Stock, Qty 16

0

616

Cub Cadet BS-691045

Crank-Governor

$19.99

$

In Stock, only 1 left!

0

628

Cub Cadet BS-690960

Screw (Fuel Pump Bracket)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

633

Cub Cadet BS-690998

Seal-Choke/Throttle Shaft

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$7.99

$

In Stock, only 2 left!

0

635

Cub Cadet BS-66538

Boot-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

672

Cub Cadet BS-690234

Gasket-Carburetor Plate

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$12.99

$

In Stock, Qty 18

0

691

Cub Cadet BS-690657

Seal-Governor Shaft
(Superseded to BS-790574)

Note: Included in Engine Gasket Set, Key. No. 358

$5.99

$

In Stock, Qty 20+

0

742

Cub Cadet BS-690328

Retainer-E Ring

$4.49

$

In Stock, Qty 6

0

788

Cub Cadet BS-691039

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

868

Cub Cadet BS-690968

Seal-Valve

Note: Included in Engine Gasket Set, Key. No. 358; Valve Gasket Set, Key. No. 1095

$10.99

$

In Stock, Qty 20+

0

914

Cub Cadet BS-691127

Screw (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

918

Cub Cadet BS-694000

Hose-Vacuum

$4.99

$

In Stock, Qty 20+

0

947

Cub Cadet BS-499809

Solenoid-Fuel
(Superseded to BS-791230)

$205.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-499810

Bowl-Float

$29.99

$

Usually ships in 2-12 days

0

977

Cub Cadet BS-499812

Gasket Set-Carburetor
(Superseded to BS-797890)

$95.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-691000

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$6.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-690103

Kit-Label

$

$

Not available

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-499599

Cover-Rocker (Cylinder 1)

$

$

Not available

1023A

Cub Cadet BS-499600

Cover-Rocker (Cylinder 2)

$15.99

$

In Stock, only 1 left!

0

1029

Cub Cadet BS-690972

Arm-Rocker

$12.99

$

In Stock, Qty 11

0

1100

Cub Cadet BS-690973

Pivot-Rocker Arm

$

$

Not available

1123

Cub Cadet BS-690987

Seal-O Ring (Solenoid Retainer)

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$9.49

$

In Stock, only 2 left!

0

1124

Cub Cadet BS-690988

Seal-O Ring (Fuel Transfer Tube)

Note: Included in Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$7.99

$

In Stock, Qty 20+

0

1126

Cub Cadet BS-690991

Screw (Fuel Transfer Tube)

$3.99

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-690992

Screw (Float Bowl)

$4.99

$

Usually ships in 2-12 days

0

1128

Cub Cadet BS-690990

Screw (Carburetor Nozzle)

$3.99

$

Usually ships in 2-12 days

0

1169

Cub Cadet BS-693140

Screw (Carburetor Cover Plate)

$3.49

$

Usually ships in 2-12 days

0
