LT 1018 (13AL11CG712) - Cub Cadet 42" Lawn Tractor Dash Panel Parts Diagram

42" Lawn Tractor

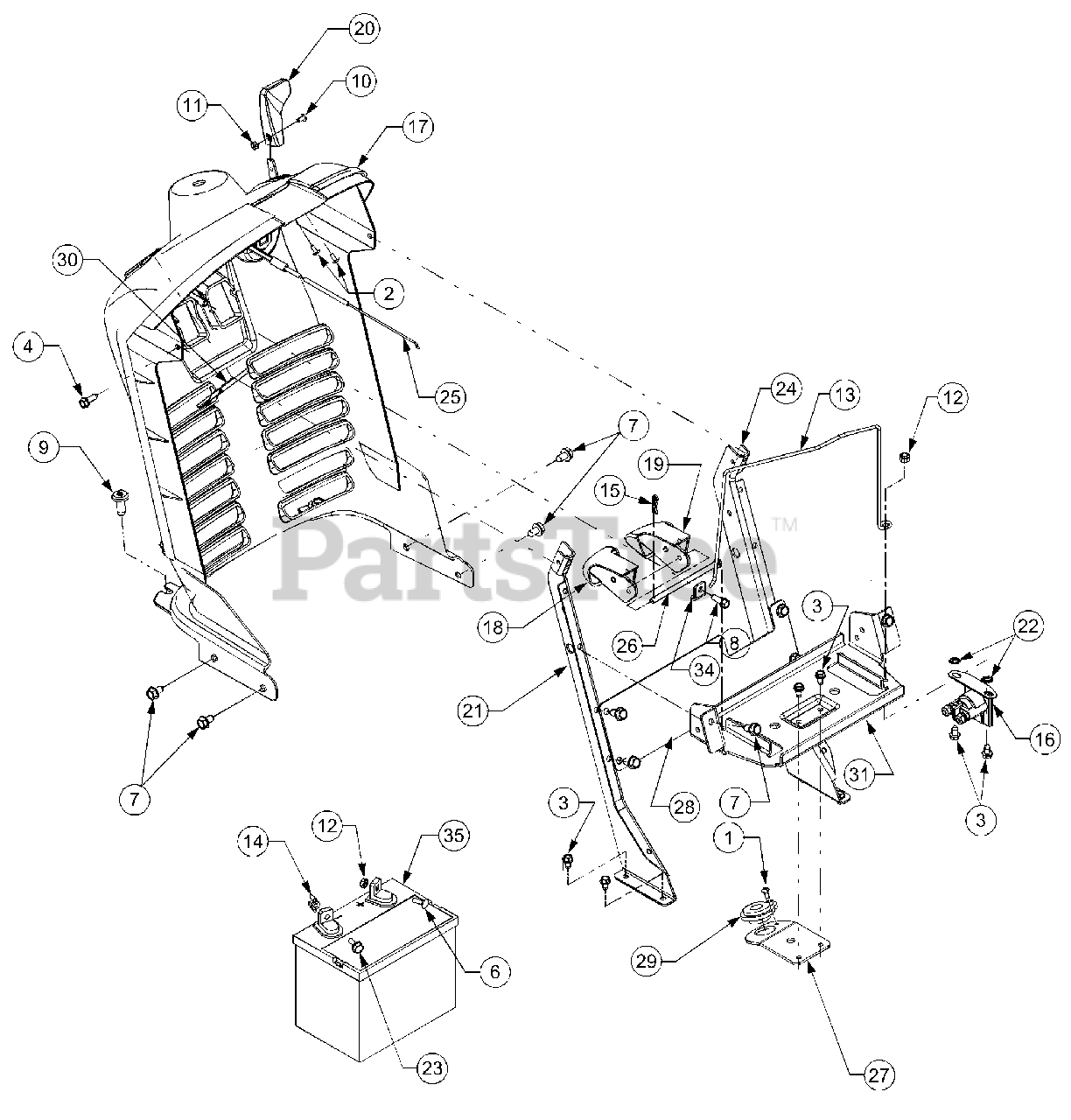

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 5

0

2

Cub Cadet 710-0192

Screw, #10-24 x .375

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0650

Screw, Hx. Wash. Hd, Tapp, 5/16-18, .875

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0703

Screw, Carriage, 1/4-20, .75,

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 710-0726

Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1611B

Screw, Torx Hd. Tapp. 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-3217

Screw, Machine, #8-32, 0.375, Trus Phillips

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 712-0324

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet 747-04215

Strap, Battery
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

14

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 725-1426

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-04668

Dash
(Superseded to 931-04668)

$

$

Not available

18

Cub Cadet 731-04294A

Lever, Dash, Cruise

$17.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-04293A

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

20

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet 783-04285

Dash Support, RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 736-0222

Washer, External Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

23

Cub Cadet 738-1132

Screw, Shoulder, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

24

Cub Cadet 783-04323

Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 746-04121

Control, Choke, 24.0 (LT1018)

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 746-04120

Control, Choke, 40.5 (LT1022)
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

26

Cub Cadet 747-1323A

Rod, .250 Dia x 4.25 Lg.

$11.99

$

In Stock, only 3 left!

0

27

Cub Cadet 783-04475

Bracket, Steering Support
(Superseded to 783-04475-0637)

Variations

Cub Cadet 783-04475-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 783-04506

Plate, Dash Support
(Superseded to 783-04506C-0637)

Variations

Cub Cadet 783-04506-0637

USE 783-04506B-0637 DASH SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 741-0587

Steering Column Bearing

$4.49

$

In Stock, Qty 10

0

30

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

31

Cub Cadet 783-1447A

Bracket, Support, Battery
(Superseded to 783-1447C-0716)

Variations

Cub Cadet 783-1447A-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

34

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-1737A

Battery, 190 CCA (LT1018)
(Superseded to 925-1707D)

$

$

Not available

Cub Cadet 725-1706A

Battery, 270 CCA (LT1022)
(Superseded to 925-1707D)

$

$

Not available
