LT 1018 (13AB11CG710) - Cub Cadet 42" Lawn Tractor Wheels Parts Diagram

42" Lawn Tractor

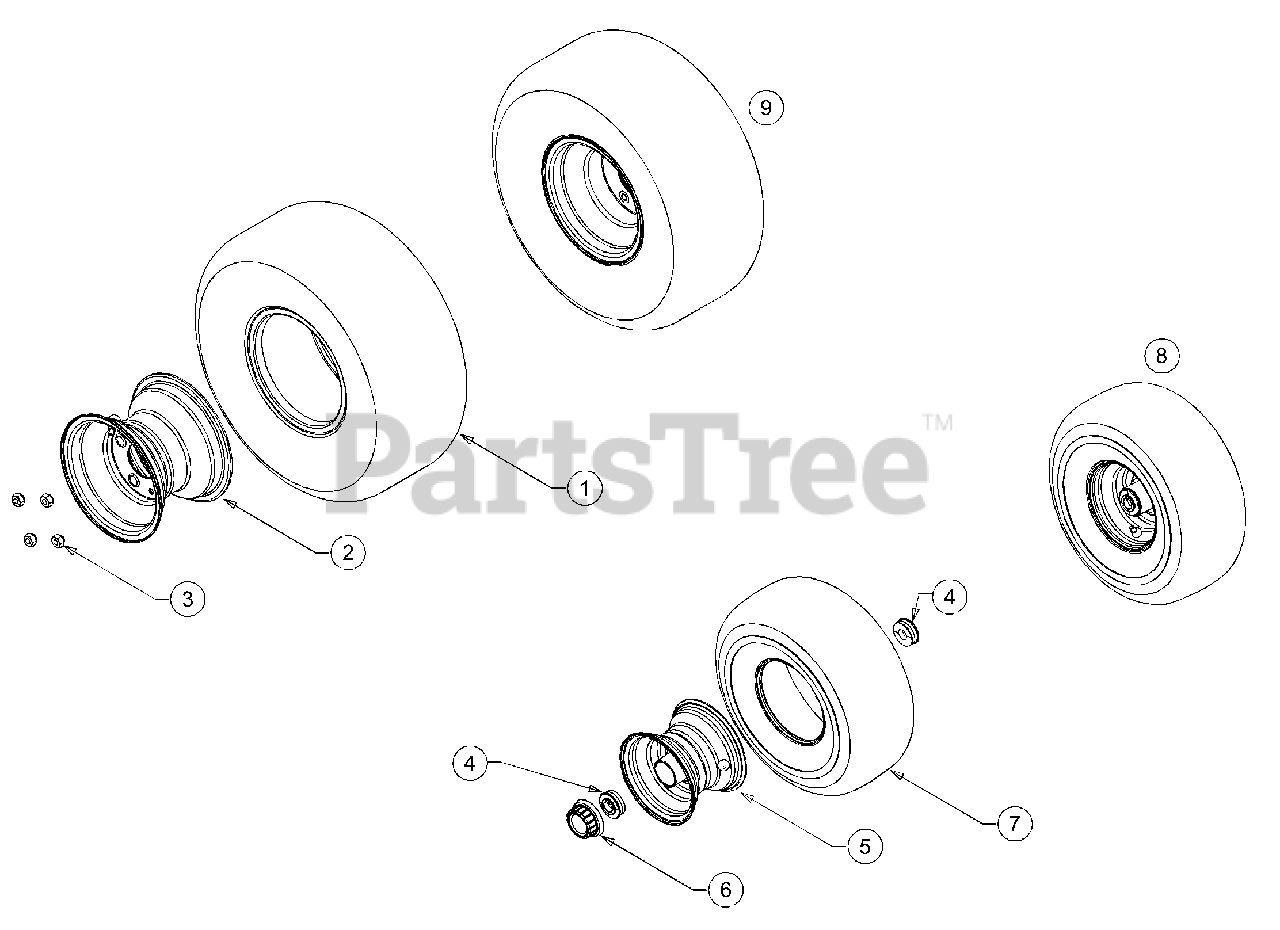

Wheels Parts Diagram

  • Title

1

Cub Cadet 734-3189

Tire, Turf, Cub Cadet 20 x 9 x 8
(Superseded to 734-1873-0901)

$106.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 634-0246A

Rim Assembly, 8.0 x 6.19
(Superseded to 934-0246A)

Note: (4-Lug)

Variations

Cub Cadet 634-0246A-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0246A-0662

Rear Rim Assembly, Oyster Grey - OYSTER GRAY (0662)

$134.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0246A-4042

USE 934-0246A-4042 RIM ASM-RE - CRAFTSMAN GRAY (4042)

$134.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

4

Cub Cadet 741-3032

Bearing, Ball, .75 ID x 1.75 OD
(Superseded to 941-3032)

$47.99

$

In Stock, only 2 left!

0

5

Cub Cadet 634-04104

Rim Assembly, 6 x 4.5
(Superseded to 934-04104A)

Note: (Included, Bearings, Spacer and Valve)

Variations

Cub Cadet 634-04104-0499

Front Rim Assembly - CUB BEIGE (0499)

$181.99

$

Usually ships in 3-6 days

0

$147.99

$

In Stock, only 1 left!

0

6

Cub Cadet 731-3020

Hub Cap
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

7

Cub Cadet 734-3186

Tire, Turf, Cub Cadet 15 x 6 x 6
(Superseded to 734-3186A)

$44.99

$

In Stock, only 2 left!

0

8

Cub Cadet N/A

Wheel Assembly, Cub Cadet 15 x 6 x 6

Note: Front

$

$

Currently unavailable

9

Cub Cadet N/A

Wheel Assembly, Cub Cadet 20 x 9 x 8

Note: Rear

$

$

Currently unavailable

Cub Cadet 737-0224

Grease Fitting

Note: Not shown

$7.49

$

In Stock, only 3 left!

0

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0
