LT 1018 (13AB11CG710) - Cub Cadet 42" Lawn Tractor Kohler Engine Oil Pan & Lubrication Parts Diagram

42" Lawn Tractor

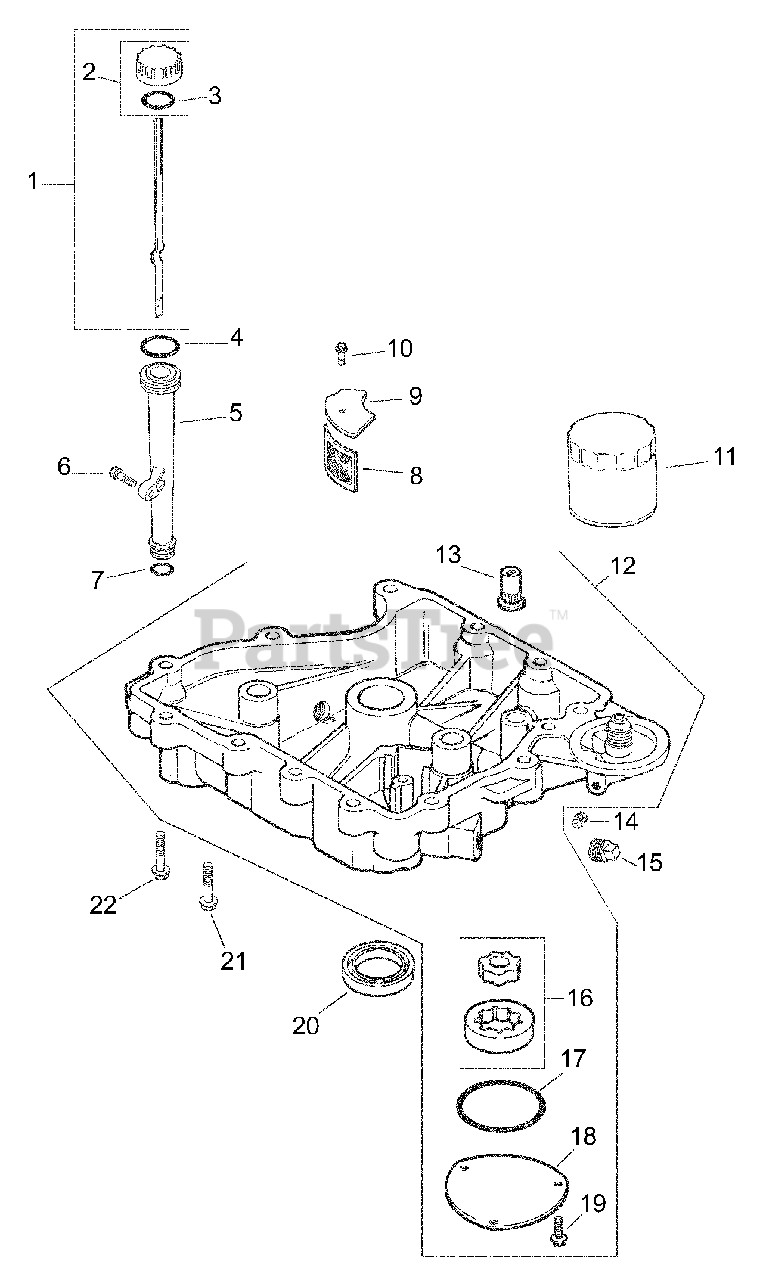

Kohler Engine Oil Pan & Lubrication Parts Diagram

  • Title
1

Cub Cadet KH-12-038-01

Dip stick

Note: (Includes 2, 3)

$

$

Not available

2

Cub Cadet KH-24-755-46

Kit, Oil Fill Cap

Note: (Includes 3)

$

$

Not available

3

Cub Cadet KH-12-153-03

O-ring
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-153-02-S

O-ring, Upper Oil Fill Tube

$2.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-12-123-04

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

6

Cub Cadet KH-M-645025-S

Screw, Hex. Flange M6 x 1.0 x 25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-153-01-S

O-ring, Lower Oil Fill Tube

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet KH-25-162-07

Screen, Oil Pickup

$

$

Not available

9

Cub Cadet KH-12-096-03-S

Cover, Oil Pickup Screen

$13.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-M-545016-S

Screw, Hex. Flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-12-199-50-S

Pan, Oil

Note: (Includes 13, 16-19)

$581.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-462-09

Valve, Oil Pressure Relief

$

$

Not available

14

Cub Cadet KH-25-139-52-S

Plug, Sq. Hd. 1/8"

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-139-57-S

Plug, Sq. Hd. Solid 3/8"

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet KH-12-393-01

Pump Assembly, Oil

$

$

Not available

17

Cub Cadet KH-12-153-06

O-ring, Oil Pump Cover

$

$

Not available

18

Cub Cadet KH-12-096-34

Cover, Oil Pump

$

$

Not available

19

Cub Cadet KH-M-545016-S

Screw, Hex. Flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-12-032-03

Seal, Oil
(Superseded to KH-12-032-03-S)

Note: (P.T.O. End)

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-24-086-16

Screw, Hex. Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

22

Cub Cadet KH-24-086-17

Screw, Hex. Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0
