LT 1018 (13AB11CG710) - Cub Cadet 42" Lawn Tractor Kohler Engine Carburetor & Fuel Pump Parts Diagram

42" Lawn Tractor

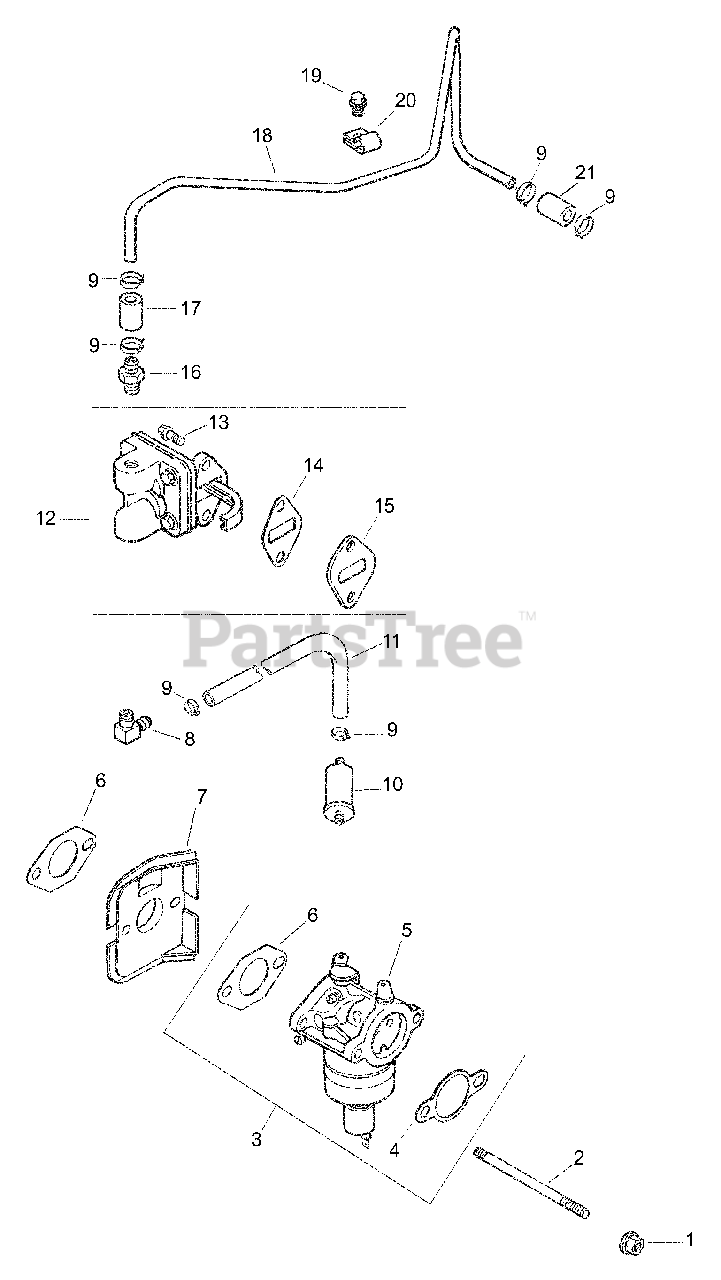

Kohler Engine Carburetor & Fuel Pump Parts Diagram

  • Title
1

Cub Cadet KH-M-64-060-S

Nut, Hex. Flange M6 x 1.0

$

$

Currently unavailable

2

Cub Cadet KH-M-629116

Stud M6 x 1.0 x 116 (2)

$

$

Not available

3

Cub Cadet KH-12-853-117-S

Kit, Carburetor W/ Gaskets

Note: (Includes 4, 5, 6 [Qty. 1], Tie KH-12 454 03-S, & Terminal KH-25 452 20-S)

$269.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-02

Gasket, Air Cleaner

$2.99

$

In Stock, Qty 5

0

5

Carburetor Assembly

$

$

Not available

6

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

7

Cub Cadet KH-12-265-06-S

Deflector, Heat

$

$

Not available

8

Cub Cadet KH-25-155-02

Connector, 90x Hose

$

$

Not available

9

Cub Cadet KH-25-237-14-S

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

10

$10.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-353-02

Line, Fuel 3"

$

$

Not available

12

Cub Cadet KH-12-559-02-S

Kit, Fuel Pump

Note: (Includes 13-15)

$48.99

$

In Stock, Qty 6

0

13

Cub Cadet KH-M-645020-S

Screw, Hex. Flange M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

16

Cub Cadet KH-25-326-03-S

Connector, Straight Hose

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 751-0535-12

Line, Fuel 1-1/4"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-12-123-19

Line, Fuel - Metal

$

$

Not available

19

Cub Cadet KH-M-0545010

Screw, Hex. Flange M5 x 0.8 x 10

$

$

Not available

20

Cub Cadet KH-12-154-01

Clamp, Fuel Line

$

$

Not available

21

Cub Cadet KH-41-353-18-S

Line Fuel 2-1/2"

$3.49

$

Usually ships in 2-5 days

0

$

$

Not available

Cub Cadet KH-12-757-03

Kit, Carburetor Repair

$35.99

$

In Stock, Qty 8

0

Cub Cadet KH-12-757-3

Kit, Solenoid Repair

$

$

Currently unavailable

Cub Cadet KH-12-518-24-S

Lead, Red

Note: (20" - 18 Gauge - Insulated Socket And Uninsulated Push On Tab Terminals)

$4.49

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-561010

Screw, Thread Forming M5 x 0.8 x 10

$

$

Not available

Cub Cadet KH-X-22-11

Washer, Lock 1/4"

$

$

Not available

$

$

Currently unavailable
