LT 1018 (13AB11CG710) - Cub Cadet 42" Lawn Tractor Kohler Engine Accessories Parts Diagram

42" Lawn Tractor

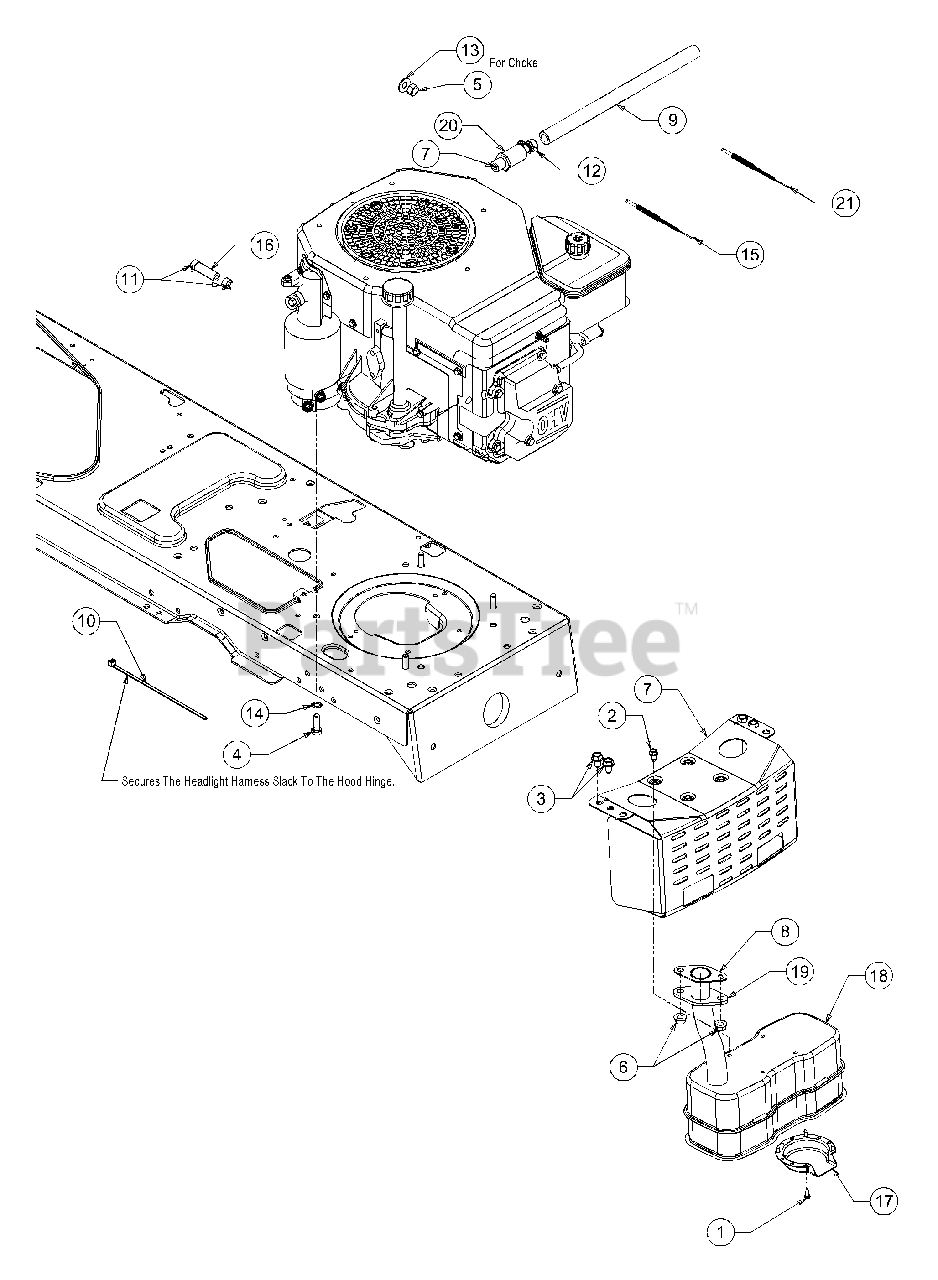

Kohler Engine Accessories Parts Diagram

  • Title
1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3206A

Screw, M8-1.25, 25.0, Gr. 8

$3.99

$

In Stock, Qty 13

0

5

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr. 8

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3086

Flange Nut, M8, 1.25-6h

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 783-0615C

Shield, Heat, Muffler
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

8

Cub Cadet 721-0375

Gasket, Exhaust, Kohler Single
(Superseded to KH-12-041-03)

$

$

Not available

9

Cub Cadet 751-3141-12

Hose, Extension, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

10

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 751-3142

Cap, Oil, Drain

$4.49

$

In Stock, Qty 14

0

13

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 746-1087

Cable, Throttle, 27.4 Lg
(Superseded to 946-1087)

$35.99

$

In Stock, only 1 left!

0

16

Cub Cadet 759-3330

Hose, 10' Fuel Line

Note: - Cut to length 29"

$63.99

$

In Stock, only 2 left!

0

17

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

18

Cub Cadet 751-0617A

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

19

Cub Cadet 751-0810B

Pipe, Exhaust, Kohler Single

$

$

Not available

20

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

21

Cub Cadet 746-04121

Choke Control

$30.99

$

In Stock, only 1 left!

0
