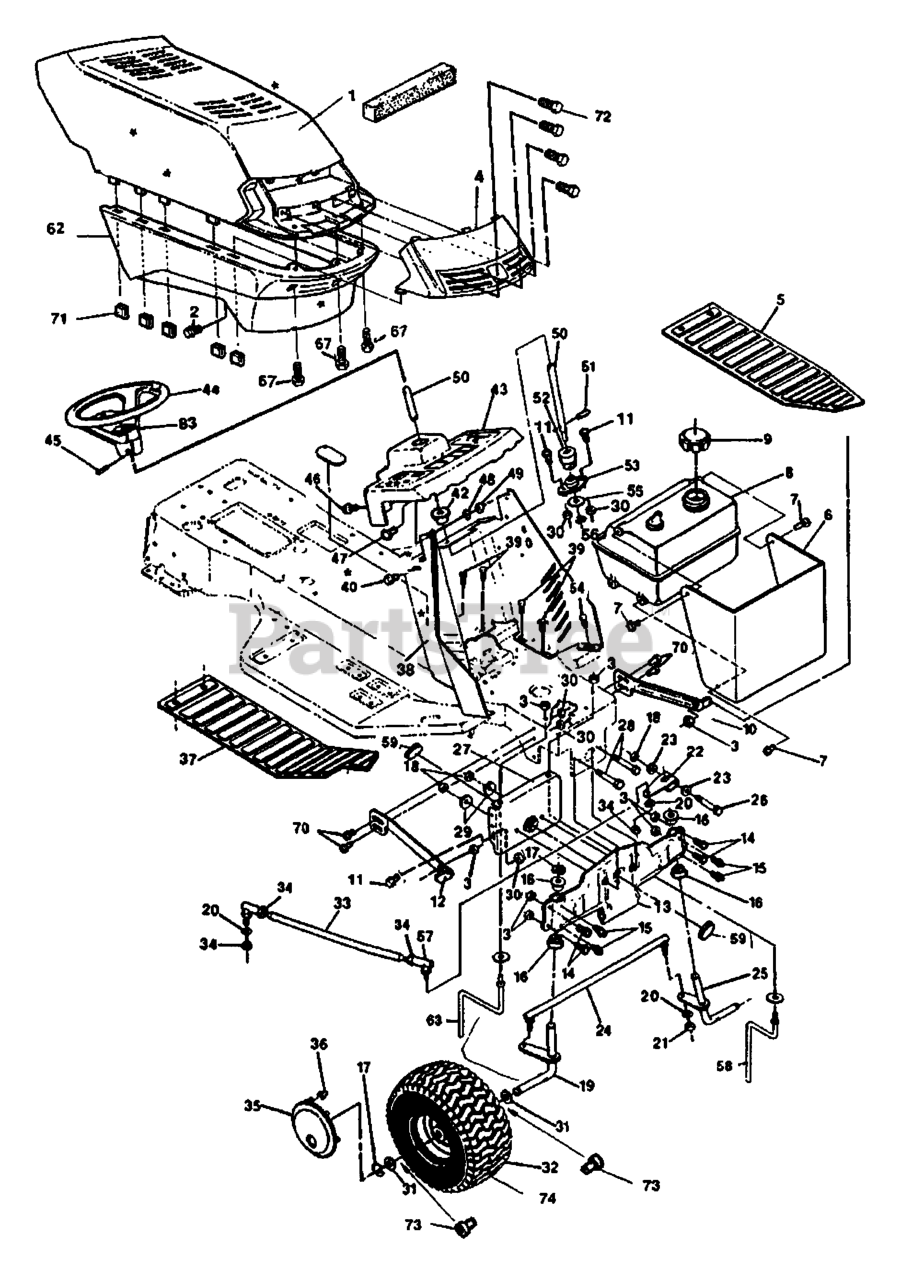

LT 1000 (LT 1000-14) - Craftsman Lawn Tractor (1991-03) General Assembly Parts Diagram

Lawn Tractor

General Assembly Parts Diagram

  • Title

1

Husqvarna 533304406

LEVER

$

$

Not available

2

Husqvarna 533304024

SHIFT

$

$

Not available

3

Husqvarna 533302538

CLIP

$

$

Not available

4

Husqvarna 533035497

SCREW
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 533304086

REPL BY 533 30 40-86

$

$

Not available

6

Husqvarna 533001502

NUT
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

7

Husqvarna 533071046

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 533001499

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 533122145

SCREW
(Superseded to 874780620)

$7.49

$

Usually ships in 3-10 days

0

10

UNKNOWN

$

$

Not available

11

UNKNOWN

$

$

Not available

12

UNKNOWN

$

$

Not available

13

UNKNOWN

$

$

Not available

14

Husqvarna 533305554

PIPE, R.H.

$

$

Not available

15

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

16

UNKNOWN

$

$

Not available

17

UNKNOWN

$

$

Not available

18

Husqvarna 533995346

SCREW

$

$

Not available

19

UNKNOWN

$

$

Not available

20

UNKNOWN

$

$

Not available

21

Husqvarna 533126211

SCREW
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 533055273

NUT

$

$

Not available

23

Husqvarna 533306590

PULLEY, ASSY ENG.

$

$

Not available

24

Husqvarna 533056431

WASHER

$

$

Not available

25

Husqvarna 533120383

LOCK WASHER

$

$

Not available

26

Husqvarna 533428644

SCREW

$

$

Not available

27

Husqvarna 533303241

BELT

$

$

Not available

28

Husqvarna 533310162

BELT GUIDE

$

$

Not available

29

Husqvarna 533057157

WASHER

$

$

Not available

30

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

31

Husqvarna 533120638

WASHER
(Superseded to 810040500)

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 533050947

SCREW
(Superseded to 874780620)

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 533138489

WASHER

$

$

Not available

34

Husqvarna 533304490

PAD
(Superseded to 533302335)

$

$

Not available

35

Husqvarna 533308642

ARM

$

$

Not available

36

Husqvarna 533302337

REPL BY 533 31 32-71
(Superseded to 533313271)

$

$

Not available

37

Husqvarna 533304208

ARM

$

$

Not available

38

Husqvarna 533304217

ROD

$

$

Not available

39

Husqvarna 533304367

KNOB

$

$

Not available

40

Husqvarna 533025086

BOLT

$

$

Not available

41

Husqvarna 533120385

WASHER
(Superseded to 734115301)

$2.99

$

Usually ships in 3-10 days

0

42

Husqvarna 533121223

PIN

$

$

Not available

43

Husqvarna 533035410

SPRING
(Superseded to 601000212)

$

$

Not available

44

Husqvarna 533304125

REPL BY 533 30 41-25

$

$

Not available

45

Husqvarna 533271184

NUT 5/16X18

$

$

Not available

46

Husqvarna 533304212

ROD

$

$

Not available

47

Husqvarna 533304049

ARM

$

$

Not available

48

Husqvarna 533051189

REPL BY 533 05 11-89

$

$

Not available

49

Husqvarna 533274517

WASHER
(Superseded to 734117171)

$

$

Not available

50

Husqvarna 533036368

PIN

$

$

Not available

51

Husqvarna 533304083

ROD

$

$

Not available

52

Husqvarna 533057325

SCREW
(Superseded to 872110616)

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 533040223

TENSIONER

$

$

Not available

54

Husqvarna 533304105

REPL BY 533 30 41-05

$

$

Not available

55

Husqvarna 533304130

SPRING

$

$

Not available

56

Husqvarna 533045171

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 533022053

RETAINING RING

$

$

Not available

58

Husqvarna 533003021

KEY

$

$

Not available

59

Husqvarna 533303109

PULLEY

$

$

Not available

60

Husqvarna 533309546

LINK

$

$

Not available

61

Husqvarna 533120394

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 533302582

ARM

$

$

Not available

63

Husqvarna 533056255

SCREW
(Superseded to 874610412)

$

$

Not available

67

Husqvarna 533995338

SCREW
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

68

Husqvarna 533057791

KEY, SQUARE1/4

$

$

Not available

69

Husqvarna 533304246

SPACER

$

$

Not available

70

Husqvarna 533121222

PIN

$

$

Not available

71

UNKNOWN

$

$

Not available

72

UNKNOWN

$

$

Not available

73

Husqvarna 533035287

SCREW
(Superseded to 874980806)

$

$

Not available

74

Husqvarna 533305553

MUFFLER

$

$

Not available

75

Husqvarna 533313044

$

$

Currently unavailable

76

Husqvarna 533313043

$

$

Currently unavailable

78

Husqvarna 533056472

$

$

Currently unavailable

79

Husqvarna 533308144

$

$

Currently unavailable

80

Husqvarna 533305555

PIPE, L.H.

$

$

Not available

81

Husqvarna 533306577

BRACKET

$

$

Not available

82

Husqvarna 533009796

BRACKET
(Superseded to 533303096)

$

$

Not available

83

UNKNOWN

$

$

Not available
