LT 100 - Husqvarna Lawn Tractor (1994-03) COVER Parts Diagram

Lawn Tractor

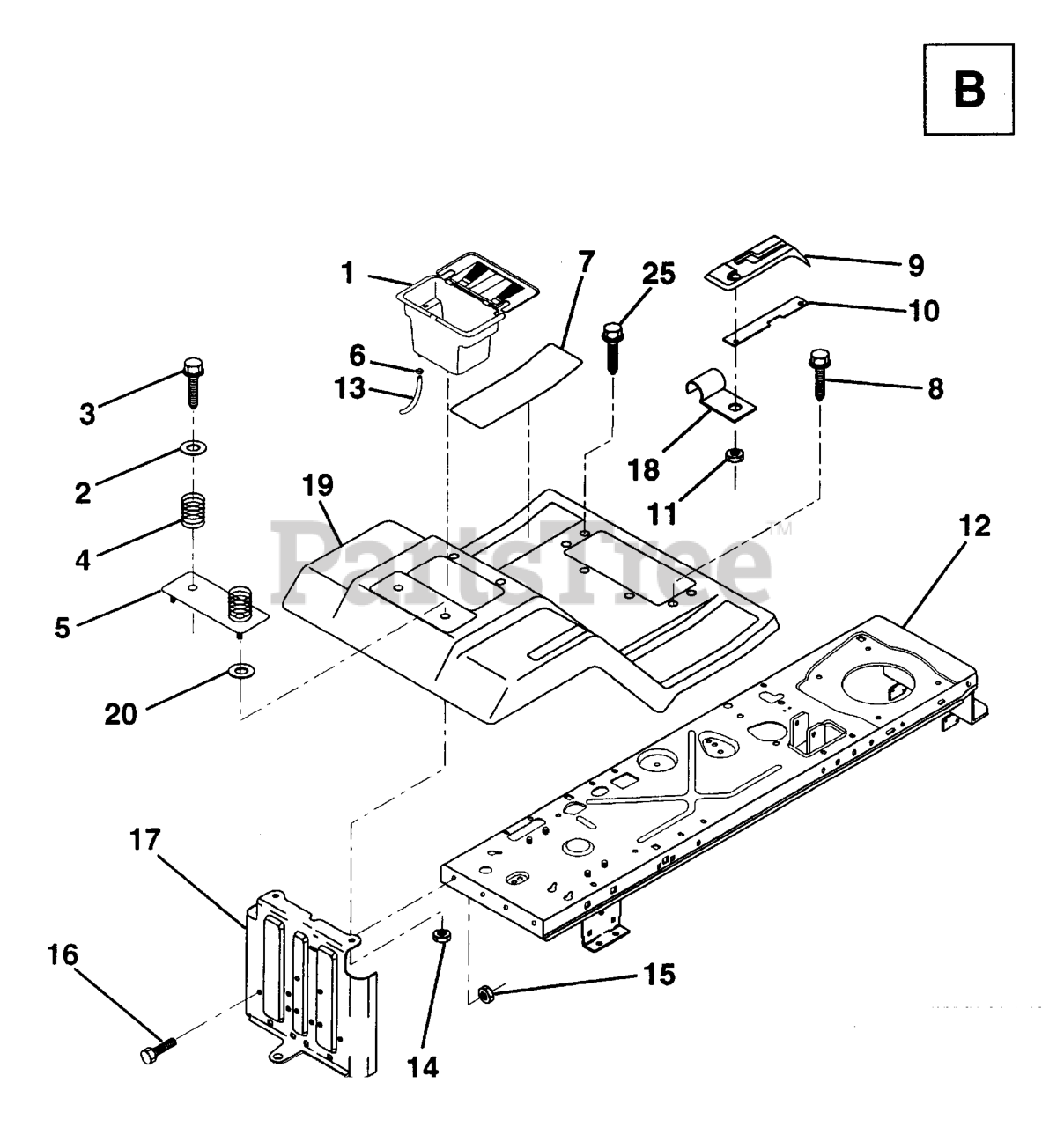

COVER Parts Diagram

  • Title

12

Husqvarna 532140784

FRAME ASSY NLA

$

$

Not available

6

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 817490516

SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

1

Husqvarna 532129965

CASE BATTERY
(Superseded to 532404349)

$

$

Not available

19

Husqvarna 532125141

FENDER/FOOTREST
(Superseded to 532141393)

$

$

Not available

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532139783

BAR, SHIFT LOCK

$

$

Not available

18

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

14

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

20

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532124144

PAD FOOTREST

$

$

Not available

11

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

15

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 532127880

DRAW BAR

$

$

Not available

9

Husqvarna 532126996

CONSOLE SHT CONTR

$

$

Not available
