LT 100 - Husqvarna Lawn Tractor (1992-03) SEAT Parts Diagram

Lawn Tractor

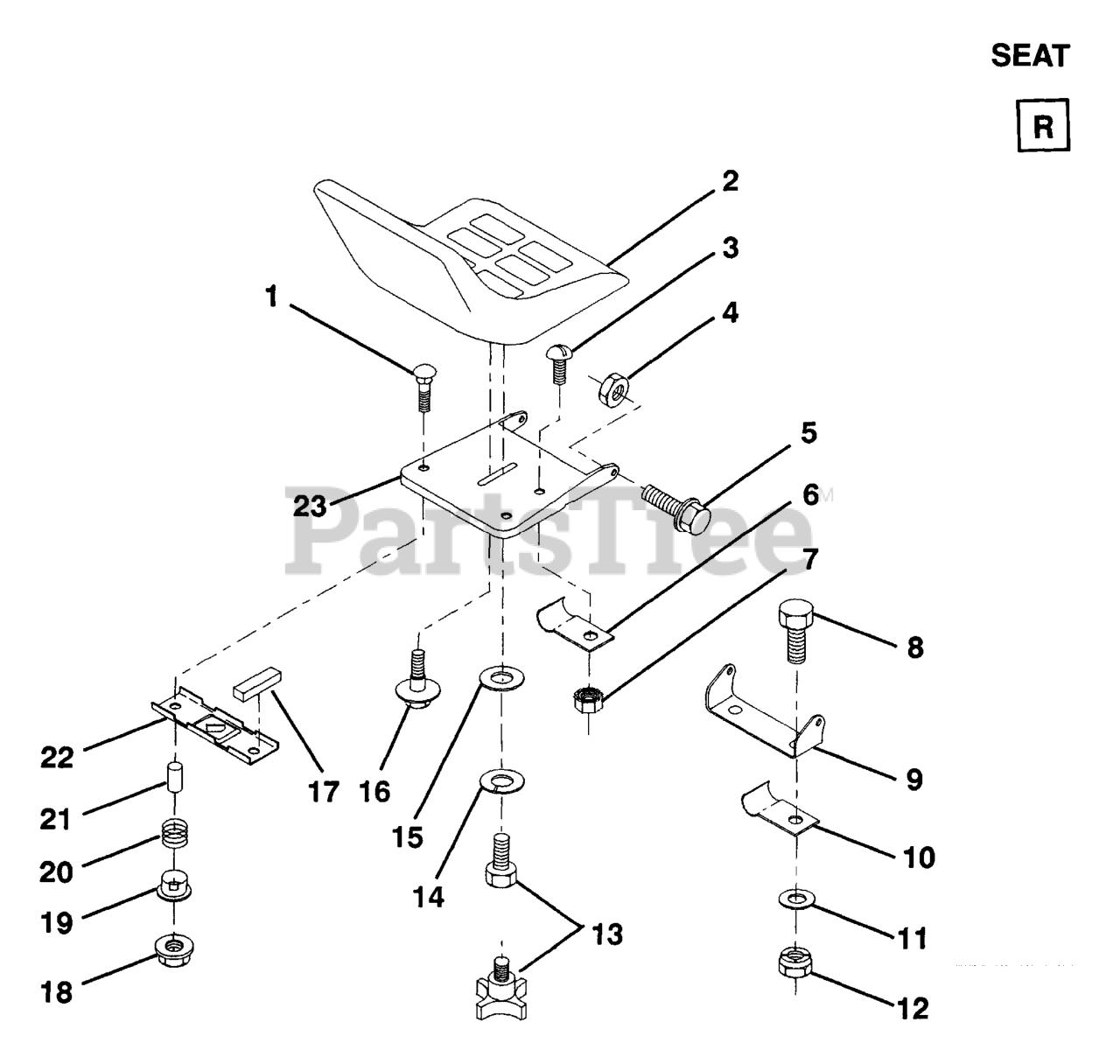

SEAT Parts Diagram

  • Title
11

Husqvarna 819131210

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

19

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

In Stock, only 1 left!

0

12

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

Note: LT120

$10.99

$

In Stock, only 1 left!

0

22

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 532121251

STRIP FORM

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 873951000

Nut, Hex, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

$2.99

$

Usually ships in 3-10 days

0

18

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 810040800

LOCKWASHER

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780814

BOLT
(Superseded to 871110814)

Note: LT100

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532126656

BRKT,SEAT PIVOT

$

$

Not available

4

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

2

Husqvarna 532127398

SEAT
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0
