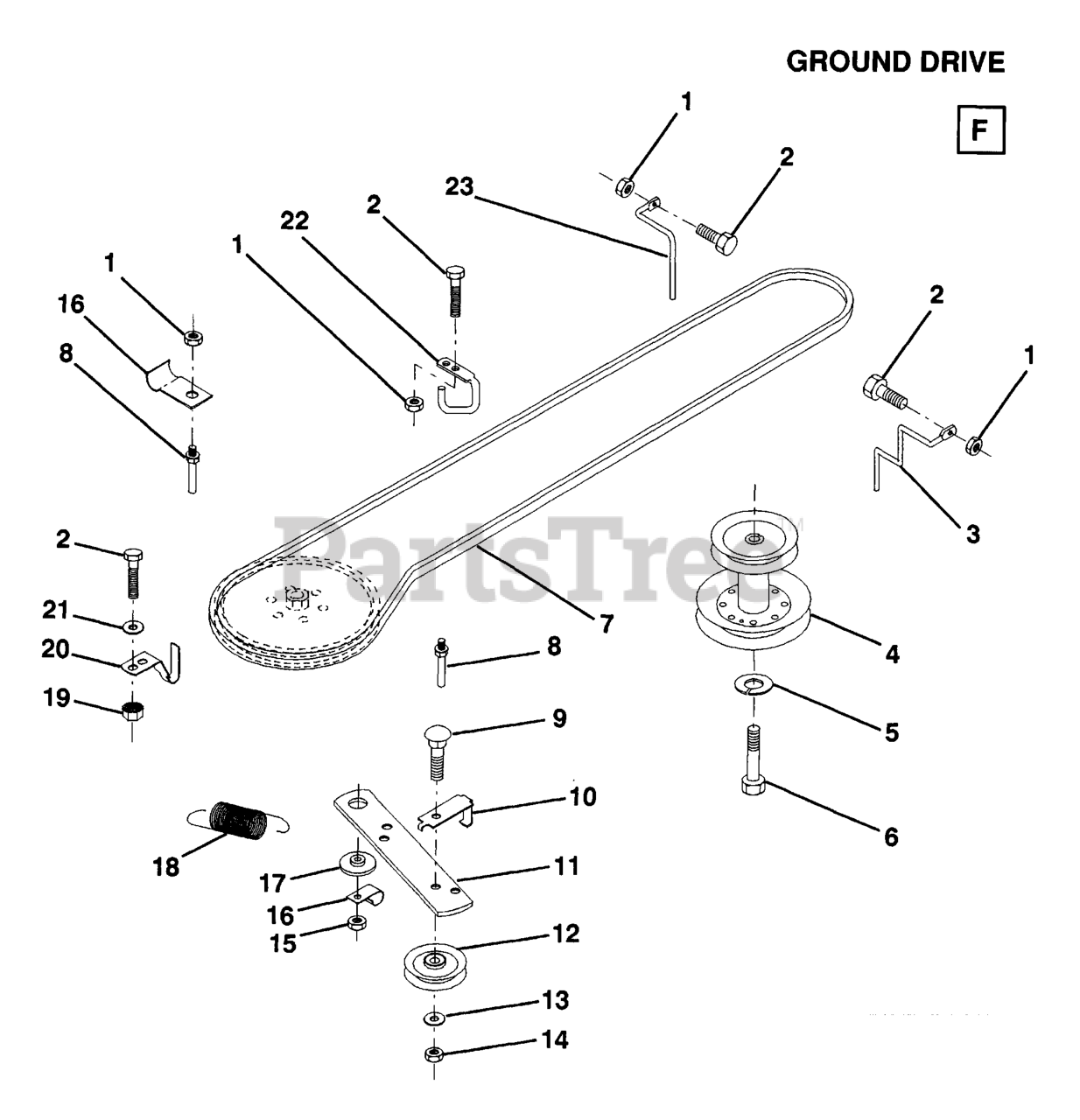

LT 100 - Husqvarna Lawn Tractor (1992-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
7

Husqvarna 532126520

BELT
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532123400

PULLEY
(Superseded to 532135893)

$

$

Not available

14

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 532004859

FLAT IDLER PULLEY
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

10

Husqvarna 532123396

KEEPER.BELT.GROUND.DRIVE.IDLER

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

8

Husqvarna 532123405

KEEPER,DRIVE BELT
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

15

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532131205

KEEPER MWR DRV RH

$

$

Not available

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532131204

KEEPER MWR DRV LH

$

$

Not available

5

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

20

Husqvarna 532123891

KEEPER,DR BELT GR

$

$

Not available

11

Husqvarna 532123395

ARM,DR CLUTCH GRO
(Superseded to 532140911)

$

$

Not available

6

Husqvarna 871130720

Soft, Fin. Hex 7/16-20 UNF x 1-1/4 Gr. 8

$

$

Not available

21

Husqvarna 819111416

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532131459

SPRING.EXTENSION

$

$

Not available

19

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123404

KEEPER,FRA DR BEL

$

$

Not available

9

Husqvarna 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0
