LT 100 (954000312-A) - Husqvarna Lawn Tractor (1991-07) Transaxle Parts Diagram

Lawn Tractor

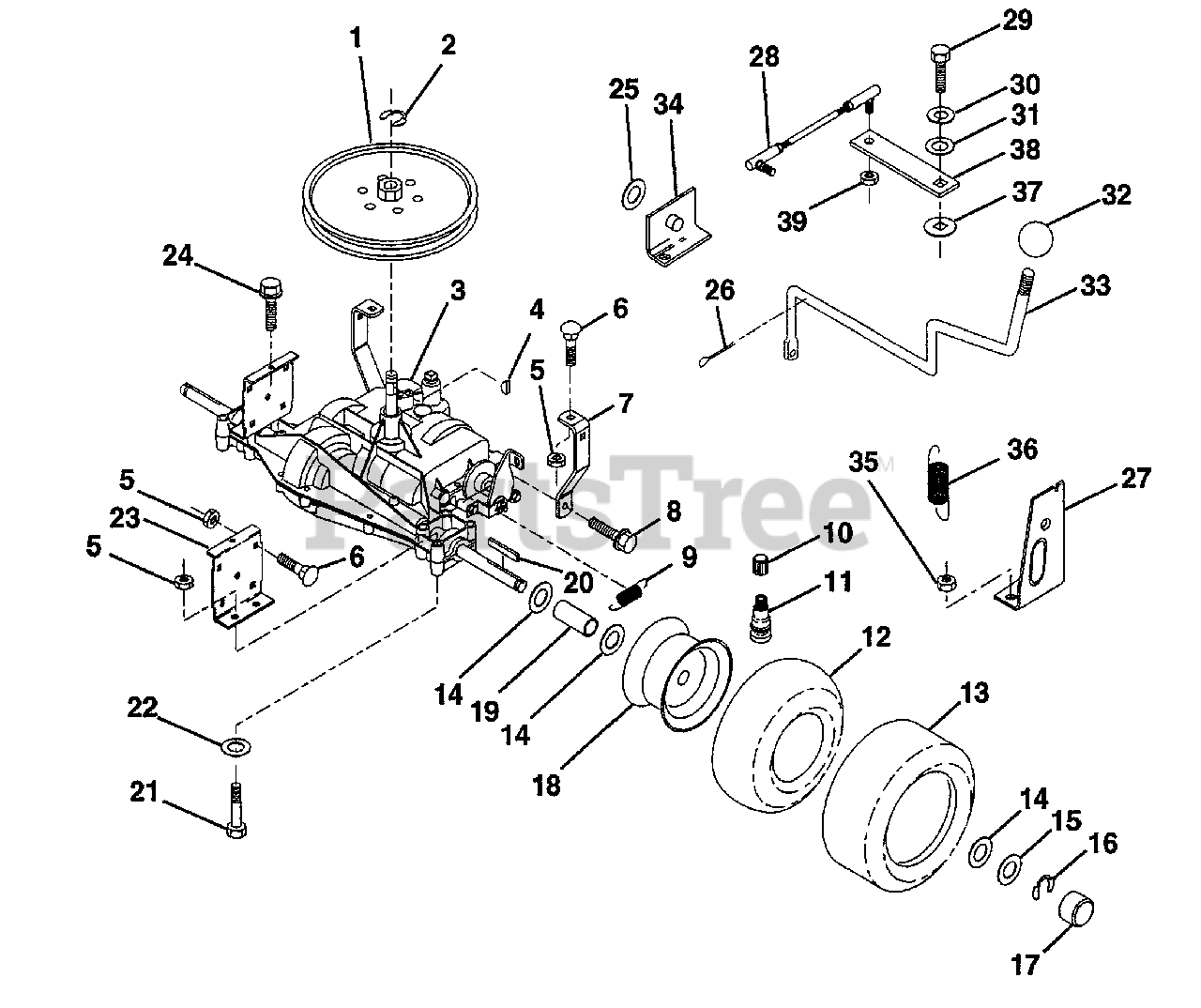

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$45.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 7

0

3

Husqvarna 532127052

Transaxle, Peerless 4 speed Model No. 930-026

$

$

Currently unavailable

4

Husqvarna 532125096

Key, Woodruff #9

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

Strap, Torque

$

$

Not available

8

Husqvarna 817490508

Screw, Hex Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

11

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

12

Husqvarna 532008134

Tube

$66.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124143

Tire, Rear

$

$

Not available

14

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121748

Washer 35/32 x 1-5/8

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 812000001

E Ring

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532104757

Hub, Cap

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532124973

Rim

$

$

Not available

19

Husqvarna 532123409

Spacer

$

$

Not available

20

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 874760540

Bolt, Fin Hex 5/16-18 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

23

Husqvarna 532123377

Bracket, Transaxle

$

$

Not available

24

Husqvarna 817490512

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 819171616

Washer 17/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

26

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532128084

Support, Handle Shift R. H.

$

$

Not available

28

Husqvarna 532126293

Link, Shift

$

$

Not available

29

Husqvarna 871040412

Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

31

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532106933

Knob, Shift Control

$7.99

$

In Stock, only 1 left!

0

33

Husqvarna 532128215

Shift Rod

$

$

Not available

34

Husqvarna 532124600

Support, Handle Shift L. H.

$

$

Not available

35

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532128085

Extension, Spring

$

$

Not available

37

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532126292

Arm, Shift

$

$

Not available

39

Husqvarna 873810500

Nut, Hex Nylon
(Superseded to 873610500)

$

$

Not available
