LT 100 (954000312-A) - Husqvarna Lawn Tractor (1991-07) Ground Drive Parts Diagram

Lawn Tractor

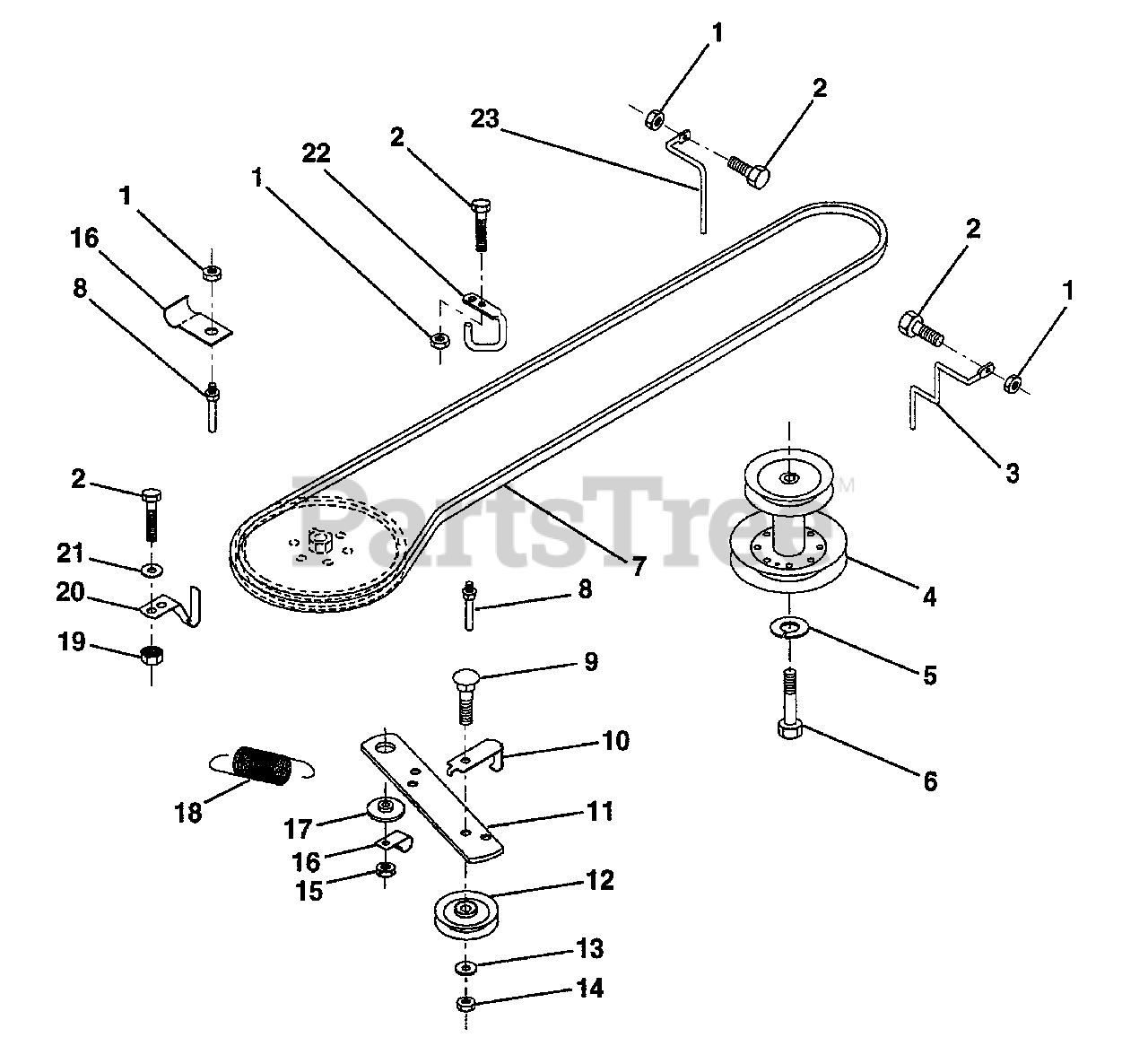

Ground Drive Parts Diagram

  • Title
1

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760512

Bolt, Hex Hd 5/16-18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532131205

Keeper,Mower Drive, R. H.

$

$

Not available

4

Husqvarna 532123400

Pulley, Engine
(Superseded to 532135893)

$

$

Not available

5

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

6

Husqvarna 871130720

Bolt, Fin Hex 7/16-20

$

$

Not available

7

Husqvarna 532126520

Traction, V-Belt Drive
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532123405

Keeper, T/A Ground Drive Belt
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140612

Bolt, Carr. 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532123396

Keeper, Belt Ground Drive Idler

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532123395

Arm, Ground Drive Clutch
(Superseded to 532140911)

$

$

Not available

12

Husqvarna 532004859

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

13

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532126471

Clip, Insulated

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532131459

Spring Extension

$

$

Not available

19

Husqvarna 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532123891

Keeper, T/A Ground Drive Belt

$

$

Not available

21

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123404

Keeper, Frame Ground Drive Belt

$

$

Not available

23

Husqvarna 532131204

Keeper, Mower Drive, L. H.

$

$

Not available
