LSZ 5424 - Husqvarna 54" Zero-Turn Mower (2008-11) SEAT Parts Diagram

54" Zero-Turn Mower

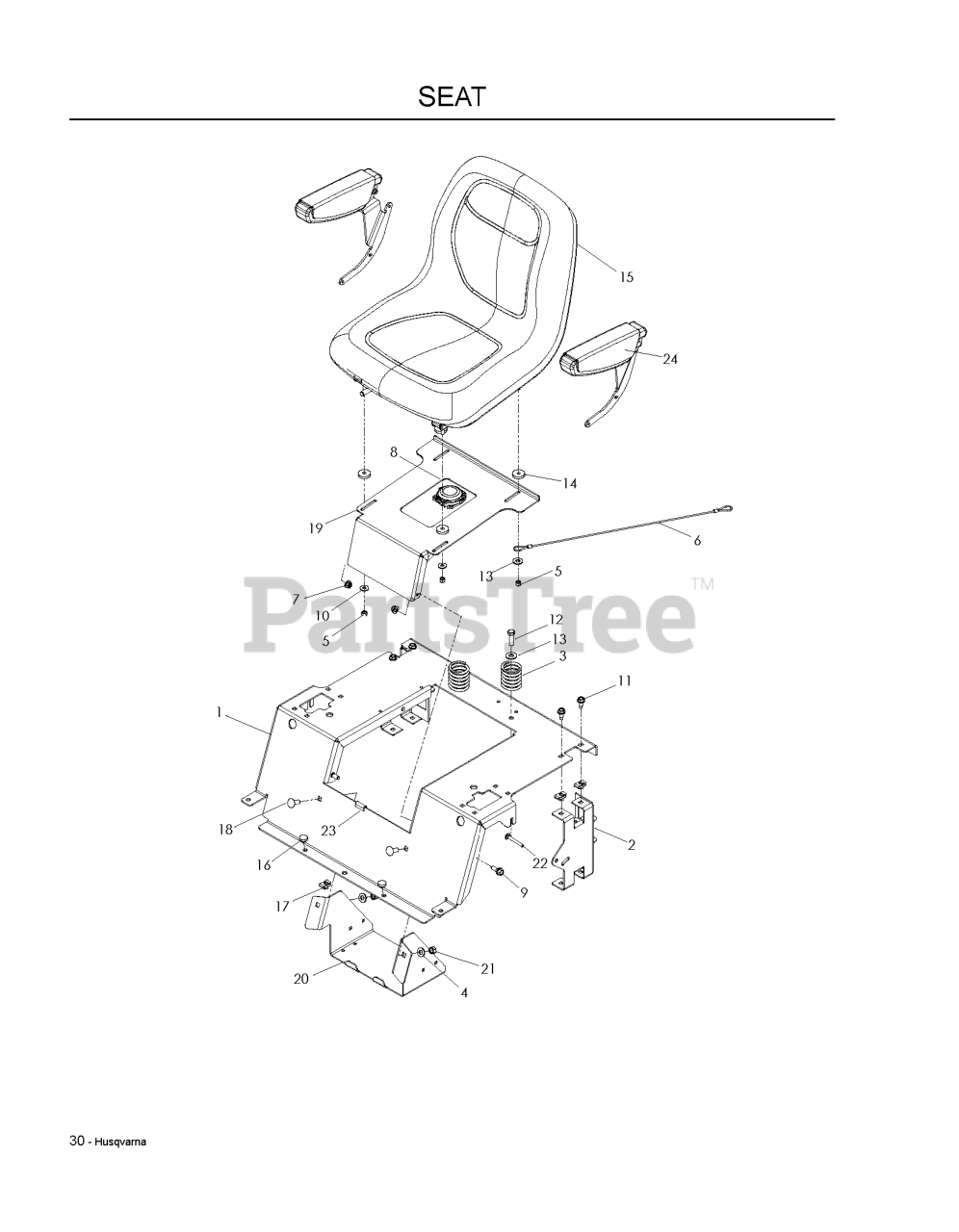

SEAT Parts Diagram

  • Title

9

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 522545802

MOUNT, SPRING, RAM SEAT, BLK

$36.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 522756803

PAN, SEAT, ORG
(Superseded to 525811503)

$

$

Not available

11

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539118102

CLIP-1.06

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

24

Husqvarna 539110469

KIT, ARMREST, ONLY FITS ON
(Superseded to 582384601)

$68.99

$

In Stock, only 1 left!

0

14

Husqvarna 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

16

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

13

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 522545402

SUPPORT, SEAT, FLAT ORANGE

$

$

Not available

15

Husqvarna 522596701

SEAT, 15", LS

$

$

Not available

20

Husqvarna 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 510182902

SUPPORT, REAR SEAT, BLACK

$66.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
