LSZ 5424 (965880901) - Husqvarna 54" Zero-Turn Mower (2008-11) Engine Plate Parts Diagram

54" Zero-Turn Mower

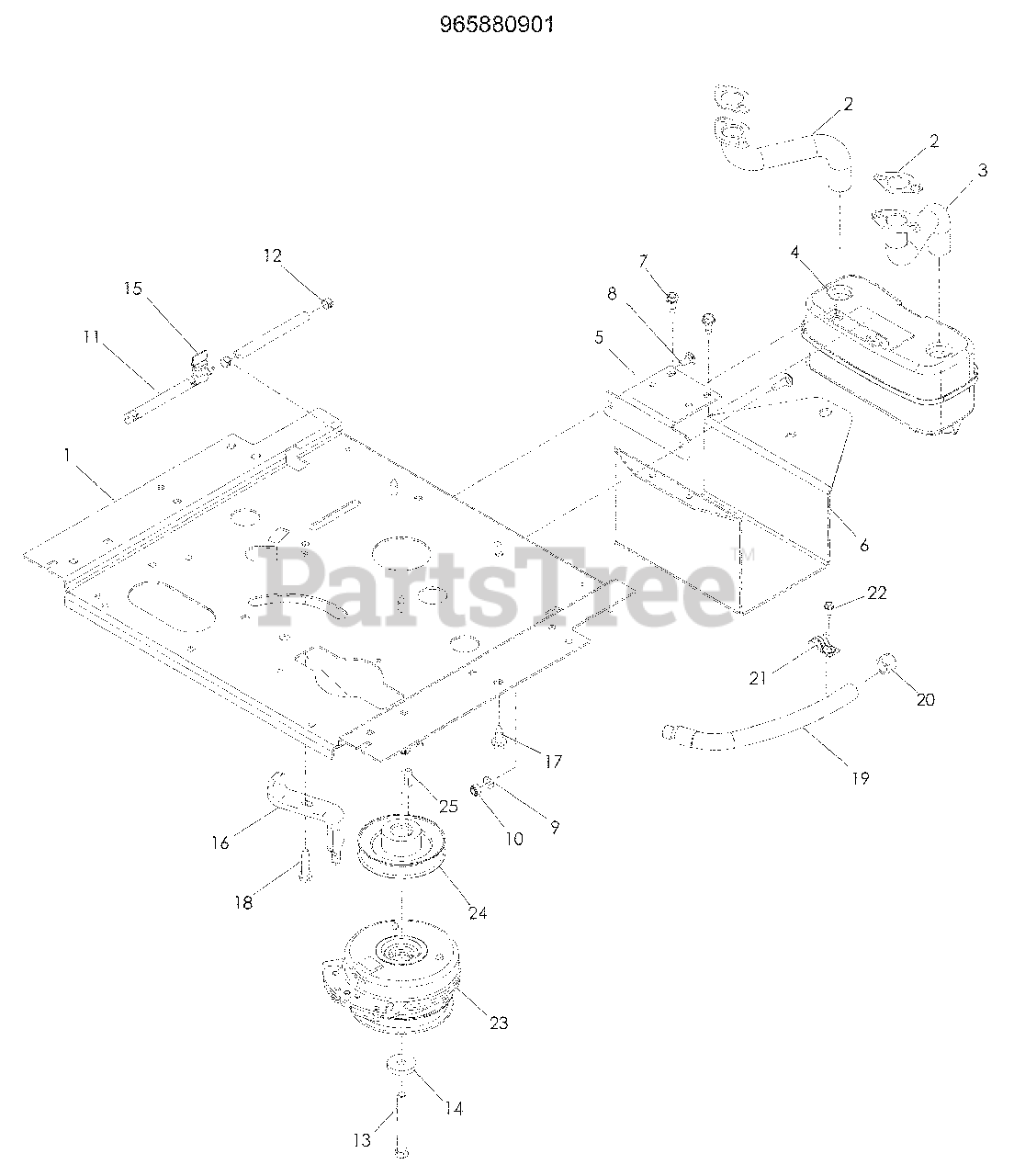

Engine Plate Parts Diagram

  • Title
1

Husqvarna 516007502

PLATE, ENGINE

$160.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532146699

EXHAUST TUBE, RT
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

3

Husqvarna 532146700

EXHAUST TUBE, LT
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

5

Husqvarna 510260402

BRACKET, MUFFLER
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 510260502

GUARD, MUFFLER

$91.99

$

In Stock, only 1 left!

0

7

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539976944

HCS 7/16-20 x 3½
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

14

Husqvarna 539110064

WASHER, CLUTCH
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

15

Husqvarna 539916325

VALVE, FUEL

$47.99

$

In Stock, only 1 left!

0

16

Husqvarna 522459702

STOP, CLUTCH

$

$

Not available

17

Husqvarna 532120616

HHFS 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 19

0

18

Husqvarna 539110025

BOLT 3/8-16 x 1½ THD FRM

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101362

HOSE, DRAIN

$47.99

$

Usually ships in 3-10 days

0

20

$7.49

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

23

Husqvarna 505287301

CLUTCH, 105 FT/LBS

$284.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539109639

PULLEY, DRIVE

$

$

Not available

25

Husqvarna 539105308

KEY ¼ SQ x 1

$4.99

$

In Stock, Qty 5

0

26

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

27

Husqvarna 539108199

GASKET, EXHAUST

$

$

Not available

Husqvarna 539105637

HARNESS, CLUTCH

Note: NOT SHOWN

$26.99

$

In Stock, Qty 6

0
