LSZ 5422 (965881001) - Husqvarna 54" Zero-Turn Mower (2008-11) Hydraulic Pump - Motor Parts Diagram

54" Zero-Turn Mower

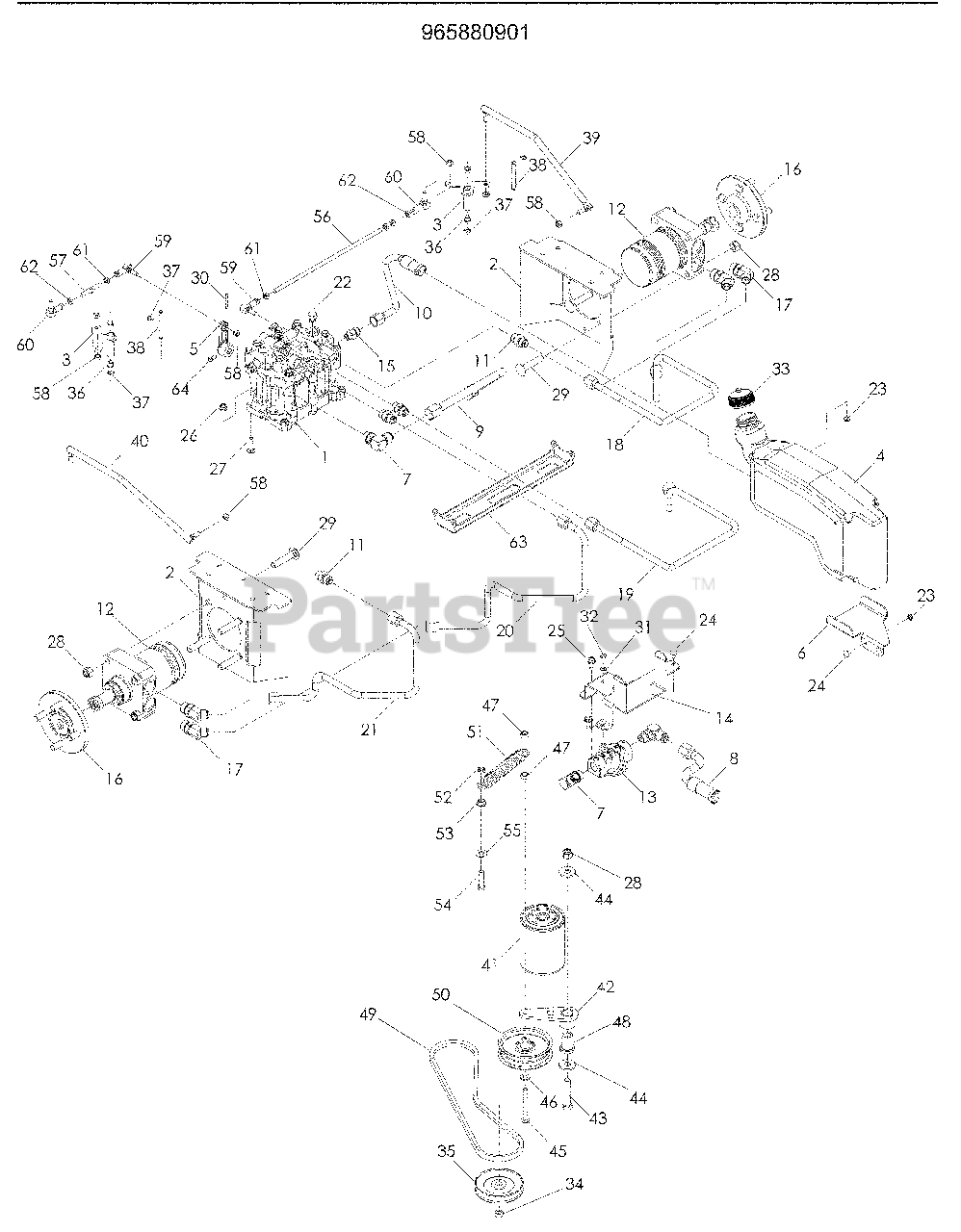

Hydraulic Pump - Motor Parts Diagram

  • Title

1

Husqvarna 539131657

PUMP, DUP10S

$2184.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522718902

MOUNT, WHEEL MOTOR

$94.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522897002

BELLCRANK, MOTION
(Superseded to 522897004)

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 515988501

RESERVOIR, HYDRAULIC

$70.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522773701

ARM, PUMP

$218.99

$

Usually ships in 3-10 days

0

6

Husqvarna 521920502

SUPPORT, RESERVOIR FT

$

$

Not available

7

Husqvarna 539106370

FITTING

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 521921101

LINE, HYD, SUCTION

$

$

Not available

9

Husqvarna 521921201

LINE, HYD, CHARGE

$

$

Not available

10

Husqvarna 521921001

LINE, HYD, CASE

$

$

Not available

11

Husqvarna 539101237

CONNECTOR, STRAIGHT

$12.99

$

In Stock, only 2 left!

0

12

Husqvarna 539103527

MOTOR

$

$

Not available

13

Husqvarna 539105892

FILTER HEAD

$

$

Not available

14

Husqvarna 521920402

SUPPORT, RESERVOIR RR

$

$

Not available

15

Husqvarna 539131748

FITTING, HYD

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539101109

HUB, WHEEL

$

$

Not available

17

Husqvarna 539101243

ELBOW 45O
(Superseded to 539132561)

$39.99

$

Usually ships in 3-10 days

0

18

Husqvarna 522719301

LINE, HYD, D

$42.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522719201

LINE, HYD, C

$46.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522719101

LINE, HYD, B

$

$

Not available

21

Husqvarna 522719001

LINE, HYD, A

$36.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539131895

PLUG, 6408-6

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108120

NUT ¼-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 539111777

RHSSNB ¼-20 x ½

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101331

NUT ½-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 521991501

RHSNB ½-13 x 2½

$

$

Not available

30

Husqvarna 539131559

PIN, SPIRAL 5/32 x 1½

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990052

WASHER ¼ SLW

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990072

HCS ¼-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 539101202

CAP, OIL

$24.99

$

In Stock, only 1 left!

0

34

Husqvarna 539131528

NUT, M10-1.5 L/H HEX

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539131727

PULLEY, PUMP

$

$

Not available

36

Husqvarna 539132735

BUSHING, BAIL 5/16

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539109303

RING RETAINING 5/16 EXT

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 522428201

PIN, MOTION

$

$

Not available

39

Husqvarna 522433101

LINKAGE, CONTROL LT

$

$

Not available

40

Husqvarna 522428301

LINKAGE, CONTROL RT

$

$

Not available

41

Husqvarna 539105893

FILTER, OIL

$37.99

$

In Stock, only 1 left!

0

42

Husqvarna 539112092

IDLER ARM WLDMT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 6

0

43

Husqvarna 539108346

HCS ½-13 x 2½

$5.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

45

Husqvarna 539101350

HCS 3/8-16 x 3 TAPBOLT

$6.49

$

In Stock, only 2 left!

0

46

Husqvarna 539990122

WASHER, 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 522432501

PIVOT, IDLER

$

$

Not available

49

Husqvarna 539106726

BELT

$34.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539115278

PULLEY, IDLER

$37.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539101977

SPRING, TRACTION

$17.99

$

In Stock, Qty 10

0

52

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

53

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539108046

HCS 3/8-16 x 1½ TAPBOLT

$

$

Not available

55

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 522433302

LINKAGE, CONTROL, RR LT

$

$

Not available

57

Husqvarna 522433202

LINKAGE, CONTROL, RR RT

$

$

Not available

58

Husqvarna 539109758

NUT 5/16-24 TOP LK

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539110603

SPHERICAL ROD END RH

$40.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539110604

SPHERICAL ROD END LH

$24.99

$

In Stock, only 1 left!

0

61

Husqvarna 539991073

NUT 5/16-24 HEX JAM LH

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539115502

NUT 5/16-24 HEX JAM

$3.99

$

In Stock, Qty 5

0

63

Husqvarna 522705503

SUPPORT, WHEEL MOTOR

$103.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539102717

SCREW 5/16-18 x 5/8 SET

$3.99

$

In Stock, only 4 left!

0
