LST 42 C - Husqvarna 42" Two Stage Snow Thrower Attachment (2008-01) 42" Snow Thrower (Part 2) Parts Diagram

42" Two Stage Snow Thrower Attachment

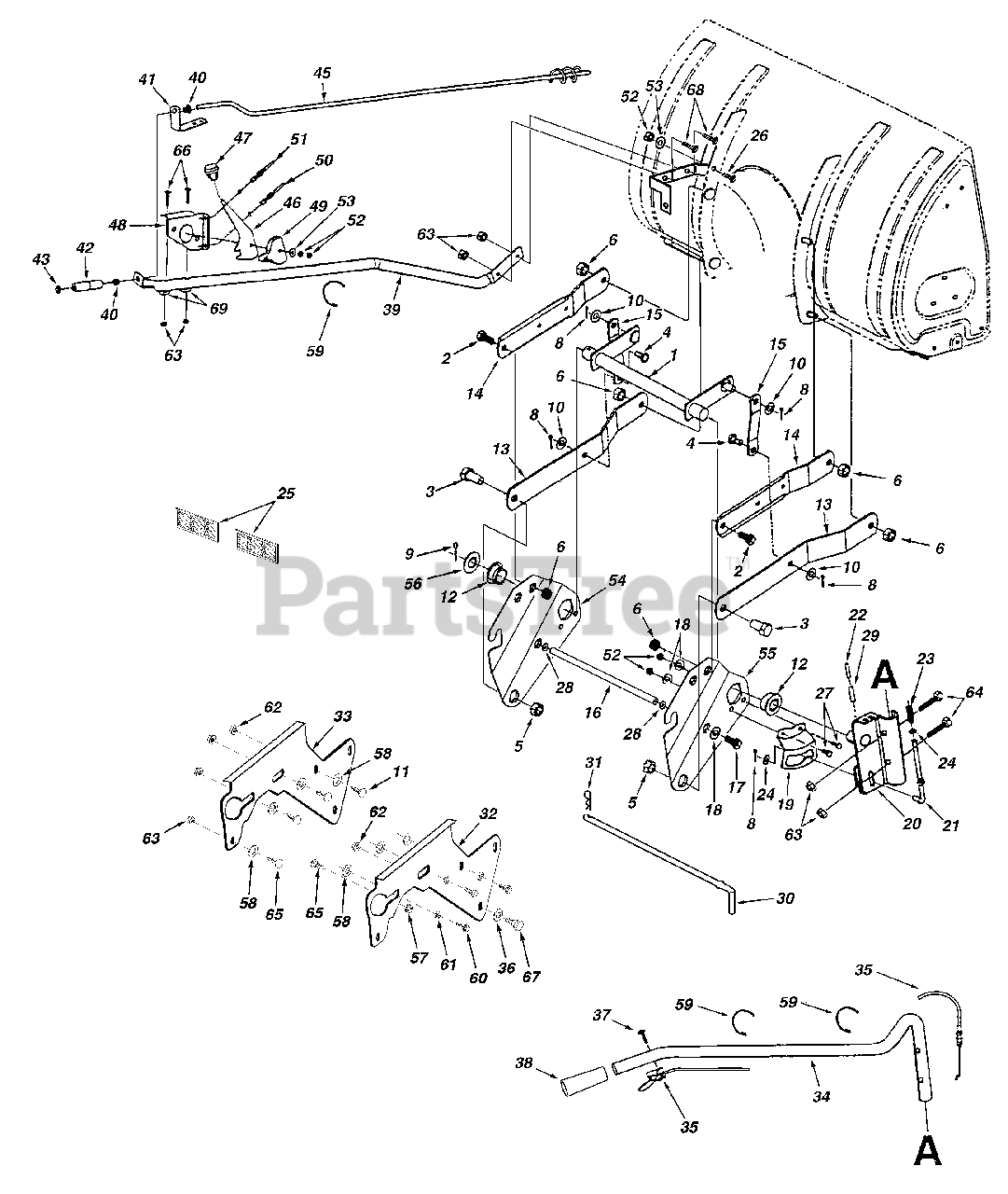

42" Snow Thrower (Part 2) Parts Diagram

  • Title

1

Husqvarna 64637

Lift Shaft Assembly

$

$

Currently unavailable

2

Husqvarna 7100865

Hex Bolt, 1/2-13 x 1"

$

$

Currently unavailable

3

Husqvarna 7100367

Hex Bolt, 5/8-11 x 1-1/2"

$

$

Currently unavailable

4

Husqvarna 7110332

Pin, Bracket Lift

$

$

Currently unavailable

5

7120261

Nut, Hex Lock 5/8-11 Thread

$

$

Not available

6

Husqvarna 43262

Nut, Hex Lock 1/2-13

$

$

Not available

8

Husqvarna 142

Pin, Cotter 1/8" x 3/4"

$

$

Currently unavailable

9

Husqvarna 43093

Pin, Cotter 1/8" x 1-1/2"

$

$

Currently unavailable

10

Husqvarna R19171616

Washer, 17/32" x 1"

$

$

Currently unavailable

11

Husqvarna 43350

Carriage Bolt, 3/8-16 x 1"

$

$

Not available

12

Husqvarna 7410192

Bearing, Flange With Flats

$

$

Currently unavailable

13

Husqvarna 7830380

Link, 15.80" Long

$

$

Currently unavailable

14

Husqvarna 7830381

Link, 11.75" Long

$

$

Currently unavailable

15

Husqvarna 24476

Link, 4.88" Long

$

$

Not available

16

Husqvarna 24311

Rod, Spacer

$

$

Currently unavailable

17

Husqvarna 47599

Hex Bolt, 5/16-18 x 1"

Note: (Locking)

$

$

Currently unavailable

18

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

19

Husqvarna 24820

Bracket, Lift

$

$

Currently unavailable

20

Husqvarna 63773

Assembly, Handle Lift Bracket

$

$

Currently unavailable

21

Husqvarna 48049

Rod, Index Lift

$

$

Not available

22

Husqvarna 47369

Pin, Spring 3/16" x 1-3/4"

$

$

Currently unavailable

23

Husqvarna 7320306

Spring, Compression

$

$

Currently unavailable

24

Husqvarna R19131316

Washer, 13/32" x 13/16"

$

$

Currently unavailable

25

Husqvarna 47788

Reflector, Rear

$

$

Currently unavailable

26

Husqvarna 43080

Carriage Bolt, 5/16-18 x 3/4"

$

$

Not available

27

Husqvarna 43182

Hex Bolt, 5/16-18 x 3/4"

$

$

Currently unavailable

28

Husqvarna R19111116

Washer, 11/32 x 11/16 x 3/64

$

$

Currently unavailable

29

Husqvarna 47368

Pin, Spring 5/16" x 1-3/4"

$

$

Currently unavailable

30

Husqvarna 46954

Pin, Attachment

$

$

Currently unavailable

31

Husqvarna 43343

Pin, Haircotter #4

Note: (1/8")

$

$

Not available

32

Husqvarna 25678

Plate, Side

Note: (R.H.)

$

$

Currently unavailable

33

Husqvarna 25679

Plate, Side

Note: (L.H.)

$

$

Currently unavailable

34

Husqvarna 49916

Tube, Lift Handle

$

$

Currently unavailable

35

Husqvarna 49912

Trigger and Lift Cable Assembly

$

$

Currently unavailable

36

Husqvarna 43070

Washer, 3/8"

$

$

Not available

37

Husqvarna 7101233

Screw, Oval #10-24 x 1"

$

$

Currently unavailable

38

Husqvarna 46446

Grip, Handle

$

$

Currently unavailable

39

Husqvarna 47027

Tube, Crank Rod Support

$

$

Currently unavailable

40

Husqvarna 7410475

Bushing, 3/8" Plastic

$

$

Currently unavailable

41

Husqvarna 7032735A

Bracket, Chute Crank

$

$

Currently unavailable

42

Husqvarna 7200201A

Knob, Crank

$

$

Currently unavailable

43

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

45

Husqvarna 63579

Assembly, Chute Crank Rod

$

$

Currently unavailable

46

Husqvarna 7845604A

Handle, Chute Tilt

$

$

Currently unavailable

47

Husqvarna 72004039

Knob

$

$

Currently unavailable

48

Husqvarna 6030302

Assembly, Chute Tilt Bracket

$

$

Currently unavailable

49

Husqvarna 7311313C

Guide, Cable

$

$

Currently unavailable

50

Husqvarna 7460928

Cable, Chute Control

$

$

Currently unavailable

51

Husqvarna 7460929

Cable, Chute Control with Clip

$

$

Currently unavailable

52

Husqvarna 43064

Nut, Hex Lock 5/16-18

$

$

Not available

53

Husqvarna 43081

Washer, 5/16"

$

$

Not available

54

Husqvarna 24285

Plate, Mounting

Note: (L.H.)

$

$

Currently unavailable

55

Husqvarna 24284

Plate, Mounting

Note: (R.H.)

$

$

Currently unavailable

56

Husqvarna 43601

Washer, 1.59" x 1.032" x .060"

$

$

Currently unavailable

57

Husqvarna 46584

Nut, Whizlock, 5/16-18

$

$

Currently unavailable

58

Husqvarna R19172410

Washer, 1/2"

$

$

Currently unavailable

59

7260178

Tie, Nylon

$

$

Not available

60

Husqvarna 47631

Hex Bolt, 3/8-16 x 1" Self Tap

$

$

Currently unavailable

61

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

62

Husqvarna 47572

Nut, Flanged Lock 3/8-16

$

$

Currently unavailable

63

Husqvarna 47810

Nut, Nylock Hex 5/16-18

$

$

Currently unavailable

64

Husqvarna 43084

Hex Bolt, 5/16-18 x 1-3/4"

$

$

Currently unavailable

65

Husqvarna 44326

Carriage Bolt, 5/16-18 x 1"

$

$

Currently unavailable

66

Husqvarna 44215

Carriage Bolt, 5/16-18 x 1-3/4"

$

$

Not available

67

Husqvarna 48106

Bolt, Shoulder

$

$

Not available

68

Husqvarna 43682

Carriage Bolt, 5/16-18 x 1-1/4"

$

$

Currently unavailable

69

Husqvarna 44695

Washer, Bowed

$

$

Currently unavailable
