LST 42 B - Husqvarna 42" Snow Thrower Attachment (2006-03) Drive Assembly Parts Diagram

42" Snow Thrower Attachment

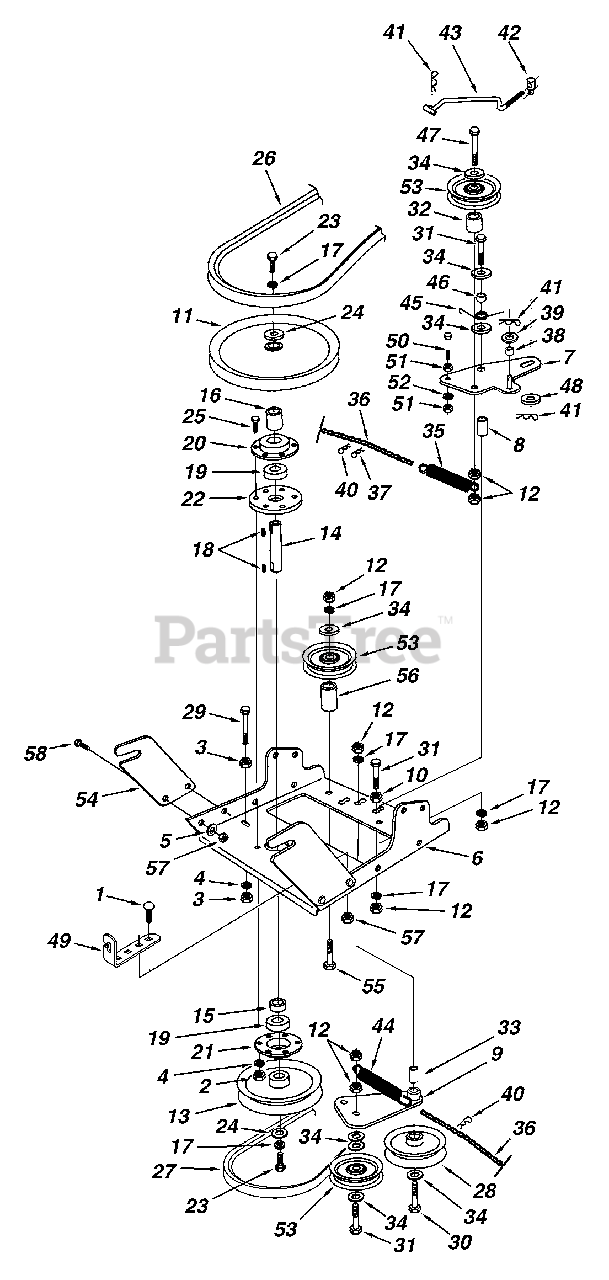

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 43080

Carriage Bolt, 5/16-18 x 3/4"

$

$

Not available

2

Husqvarna 43064

Hex Lock Nut, 5/16-18

$

$

Not available

3

Husqvarna 43083

Hex Nut, 5/16-18

$

$

Not available

4

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

5

Husqvarna 43081

Washer, 5/16" Std. Wrt.

$

$

Not available

6

Husqvarna 25727

Frame, Clutch and Pulley

$

$

Currently unavailable

7

Husqvarna 63904

Idler Arm Assembly

$

$

Currently unavailable

8

Husqvarna 24286

Spacer, Pivot

$

$

Currently unavailable

9

Husqvarna 63762

Idler Bracket Assembly

$

$

Currently unavailable

10

Husqvarna 43015

Hex Nut, 3/8-16

$

$

Not available

11

Husqvarna 46981

Pulley, V Type 9"

$

$

Currently unavailable

12

Husqvarna 43082

Nut, Hex Lock, 3/8-16

$

$

Not available

13

Husqvarna 46982

Pulley, V Type 5-1/2"

$

$

Currently unavailable

14

Husqvarna 7380680

Shaft

$

$

Currently unavailable

15

Husqvarna 7500456

Spacer

$

$

Currently unavailable

16

Husqvarna 7500660

Spacer

$

$

Currently unavailable

17

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

18

Husqvarna 7140161

Key

$

$

Currently unavailable

19

Husqvarna 7410919

Bearing, Ball

$

$

Currently unavailable

20

Husqvarna 08253B

Housing, Bearing

$

$

Currently unavailable

21

Husqvarna 15296A

Housing, Open Bearing

$

$

Currently unavailable

22

Husqvarna 14088B

Spacer, Spindle

$

$

Currently unavailable

23

Husqvarna 44377

Hex Bolt, 3/8-24 x 1"

$

$

Currently unavailable

24

Husqvarna 7360247

Washer

$

$

Currently unavailable

25

Husqvarna 43063

Hex Bolt, 5/16-18 x 1"

$

$

Not available

26

Husqvarna 46989

Belt, V Type Drive (55")

$

$

Currently unavailable

26

Husqvarna 48138

Belt, V Type Drive (56")

$

$

Not available

27

Husqvarna 47846

Belt, V Type Auger

$

$

Currently unavailable

28

Husqvarna 47044

Pulley, V Type 4"

$

$

Currently unavailable

29

Husqvarna 47025

Hex Bolt, 5/16-18 x 3-1/2"

$

$

Currently unavailable

30

Husqvarna 43432

Hex Bolt, 3/8-16 x 2-1/2"

$

$

Currently unavailable

31

Husqvarna 43054

Hex Bolt, 3/8-16 x 2"

$

$

Not available

32

Husqvarna 24571

Spacer

$

$

Currently unavailable

33

Husqvarna 24472

Spacer, Pivot

$

$

Currently unavailable

34

Husqvarna 43070

Washer, 3/8"

$

$

Not available

35

Husqvarna 46959

Spring

$

$

Currently unavailable

36

Husqvarna 46963

Chain

$

$

Currently unavailable

37

Husqvarna 43055

Pin, Hair Cotter, 3/32"

$

$

Currently unavailable

38

Husqvarna 23727

Spacer

$

$

Currently unavailable

39

Husqvarna 43088

Washer, 1/4"

$

$

Currently unavailable

40

Husqvarna 43343

Pin, Hair Cotter #4 (1/8")

$

$

Not available

41

Husqvarna 47134

Pin, Hair Cotter 5/64"

$

$

Currently unavailable

42

Husqvarna 7110198

Trunnion

$

$

Currently unavailable

43

Husqvarna 46948

Rod, Engagement

$

$

Currently unavailable

44

Husqvarna 47620

Spring

$

$

Currently unavailable

45

Husqvarna 47607

Spring, Torsion

$

$

Currently unavailable

46

Husqvarna 23625

Spacer

$

$

Currently unavailable

47

Husqvarna 43509

Hex Bolt, 3/8-16 x 2-3/4" Lg.

$

$

Currently unavailable

48

Husqvarna 47605

Washer, Flat 3/8"

$

$

Currently unavailable

49

Husqvarna 24558

Cable Bracket

$

$

Not available

50

Husqvarna 49870

Hex Bolt, 1/4-20 x 2-1/2"

$

$

Currently unavailable

51

Husqvarna 43178

Hex Nut, 1/4-20

$

$

Not available

52

Husqvarna 43177

Lock Washer, 1/4"

$

$

Not available

53

Husqvarna 48883

Pulley, Flat 3-5/8"

$

$

Currently unavailable

54

Husqvarna 25728

Rear Pulley Frame Bracket

$

$

Currently unavailable

55

Husqvarna 46938

Hex Bolt, 3/8-16 x 3-1/4"

$

$

Currently unavailable

56

Husqvarna 25780

Spacer

$

$

Currently unavailable

57

Husqvarna 47810

Hex Nut, 5/16-18 Nylock

$

$

Currently unavailable

58

Husqvarna 43182

Hex Bolt, 5/16-18 x 3/4"

$

$

Currently unavailable
