LST-2450 - Lesco String Trimmer (SN: 002507 - 007999) Engine, Crankcase, Fan Housing, Cover, Starter, Ignition Parts Diagram

String Trimmer

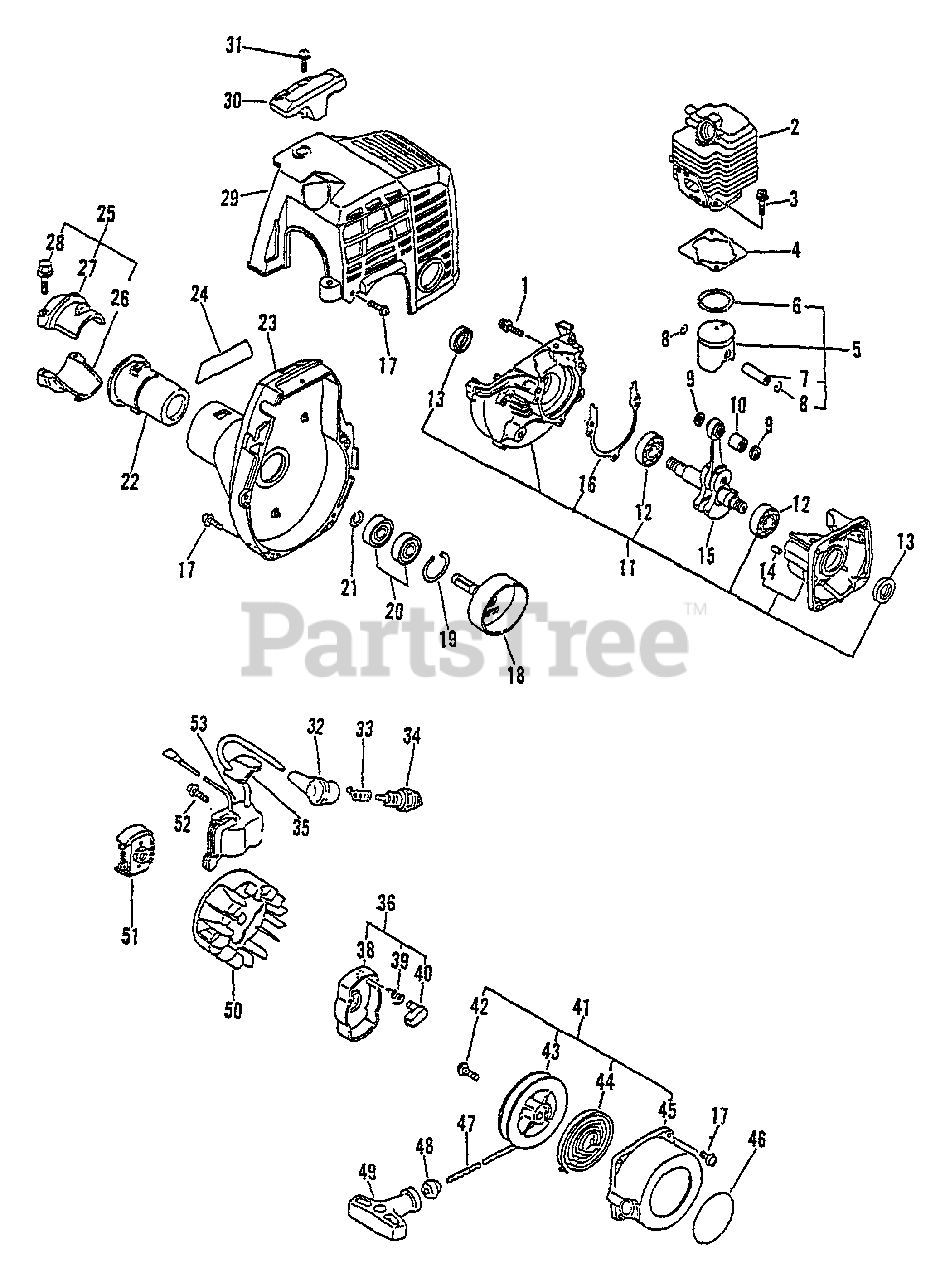

Engine, Crankcase, Fan Housing, Cover, Starter, Ignition Parts Diagram

  • Title

1

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

2

Echo 10101152130

CYLINDER
(Superseded to 10101109560)

$

$

Not available

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit 88900051030

$3.99

$

In Stock, only 4 left!

0

5

Echo 10000052130

PISTON KIT

Note: Includes ITEMS 6-8

$70.99

$

In Stock, only 1 left!

0

6

Echo 10001121230

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes Items 1, 12- 14, 16

$131.99

$

Usually ships in 2-4 days

0

12

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

$147.99

$

Usually ships in 2-4 days

0

16

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900051030

$

$

Not available

17

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

18

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$13.99

$

In Stock, Qty 6

0

19

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

20

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

23

Echo 10150353030

FAN CASE ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo 89011553130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes Items 26 - 28

$9.99

$

Usually ships in 2-4 days

0

26

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

27

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

28

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

29

Echo 10151453130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

30

Echo 15991248930

GUARD - TOP

$6.49

$

Usually ships in 2-4 days

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

33

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

34

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

35

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

36

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes Items 38 - 40

$16.99

$

In Stock, Qty 16

0

38

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

39

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

40

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

41

Echo 17720042031

STARTER ASSY
(Superseded to 17720042032)

Note: Includes Items 42 - 45, 48 - 50

$49.99

$

In Stock, Qty 20+

0

42

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

43

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 14

0

44

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

45

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

46

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

47

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, only 4 left!

0

48

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

49

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 18

0

50

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

51

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 5

0

52

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

53

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

53

Echo SB1024

SHORT BLOCK -- SB1024
(Superseded to SB1027)

$

$

Not available
