LST-2450 - Lesco String Trimmer (SN: 002507 - 007999) Carburetor Parts Diagram

String Trimmer

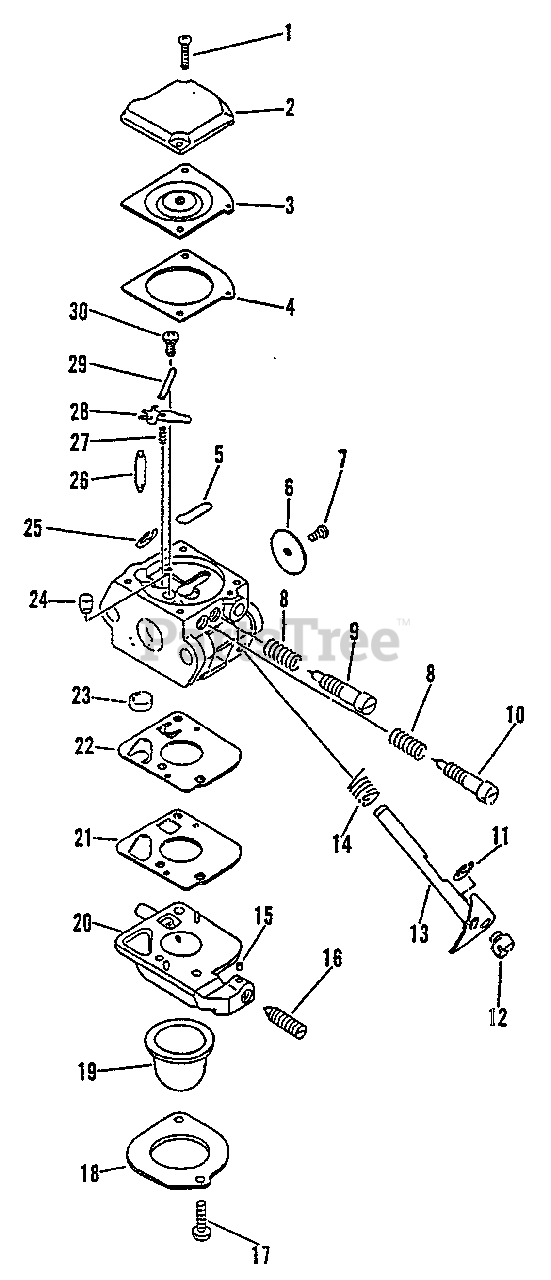

Carburetor Parts Diagram

  • Title

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: Includes ITEMS 1-30

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

4

------------------

GASKET, DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

5

------------------

PLUG, WELCH

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

6

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12531451230

SCREW

$1.49

$

In Stock, only 1 left!

0

8

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

9

Echo 12532051230

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

10

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

11

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

13

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

14

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

15

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

17

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 11

0

18

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 6

0

19

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

20

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

21

------------------

GASKET, PUMP

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

22

------------------

DIAPHRAGM, PUMP

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

23

------------------

STRAINER

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

24

Echo 12537651030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

25

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

26

------------------

VALVE, NEEDLE

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

27

------------------

SPRING

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

28

------------------

LEVER, METERING

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

29

------------------

PIN, METERING LEVER

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

30

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530051030

REPAIR KIT

$28.99

$

In Stock, only 1 left!

0

Echo 12530351030

DIAPHRAGM/GASKET KIT

$18.99

$

In Stock, Qty 7

0

Echo 88900051030

GASKET KIT

Note: INCLUDES THE FOLLOWING ITEMS

$21.99

$

Usually ships in 2-4 days

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

Echo 14586651030

GASKET, EXHAUST

$5.49

$

In Stock, only 2 left!

0

Echo 14551051030

GASKET, EXHAUST

$3.99

$

Usually ships in 2-4 days

0
