LST-2450 - Lesco String Trimmer (SN: 001001 - 002506) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

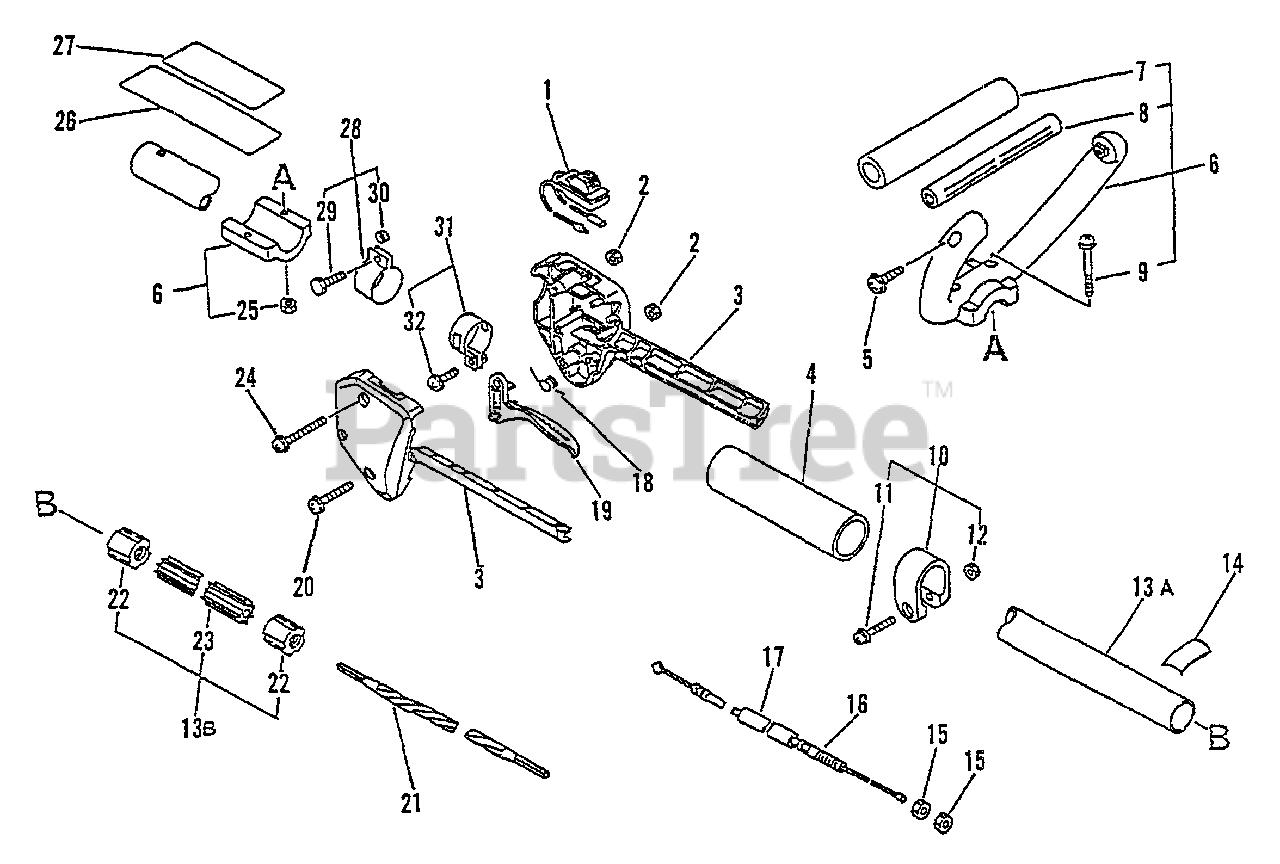

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes Items 2, 20 & 24

$4.99

$

In Stock, only 1 left!

0

4

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 1 left!

0

5

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: Includes Items 5, 7-9 & 25

$12.99

$

Usually ships in 2-4 days

0

7

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

8

Echo 35121051730

HANDLE

$4.49

$

Usually ships in 2-4 days

0

9

Echo 90024206035

SCREW - 6X35

$1.49

$

Usually ships in 2-4 days

0

10

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 11-12

$9.99

$

In Stock, only 1 left!

0

11

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 61060944730

MAIN PIPE ASSY

Note: Includes Items 22 & 23

$51.99

$

Usually ships in 2-4 days

0

14

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

16

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

17

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, Qty 5

0

18

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801053030

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

20

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

21

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 4 left!

0

22

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

23

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

24

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

25

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

26

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

27

Echo 89016052230

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

28

Echo 30120708930

CLAMP

Note: Includes Items 29 & 30

$4.99

$

In Stock, only 2 left!

0

29

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

30

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

31

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 32

$9.49

$

In Stock, only 1 left!

0

32

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0
