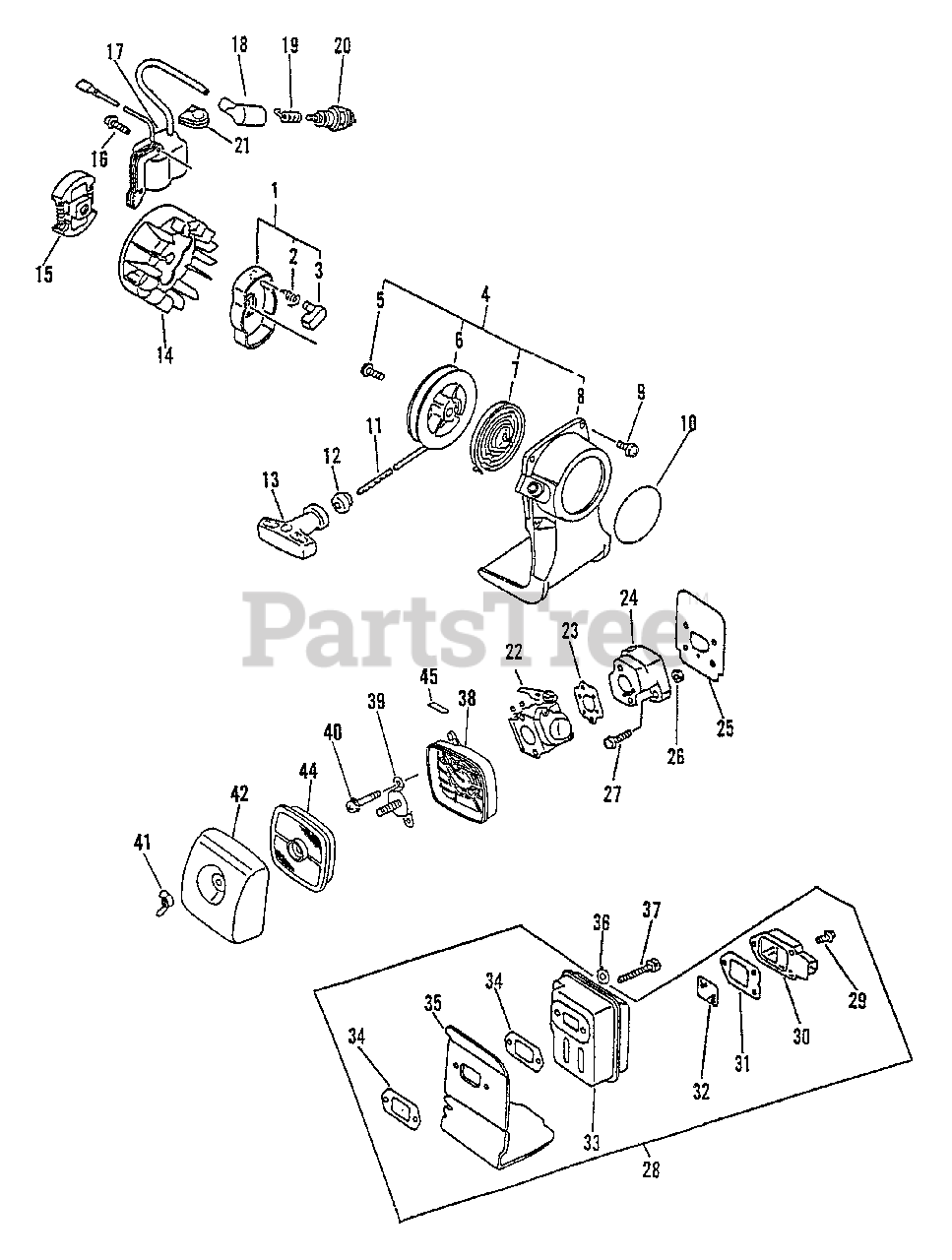

LST-2100 - Lesco String Trimmer (SN: 008650 - 999999) Exhaust, Ignition, Intake, Starter Parts Diagram

String Trimmer

Exhaust, Ignition, Intake, Starter Parts Diagram

  • Title

1

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes Items 2 & 3

$16.99

$

In Stock, Qty 16

0

2

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

4

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

Note: Includes Items 5-8, 11-13

$45.99

$

In Stock, Qty 20+

0

5

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

6

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 14

0

7

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

8

Echo 17723244333

CASE, STARTER - BLUE

$40.99

$

In Stock, only 1 left!

0

9

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

10

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

11

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, only 4 left!

0

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

13

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

14

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

15

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 5

0

16

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

17

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

18

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

19

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

20

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

22

Echo 12520050630

CARBURETOR C1U-K16
(Superseded to 12520050631)

$

$

Not available

23

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

24

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

25

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

26

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

28

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 29-35

$46.99

$

In Stock, only 1 left!

0

29

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

30

Echo 14580942030

GUIDE, EXHAUST - OUTER

$7.49

$

In Stock, only 1 left!

0

31

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

32

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

33

------------------

MUFFLER

Note: Order 14580042031, Not Serviced Separately

$

$

Not available

34

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

35

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

36

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

37

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

0

38

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$19.99

$

In Stock, only 3 left!

0

39

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 8

0

40

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

41

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

42

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

44

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

45

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

0
