LST-2100 - Lesco String Trimmer (SN: 004502 - 008649) Gear Case Assy, Shield, Tools Parts Diagram

String Trimmer

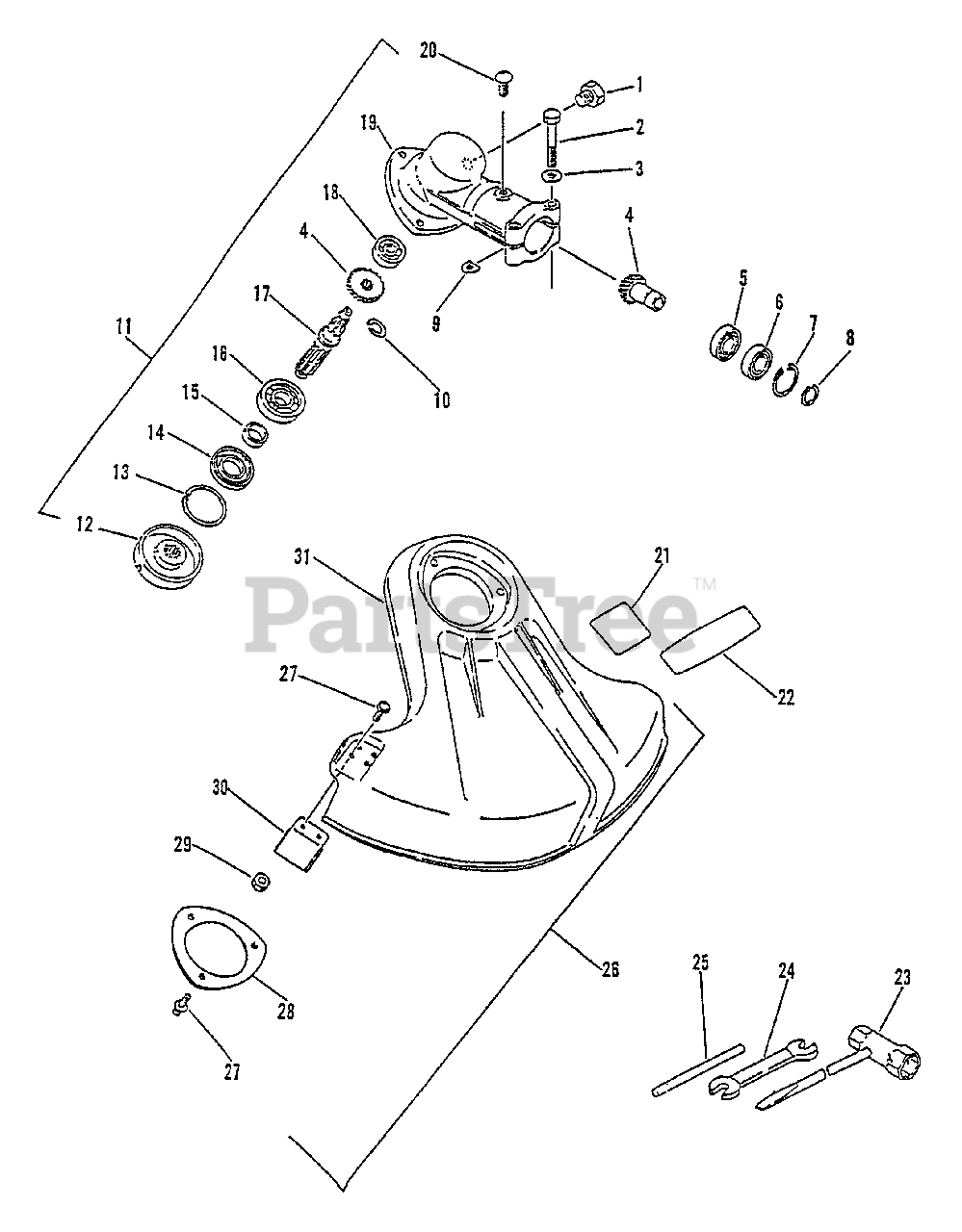

Gear Case Assy, Shield, Tools Parts Diagram

  • Title
1

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

2

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

6

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

7

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

8

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

$0.99

$

In Stock, Qty 10

0

10

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

Note: Includes Items 1 - 10, 12 - 20

$98.99

$

Usually ships in 2-4 days

0

12

Echo 61031347731

ADAPTOR, BLADE - UPPER

$12.99

$

In Stock, Qty 18

0

13

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

14

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

15

$3.99

$

In Stock, Qty 5

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

18

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

19

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 89016852230

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

22

Echo 89011552330

LABEL - LESCO
(Superseded to Discontinued)

$

$

Not available

23

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

24

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

25

Echo 89751801131

LOCKING TOOL

$

$

Not available

26

Echo 69900440931

DEBRIS SHIELD KIT

Note: Includes Items 27 - 31

$25.99

$

In Stock, only 4 left!

0

27

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

28

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.49

$

In Stock, Qty 12

0

29

$0.99

$

In Stock, Qty 20+

0

30

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

31

Echo 69901027231

SHIELD, DEBRIS - PLASTIC

$7.99

$

Usually ships in 2-4 days

0
