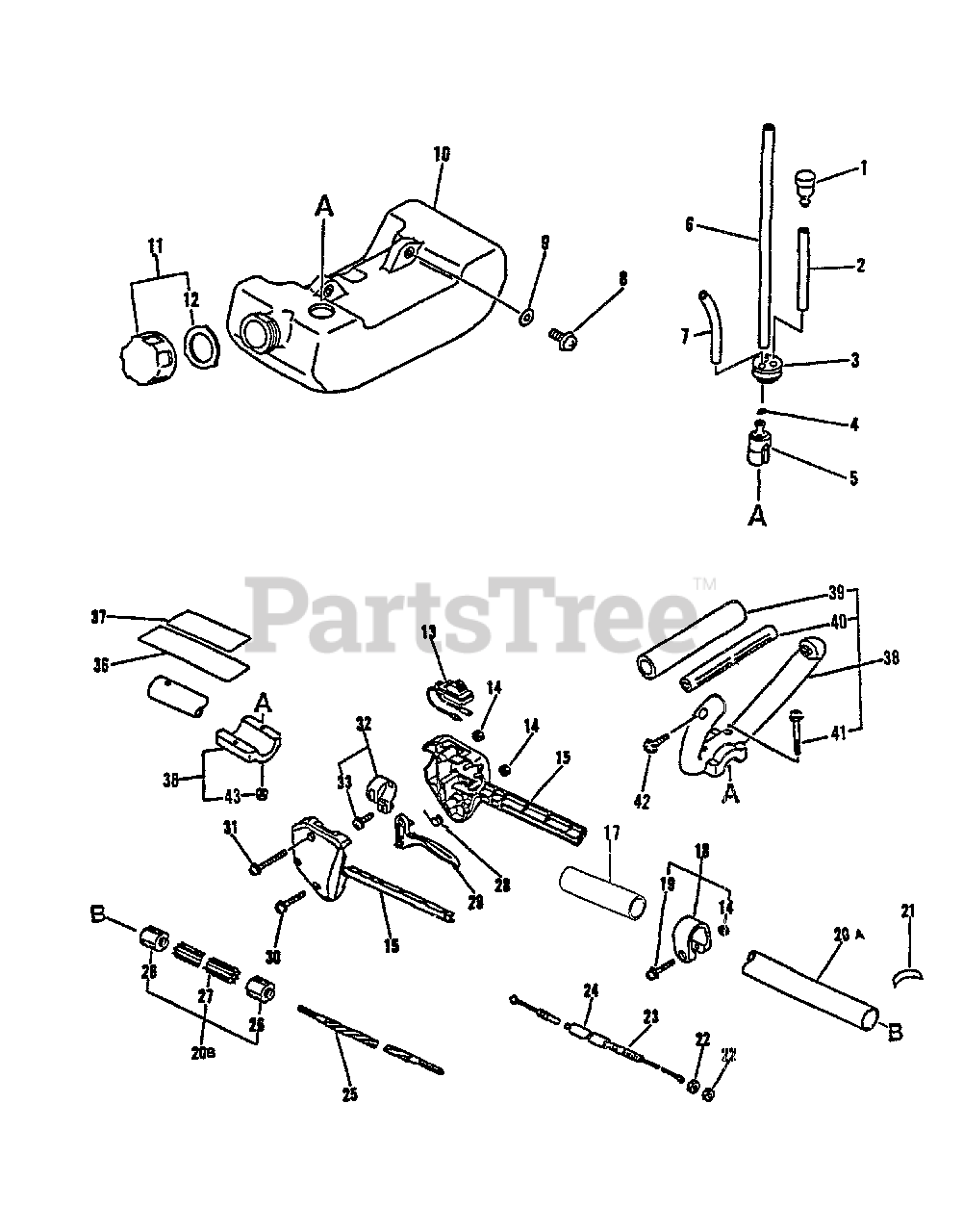

LST-2100 - Lesco String Trimmer (SN: 004502 - 008649) Driveshaft, Fuel System, Throttle Control Parts Diagram

String Trimmer

Driveshaft, Fuel System, Throttle Control Parts Diagram

  • Title

1

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

2

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

3

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

4

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

6

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

7

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

8

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$20.99

$

In Stock, only 1 left!

0

11

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 12

$7.49

$

In Stock, only 4 left!

0

12

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

13

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes Items 14, 30 & 31

$4.99

$

In Stock, only 1 left!

0

17

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

18

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 14-19

$9.99

$

In Stock, only 1 left!

0

19

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

20

Echo 61060944730

MAIN PIPE ASSY

Note: Includes Items 26 & 27

$51.99

$

Usually ships in 2-4 days

0

20A

Echo 61060944730

MAIN PIPE ASSY

Note: See Ref No. 20

$51.99

$

Usually ships in 2-4 days

0

20B

Echo 61060944730

MAIN PIPE ASSY

Note: See Ref No. 20

$51.99

$

Usually ships in 2-4 days

0

21

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

22

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 2 left!

0

23

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

24

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, Qty 5

0

25

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 2 left!

0

26

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

27

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

28

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

29

Echo 17801053030

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

30

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

32

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 33

$9.49

$

In Stock, only 1 left!

0

33

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

34

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

35

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

36

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available
