LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

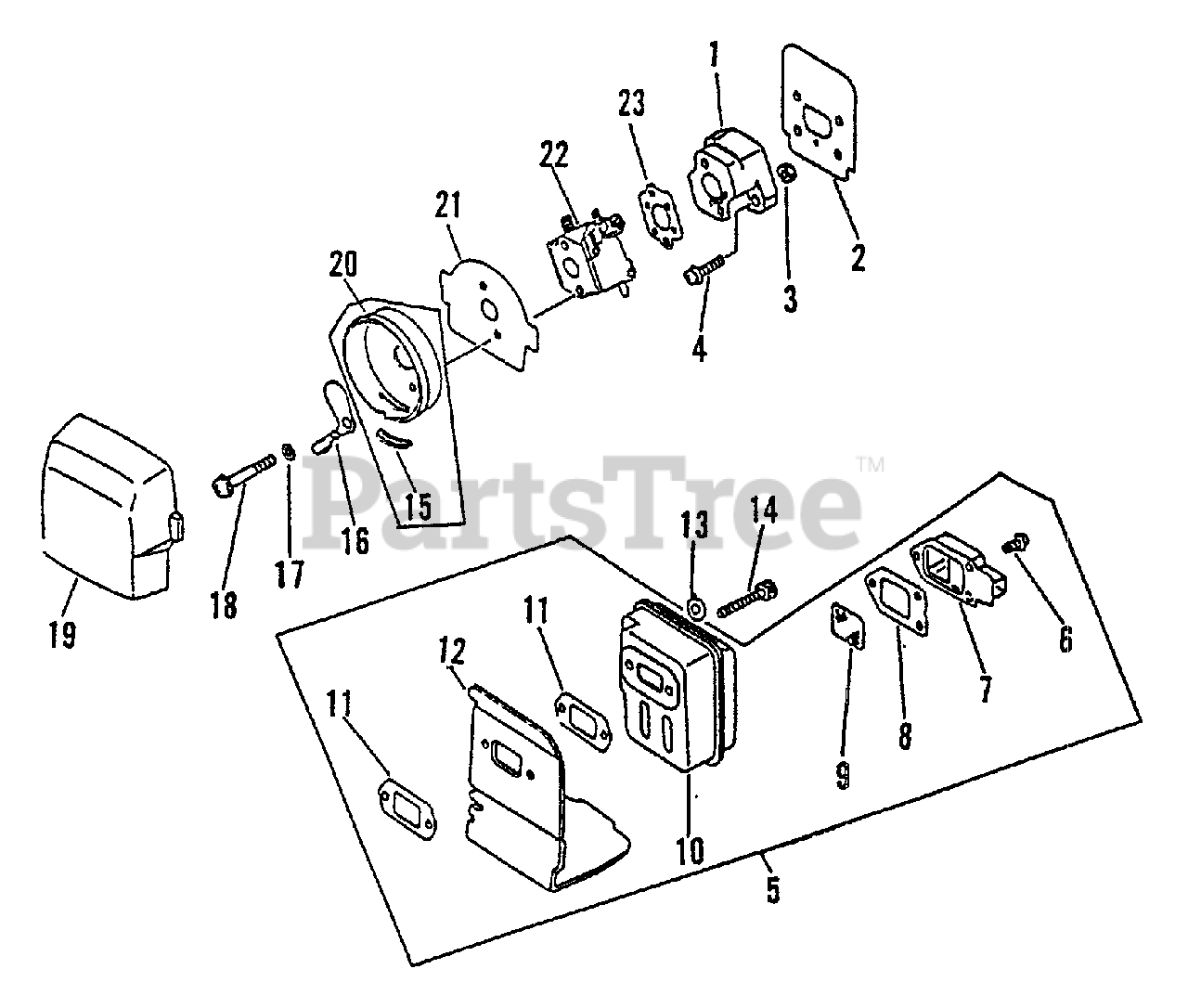

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

2

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

5

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: INCLUDES ITEMS 6 - 11

$46.99

$

In Stock, only 1 left!

0

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

7

Echo 14580942030

GUIDE, EXHAUST - OUTER

$7.49

$

In Stock, only 1 left!

0

8

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

9

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

10

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

11

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

12

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$4.99

$

In Stock, Qty 14

0

13

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

0

15

Echo 17881042030

GROMMET
(Superseded to Discontinued)

$

$

Not available

16

Echo 17851542030

SHUTTER, CHOKE

$2.49

$

Usually ships in 2-4 days

0

17

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

19

Echo 13031742030

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

20

Echo 13030142030

CASE, AIR FILTER

$6.99

$

Usually ships in 2-4 days

0

21

Echo 13031942030

GASKET, INTAKE

$

$

Not available

22

Echo 12520044730

CARBURETOR C1U-K9
(Superseded to 12520044731)

$

$

Not available

23

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0
