LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Ignition, Starter Parts Diagram

String Trimmer

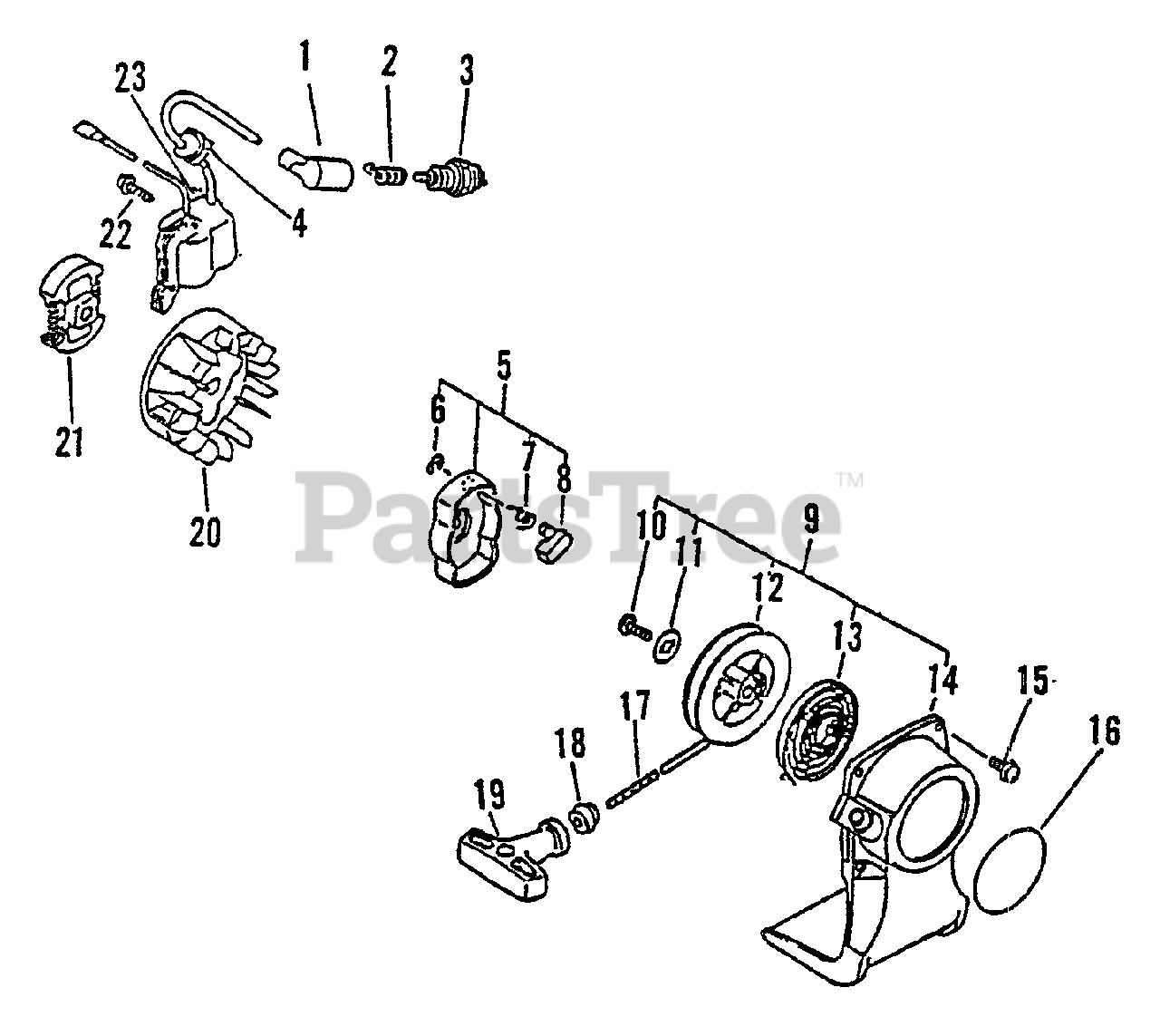

Ignition, Starter Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: Includes ITEMS 6-8

$16.99

$

In Stock, Qty 16

0

6

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

8

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

9

Echo 17720044331

STARTER ASSY
(Superseded to 17720044332)

Note: ITEMS 10-14, 17-19

$45.99

$

In Stock, Qty 20+

0

10

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

11

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

12

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 14

0

13

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

14

Echo 17723244331

CASE, STARTER - BLUE
(Superseded to 17723244332)

$40.99

$

In Stock, only 1 left!

0

15

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

16

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

17

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, only 4 left!

0

18

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

19

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

20

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

21

Echo 17500044330

CLUTCH ASSY
(Superseded to 17500042031)

$27.99

$

In Stock, Qty 5

0

22

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

23

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available
