LS 33 T (24AD597D711) - Troy-Bilt Log Splitter (2007) General Assembly Parts Diagram

Log Splitter

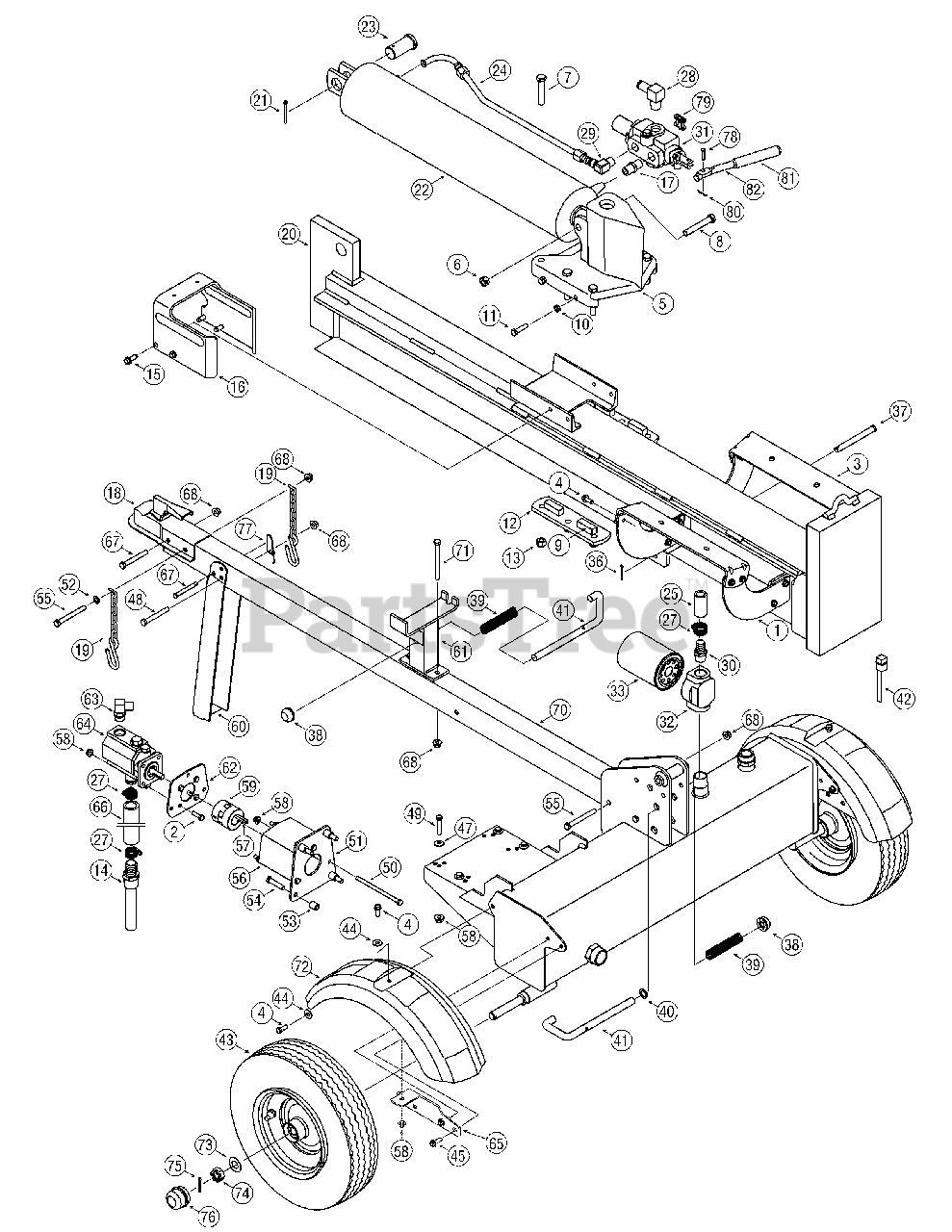

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 781-04180

Log Tray Bracket
(Superseded to 781-04180-0637)

Variations

Troy-Bilt 781-04180-0637

Log Tray Bracket, Black - POWDER BLACK (0637)

$35.99

$

In Stock, Qty 6

0

$35.99

$

In Stock, Qty 6

0

2

Troy-Bilt 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 781-04179

Log Tray Bracket
(Superseded to 781-04179-0637)

Variations

Troy-Bilt 781-04179-0637

Log Tray Cradle, Powder Black - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 7

0

$50.99

$

In Stock, Qty 7

0

4

Troy-Bilt 710-0650

Self-tap Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 719-0550A

Wedge Assembly

$245.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 712-3022

Lock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

8

Troy-Bilt 710-1806

Hex Cap Screw 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 17

0

10

Troy-Bilt 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

12

Troy-Bilt 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Troy-Bilt 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 712-3058

Hex Lock Nut, 1/2-20
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

14

Troy-Bilt 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 781-0525

Dislodger

Variations

Troy-Bilt 781-0525-0483

Dislodger - CHARCOAL GRAY (0483)

$140.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0525-0638

DISLODGER - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0525-0606

DISLODGER - MAJESTIC ORANGE (0606)

$122.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0525-0637

DISLODGER - POWDER BLACK (0637)

$140.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0525-0662

DISLODGER - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0525-4021

DISLODGER - CUB YELLOW 2 (4021)

$151.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 737-0238

Pipe Nipple

Note: (if equipped)

$25.99

$

In Stock, Qty 5

0

18

Troy-Bilt 681-04030

Hitch Coupler, 2-inch

$72.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 681-04080

Beam Assembly
(Superseded to 981-04080)

$

$

Not available

21

Troy-Bilt 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

22

Troy-Bilt 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Variations

Troy-Bilt 718-0313-0498

CYLINDER-LOGSPLITT - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 718-0313-0637

CYLINDER-LOGSPLITT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 718-0313-0638

CYLINDER-LOGSPLITT - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 718-0313-0662

CYLINDER-LOGSPLITT - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 718-0313-0674

CYLINDER-LOGSPLITT - YARDMAN YELLOW (0674)

$

$

Not available

$

$

23

Troy-Bilt 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 727-04166

Hydraulic Tube

$114.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 727-0443

Return Hose 3/4" ID x 44"

$118.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 781-0526A

Hose Guard

$53.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 718-0481A

Control Valve
(Superseded to 918-0481A)

$383.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 714-0470

Cotter Pin 1/8"

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

38

Troy-Bilt 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

39

Troy-Bilt 732-0583

Compression Spring 4"

$12.99

$

In Stock, Qty 18

0

40

Troy-Bilt 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 941-04089

Cone Bearing
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 18

0

43

Troy-Bilt 921-0168

Grease Retainer

Note: Not Shown

$9.49

$

In Stock, Qty 17

0

44

Troy-Bilt 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

45

Troy-Bilt 710-0602

Self-tap Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 681-04041A

Frame Assembly 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

Troy-Bilt 736-0242

Bell Washer, 340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 710-0521

Hex Cap Screw 3/8-16 x 3.00

$5.49

$

In Stock, Qty 11

0

49

Troy-Bilt 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

50

MTD 710-3226

Hex Cap Screw 5/16-18 x 5.50

$14.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 781-1100

Front Support Bracket Coupling
(Superseded to 781-1100-0637)

Variations

Troy-Bilt 781-1100-0637

PLATE-MOUNT PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

52

Troy-Bilt 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 711-0396

Spacer, .385 x .623 x .750

$11.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-3085

Hex Cap Screw 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 714-0114

Key
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 718-04135

Flex Coupling
(Superseded to 918-04135)

$

$

Not available

59

Troy-Bilt 718-04392

Coupling .5 Engine Side

Note: not shown

$14.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 718-04393

Coulping 1.0 Pump Side

Note: not shown

$

$

Not available

59

Troy-Bilt 735-04103

Bushing, Spider Coupling

Note: not shown

$14.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 710-1842

Set Screw
(Superseded to 710-1842A)

Note: not shown

$5.49

$

In Stock, only 2 left!

0

60

Troy-Bilt 781-0162

Jack Stand

Variations

Troy-Bilt 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

Troy-Bilt 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

Troy-Bilt 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

61

Troy-Bilt 681-0110

Support Beam Assembly
(Superseded to 681-0110-0637)

Variations

Troy-Bilt 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

62

Troy-Bilt 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Troy-Bilt 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 737-0264

Adapter 7/8-14

$

$

Not available

64

Troy-Bilt 718-04128

Pump
(Superseded to 918-04128)

$970.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 781-04174

Fender Mounting Bracket
(Superseded to 781-04174-0637)

Variations

Troy-Bilt 781-04174-0637

Fender Mounting Bracket - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 727-0451

Suction Hose

$107.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 711-0813

Clevis Pin, 5/16 x 2.5
(Superseded to 911-0813)

$6.99

$

In Stock, only 3 left!

0

68

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 781-0680B

Tube

Variations

Troy-Bilt 781-0680B-0498

TUBE-TONGUE - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 781-0680B-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0680B-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 781-0680B-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

Troy-Bilt 781-0680B-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 781-0680B-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 781-0680B-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$

$

Not available

Troy-Bilt 781-0680B-0689

TUBE-TONGUE - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 781-0680B-0716

TUBE:TNG: 2 X 3 CU - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 781-0680B-4021

TUBE-TONGUE - CUB YELLOW 2 (4021)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 710-0411

Hex Cap Screw 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

72

Troy-Bilt 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

75

Troy-Bilt 714-0162

Cotter Pin 5/32" x 1-1/4"

$4.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

77

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, Qty 11

0

78

Troy-Bilt 711-04585

Clevis Pin

$6.99

$

In Stock, Qty 13

0

79

Troy-Bilt 713-04036

Valve Handle Link
(Superseded to 913-04036)

$21.99

$

In Stock, only 2 left!

0

80

Troy-Bilt 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

81

Troy-Bilt 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0
