LS-33 T (24AD595C190) - White Outdoor Log Boss 33-Ton Log Splitter (2002) General Assembly Parts Diagram

Log Boss 33-Ton Log Splitter

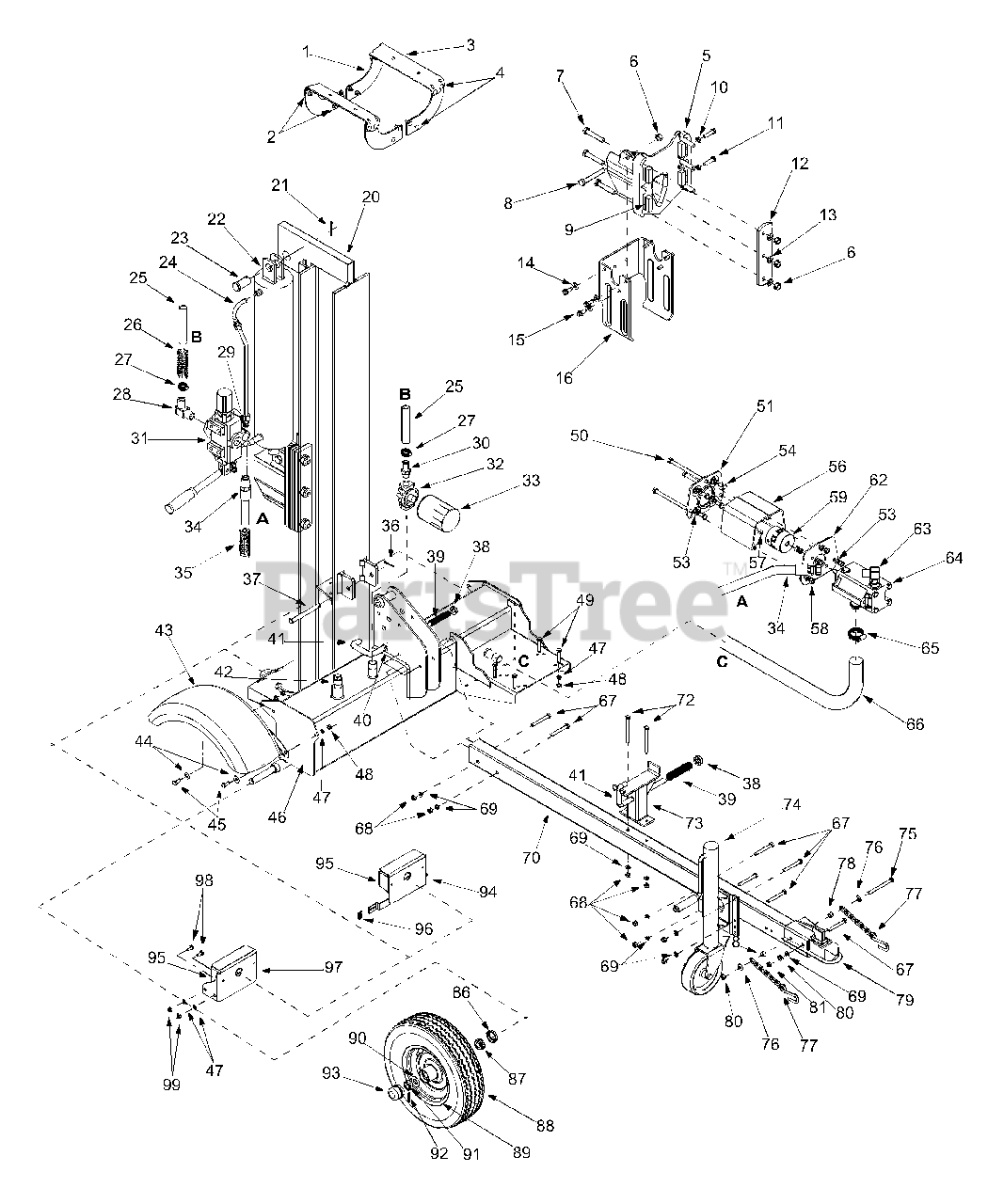

General Assembly Parts Diagram

  • Title

1

White Outdoor 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

White Outdoor 781-0686-0498

LOGSPLITTER TRAY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0686-0637

LOGSPLITTER TRAY BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 781-0682

Log Tray
(Superseded to 753-05424)

Variations

White Outdoor 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

5

White Outdoor 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

8

White Outdoor 710-0515

Hex Cap Screw 1/2-20 x 3.50

$11.99

$

Usually ships in 3-6 days

0

9

White Outdoor 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 17

0

10

White Outdoor 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

12

White Outdoor 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

White Outdoor 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

13

White Outdoor 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

14

White Outdoor 736-0300

Flat Washer .406 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 781-1048

Dislodger
(Superseded to 781-04426)

Variations

White Outdoor 781-1048-0637

Dislodger Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

20

White Outdoor 681-0129

Beam Assembly
(Superseded to 981-04080)

Variations

White Outdoor 681-0129-0637

BEAM ASSY-LOGSPLITTER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0129-0648

BEAM ASSY-LOGSPLITTER - TECH GRAY (0648)

$

$

Not available

White Outdoor 681-0129-0665

BEAM ASSY-LOGSPLITTER - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

White Outdoor 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

22

White Outdoor 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

White Outdoor 718-0313-0498

LOGSPLITTER CYLINDER 5 X 24 - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 718-0313-0637

LOGSPLITTER CYLINDER 5 X 24 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 718-0313-0638

LOGSPLITTER CYLINDER 5 X 24 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 718-0313-0662

LOGSPLITTER CYLINDER 5 X 24 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 718-0313-0674

LOGSPLITTER CYLINDER 5 X 24 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

White Outdoor 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$259.99

$

Usually ships in 3-6 days

0

22

White Outdoor 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

22

White Outdoor 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

22

White Outdoor 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

22

White Outdoor 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$252.99

$

Usually ships in 3-6 days

0

23

White Outdoor 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

24

White Outdoor 727-0471

Hydraulic Tube

$

$

Not available

25

White Outdoor 727-0443

Return Hose 3/4" ID x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

26

White Outdoor 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

27

White Outdoor 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

28

White Outdoor 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

29

White Outdoor 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

White Outdoor 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

White Outdoor 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

White Outdoor 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 1 left!

0

White Outdoor 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 1 left!

0

$383.99

$

In Stock, only 1 left!

0

32

White Outdoor 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

33

White Outdoor 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

34

White Outdoor 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

35

White Outdoor 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

36

White Outdoor 714-0470

Cotter Pin 1/8"

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

38

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

39

White Outdoor 732-0583

Compression Spring 4"

$12.99

$

In Stock, Qty 18

0

40

White Outdoor 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

41

White Outdoor 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

42

White Outdoor 737-0348

Vented Dipstick
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

43

White Outdoor 681-0138

Fender Assembly
(Superseded to 781-04000)

Variations

White Outdoor 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0138-0638

LOGSPLITTER FENDER-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

44

White Outdoor 736-0159

Washer 5/16

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 15

0

46

White Outdoor 681-0178

Frame Assembly 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

49

White Outdoor 710-0409

Hex Cap Screw 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

50

White Outdoor 710-1253

Hex Cap Screw 5/16-24 x 5.25

$

$

Not available

51

White Outdoor 781-0098A

Front Support Bracket Coupling
(Superseded to 781-0098A-0637)

Variations

White Outdoor 781-0098A-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

53

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-0237

Hex Cap Screw 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

56

White Outdoor 719-0315

Shoulder Spacer

$126.99

$

Usually ships in 3-6 days

0

57

White Outdoor 714-0114

Key, 1/4 x 2.00
(Superseded to 914-0114)

Note: for 1" diameter crankshaft

$4.49

$

Usually ships in 3-6 days

0

57

White Outdoor 714-0122

Key, 3/16 x .75

Note: for 7/8" diameter crankshaft

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 712-0123

Hex Screw 5/16
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

59

White Outdoor 718-04393

Coupling 1.00

Note: Not shown, for 1" diameter crankshaft, use with 718-04128

$

$

Not available

59

White Outdoor 718-04395

Coupling .875

Note: Not shown, for 7/8" diameter crankshaft, use with 718-04128

$18.99

$

In Stock, Qty 19

0

59

White Outdoor 718-04392

Coupling .500

Note: Not shown, use with 718-04128

$14.99

$

In Stock, Qty 20+

0

59

White Outdoor 735-04103

Bushing, Spider

Note: Not shown, use with 718-04128

$14.99

$

In Stock, Qty 20+

0

59

White Outdoor 718-0685

Flexible Coupling, 1.00 x .4375
(Superseded to 918-0685)

Note: use with 718-0684

$262.99

$

Usually ships in 3-6 days

0

62

White Outdoor 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

White Outdoor 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

63

White Outdoor 737-0264

Adapter 7/8-14

$

$

Not available

64

White Outdoor 718-0684

Gear Pump, Hyd (16 GPM)
(Superseded to 753-05195)

Note: No longer available, Furnish 753-05195

$1621.99

$

Usually ships in 3-6 days

0

64

White Outdoor 753-05195

Pump Kit

Note: includes pump and couplings

$1621.99

$

Usually ships in 3-6 days

0

64

White Outdoor 718-04128

Gear Pump, Hyd (15 GPM)
(Superseded to 918-04128)

$970.99

$

Usually ships in 3-6 days

0

65

White Outdoor 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

66

White Outdoor 727-0451

Suction Hose

$107.99

$

Usually ships in 3-6 days

0

67

White Outdoor 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

68

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

69

White Outdoor 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 781-0680A

Tube
(Superseded to 781-0680B)

Variations

White Outdoor 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

72

White Outdoor 710-0411

Hex Cap Screw 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

73

White Outdoor 681-0110

Support Beam Assembly
(Superseded to 681-0110-0637)

Variations

White Outdoor 681-0110-0637

SUPPORT ASSY. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

74

White Outdoor 681-0006

Adjustable Jack Stand
(Superseded to 981-04029)

$295.99

$

Usually ships in 3-6 days

0

75

White Outdoor 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

76

White Outdoor 736-0262

Flat Washer .385 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

77

White Outdoor 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

78

White Outdoor 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

79

White Outdoor 727-0311

Hitch Coupler

$

$

Not available

80

White Outdoor 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

81

White Outdoor 712-3008

Hex Jam Nut 3/8-16

$4.99

$

In Stock, Qty 16

0

86

White Outdoor 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

87

White Outdoor 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

88

White Outdoor 634-0187

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

89

634-0181

Rim Assembly

$

$

Not available

90

White Outdoor 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

92

White Outdoor 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

93

White Outdoor 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

94

White Outdoor 681-0074

Light Bracket Assembly LH
(Superseded to 681-0074-0637)

Variations

White Outdoor 681-0074-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

95

White Outdoor 625-0009

Tail Light Assembly

$

$

Not available

96

White Outdoor 712-0292

Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

97

White Outdoor 781-0624

Light Bracket Assembly RH
(Superseded to 781-0624-0637)

Variations

White Outdoor 781-0624-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

98

White Outdoor 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 15

0

99

White Outdoor 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0
