LS-33 T (24AD595C190) - White Outdoor Log Boss 33-Ton Log Splitter (1998) Complete Assembly Parts Diagram

Log Boss 33-Ton Log Splitter

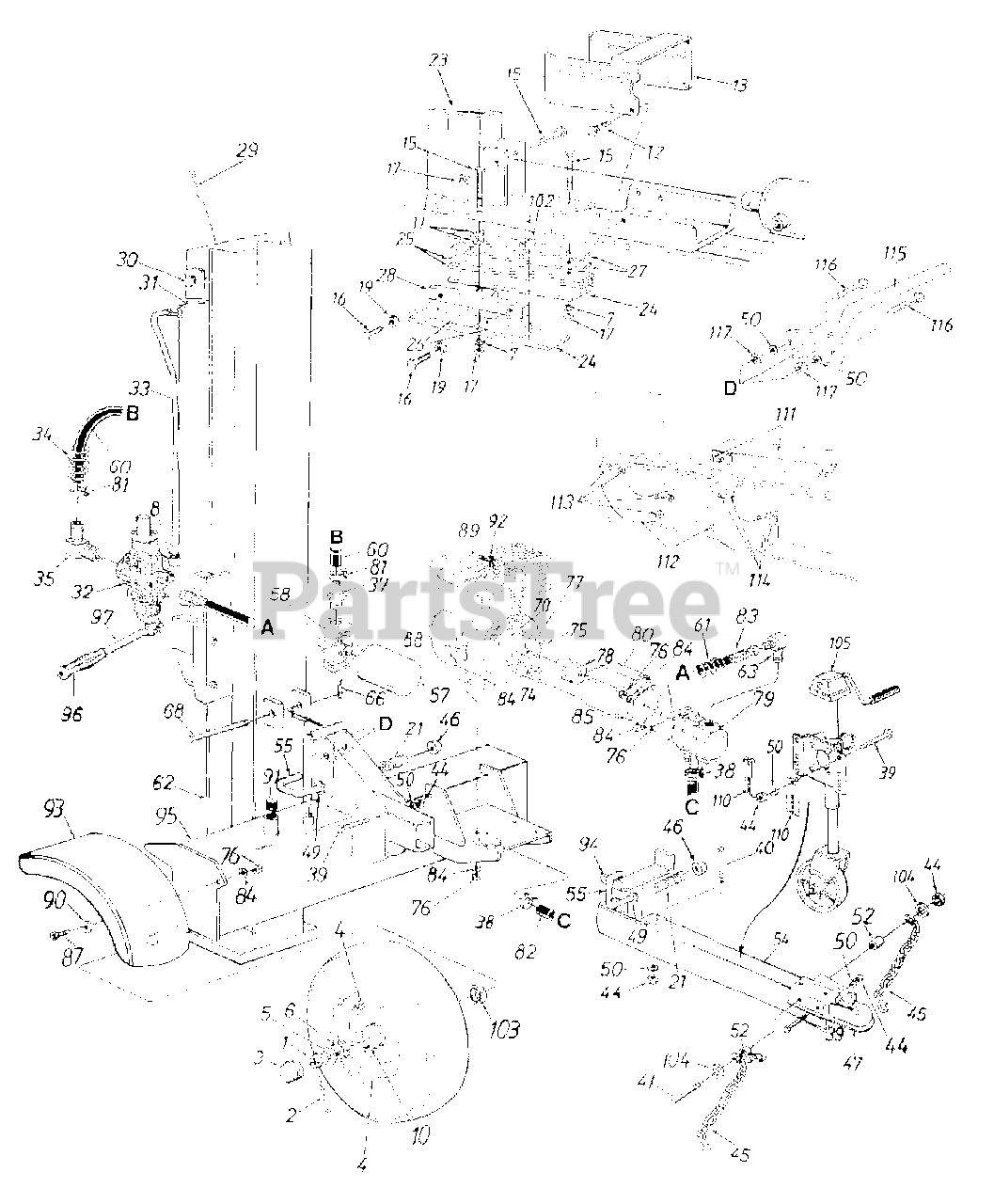

Complete Assembly Parts Diagram

  • Title

1

White Outdoor 712-0359

Slotted Nut 3/4-16 Thd.

$11.99

$

In Stock, only 1 left!

0

2

White Outdoor 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

4

White Outdoor 734-1016

Wheel Ass'y. Comp.
(Superseded to 634-0186)

Variations

White Outdoor 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1016-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-0872

Tire Only

Note: Not shown

$169.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-1017

Rim Only
(Superseded to 634-0188)

Note: Not shown

Variations

White Outdoor 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1017-0499

RIM-WHEEL 3.75 X 8.0 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

4

White Outdoor 734-0255

Air Valve Only
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 741-3028

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

7

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

8

White Outdoor 737-0192

90° Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

10

White Outdoor 741-3029

Bearing Cup
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 16

0

12

White Outdoor 710-0514

Hex Cap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 781-0525

Dislodger

Variations

White Outdoor 781-0525-0483

Dislodger - CHARCOAL GRAY (0483)

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0525-0638

DISLODGER - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0525-0606

DISLODGER - MAJESTIC ORANGE (0606)

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0525-0637

DISLODGER - POWDER BLACK (0637)

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0525-0662

DISLODGER - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0525-4021

DISLODGER - CUB YELLOW 2 (4021)

$151.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-1018

Hex Bolt 1/2-20 x 2.75" Lg. (Grade 8)

$11.99

$

In Stock, Qty 19

0

16

White Outdoor 710-1032

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

17

White Outdoor 712-0239

Hex L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3001

Hex Jam Nut 3/8-24 Thd. (Grade 5)
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

21

White Outdoor 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 18

0

23

White Outdoor 781-0323B

Wedge Ass'y.
(Superseded to 753-04120)

Variations

White Outdoor 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$342.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$342.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$342.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$342.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$342.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$342.99

$

Usually ships in 3-6 days

0

$342.99

$

Usually ships in 3-6 days

0

24

White Outdoor 781-0537

Back Plate

Variations

White Outdoor 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$44.99

$

In Stock, Qty 7

0

White Outdoor 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

White Outdoor 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

25

White Outdoor 781-0350A

Fixed Side Gib

Variations

White Outdoor 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

26

White Outdoor 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 17

0

27

White Outdoor 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

White Outdoor 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

$

$

28

White Outdoor 781-0356

Floating Gib Plate

Variations

White Outdoor 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

29

White Outdoor 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

30

White Outdoor 711-1135

Cylinder Mounting Pin

$62.99

$

Usually ships in 3-6 days

0

31

White Outdoor 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

White Outdoor 718-0313-0498

LOGSPLITTER CYLINDER 5 X 24 - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 718-0313-0637

LOGSPLITTER CYLINDER 5 X 24 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 718-0313-0638

LOGSPLITTER CYLINDER 5 X 24 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 718-0313-0662

LOGSPLITTER CYLINDER 5 X 24 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 718-0313-0674

LOGSPLITTER CYLINDER 5 X 24 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

31

White Outdoor 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$259.99

$

Usually ships in 3-6 days

0

31

White Outdoor 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

31

White Outdoor 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

31

White Outdoor 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

31

White Outdoor 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$252.99

$

Usually ships in 3-6 days

0

32

White Outdoor 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

White Outdoor 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 1 left!

0

White Outdoor 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 1 left!

0

$383.99

$

In Stock, only 1 left!

0

33

White Outdoor 727-0471

Metal Pressure Tube

$

$

Not available

34

White Outdoor 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

35

White Outdoor 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

37

White Outdoor 737-0235

3/4" Hose Barb.

$23.99

$

In Stock, only 2 left!

0

38

White Outdoor 726-0174

Hose Clamp 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0521

Hex Bolt 3/8-16 x 3" Lg. (Grade 8)

$5.49

$

In Stock, Qty 11

0

40

White Outdoor 710-0411

Hex Bolt 3/8-16 x 4.75" Lg.

$8.49

$

In Stock, Qty 17

0

41

White Outdoor 710-0944

Hex Bolt 3/8-16 x 4.25" Lg.

$10.99

$

In Stock, Qty 12

0

?43

White Outdoor 712-0798

Hex Lock Nut

$4.49

$

In Stock, Qty 6

0

44

White Outdoor 712-0375

Lock Nut 3/8-16 (585)

$4.49

$

In Stock, Qty 6

0

45

White Outdoor 713-0433

Chain-Tow Hitch
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

46

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

47

White Outdoor 727-0311

Hitch Coupler

$

$

Not available

49

White Outdoor 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

50

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 750-0497

Spacer .445" Lg.

$10.99

$

Usually ships in 3-6 days

0

54

White Outdoor 781-0680

Tongue Tube
(Superseded to 781-0680B)

Variations

White Outdoor 781-0680-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0680-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0680-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0680-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0680-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

55

White Outdoor 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

57

White Outdoor 723-0405

Filter Element
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

58

White Outdoor 723-0406

Filter Head
(Superseded to 681-0179)

$

$

Not available

60

White Outdoor 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

61

White Outdoor 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

62

White Outdoor 681-0129

Vertical Beam Weldment
(Superseded to 981-04080)

Variations

White Outdoor 681-0129-0637

BEAM ASSY-LOGSPLITTER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0129-0648

BEAM ASSY-LOGSPLITTER - TECH GRAY (0648)

$

$

Not available

White Outdoor 681-0129-0665

BEAM ASSY-LOGSPLITTER - YARDMAN GREEN (0665)

$

$

Not available

$

$

63

White Outdoor 737-0264

90 degree Adapter (Male)

$

$

Not available

66

White Outdoor 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

70

White Outdoor 781-0098

Front Coupling Support Brkt.
(Superseded to 781-0098A-0637)

Variations

White Outdoor 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

74

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

75

White Outdoor 710-1253

Hex Bolt 5/16-24 x 5.25" Lg.

$

$

Not available

76

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

77

White Outdoor 714-0114

Sq.-Key 1/4" x 2" Lg.
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

78

White Outdoor 717-0462

Flexible Coupling

$

$

Not available

79

White Outdoor 718-0477

Gear Pump
(Superseded to 753-05195)

$1621.99

$

Usually ships in 3-6 days

0

80

White Outdoor 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

81

White Outdoor 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

82

White Outdoor 727-0451

Suction Hose 1" I.D.

$107.99

$

Usually ships in 3-6 days

0

83

White Outdoor 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

84

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

85

White Outdoor 781-0097

Rear Coupling Support Brkt.
(Superseded to 781-0097-0637)

Variations

White Outdoor 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

87

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

88

White Outdoor 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

89

Engine

$

$

Not available

90

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 737-0236

L-Vent Pipe Plug
(Superseded to 737-0348A)

$23.99

$

Usually ships in 3-6 days

0

92

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

93

White Outdoor 681-0138

Fender
(Superseded to 781-04000)

Variations

White Outdoor 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0138-0638

LOGSPLITTER FENDER-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

94

White Outdoor 781-0398

Support Ass'y.

Variations

White Outdoor 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

White Outdoor 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0398-0498

SUPPORT ASSY-BEAM - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0398-0716

SUPPORT ASSY-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

95

White Outdoor 681-0103A

Frame Weldment

Variations

White Outdoor 681-0103A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0103A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0103A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

96

White Outdoor 720-0235

Grip
(Superseded to 720-04088)

$10.99

$

Usually ships in 3-6 days

0

97

White Outdoor 747-0583

Control Handle
(Superseded to 947-0583)

$129.99

$

In Stock, only 3 left!

0

102

White Outdoor 750-0750

Spacer 1/2" I.D. x .86" Lg.
(Superseded to 950-0750)

$

$

Not available

103

White Outdoor 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

104

White Outdoor 736-0262

Fl-Wash. 3/8" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

105

White Outdoor 681-0006

Jack Stand
(Superseded to 981-04029)

$295.99

$

Usually ships in 3-6 days

0

110

White Outdoor 781-0558

Jack Stand Brkt.

Variations

White Outdoor 781-0558-0498

BRACKET-JACKSTAND - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0558-0637

BRACKET-JACKSTAND - POWDER BLACK (0637)

$

$

Not available

$

$

111

White Outdoor 781-0682

Log Cradle
(Superseded to 753-05424)

Variations

White Outdoor 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

112

White Outdoor 781-0686

Cradle Support Brkt.
(Superseded to 753-05423)

Variations

White Outdoor 781-0686-0498

LOGSPLITTER TRAY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0686-0637

LOGSPLITTER TRAY BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

113

White Outdoor 712-0431

Flanged Lock Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

114

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

115

White Outdoor 681-0089

Engine Guard

Variations

White Outdoor 681-0089-0483

GUARD ENGINE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0089-0637

GUARD ENGINE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0089-0638

No Longer Available GUARD ENGINE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0089-0648

No Longer Available GUARD ENGINE - TECH GRAY (0648)

$

$

Not available

White Outdoor 681-0089-0665

No Longer Available GUARD ENGINE - YARDMAN GREEN (0665)

$

$

Not available

$

$

116

White Outdoor 710-0514

Hex Bolt 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

117

White Outdoor 712-3017

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 290-004-000

Taillight Kit

Note: Not shown, optional equipment

$

$

Not available
