LS 33 C (24AD598A710) - Cub Cadet Log Splitter (2005-2) General Assembly Parts Diagram

Log Splitter

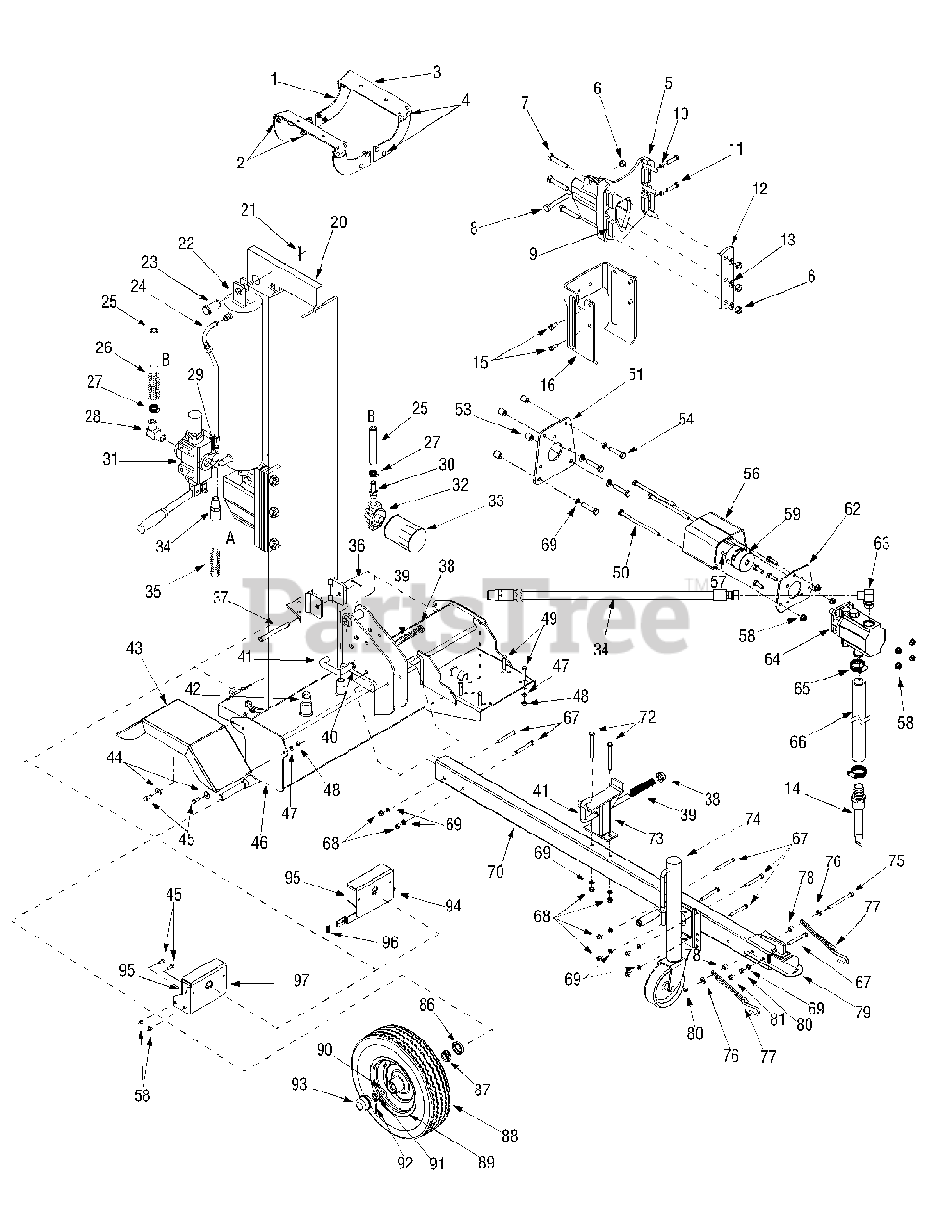

General Assembly Parts Diagram

  • Title

1

Cub Cadet 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 781-0682

Log Tray
(Superseded to 753-05424)

Variations

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

5

Cub Cadet 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3022

Lock Nut 1/2-13

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

8

Cub Cadet 710-1806

Hex Cap Screw 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

12

Cub Cadet 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Cub Cadet 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 5

0

14

Cub Cadet 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 781-0525

Dislodger

Variations

Cub Cadet 781-0525-0483

Dislodger - CHARCOAL GRAY (0483)

$140.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0638

DISLODGER - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0606

DISLODGER - MAJESTIC ORANGE (0606)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0637

DISLODGER - POWDER BLACK (0637)

$140.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-0662

DISLODGER - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0525-4021

DISLODGER - CUB YELLOW 2 (4021)

$151.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 681-0129

Beam Assembly
(Superseded to 981-04080)

Variations

Cub Cadet 681-0129-0637

USE 981-04080 BEAM ASM-LOGSPL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0129-0648

USE 981-04080 BEAM ASM-LOGSPL - TECH GRAY (0648)

$

$

Not available

Cub Cadet 681-0129-0665

USE 981-04080 BEAM ASM-LOGSPL - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

Cub Cadet 714-0211

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 718-0313

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replace with 718-0313A

Variations

Cub Cadet 718-0313-0498

USE 918-0313A CYLINDER-LOGSPL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 718-0313-0637

USE 918-0313A CYLINDER-LOGSPL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 718-0313-0638

USE 918-0313A CYLINDER-LOGSPL - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 718-0313-0662

USE 918-0313A CYLINDER-LOGSPL - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 718-0313-0674

USE 918-0313A CYLINDER-LOGSPL - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

Cub Cadet 753-0564

Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$259.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-0691

Kit Seal 5.0" for Best Metals cylinder 718-0313

Note: BEST cylinders will have "BM" or "BEST" cast into the end cap.

$

$

Not available

22

Cub Cadet 718-0313A

Hydraulic Cylinder
(Superseded to 918-0313A)

Note: replaces 718-0313

$

$

Not available

22

Cub Cadet 953-05609

Kit Seal 5.0" for XINGHUI cylinder 718-0313A

Note: See Service Kit 753-05609

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 953-05610

Kit Seal 5.0" for ENERGY cylinder 718-0313A

Note: See Service Kit 753-05610

$252.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 727-0471

Hydraulic Tube

$

$

Not available

25

Cub Cadet 727-0443

Return Hose 3/4" ID x 44"

$118.99

$

In Stock, only 1 left!

0

26

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 1 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 1 left!

0

$383.99

$

In Stock, only 1 left!

0

32

Cub Cadet 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, only 4 left!

0

34

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 714-0470

Cotter Pin 1/8"

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

38

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

39

Cub Cadet 732-0583

Compression Spring 4"

$12.99

$

In Stock, only 1 left!

0

40

Cub Cadet 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

42

Cub Cadet 737-0348

Vented Dipstick
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

43

Cub Cadet 781-04002-0716

Fender

$166.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

45

Cub Cadet 710-3038

Hex Cap Screw 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

46

Cub Cadet 681-04041

Frame Assembly 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0409

Hex Cap Screw 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-3226

Hex Cap Screw 5/16-18 x 5.50

$14.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 781-1100

Front Support Bracket Coupling
(Superseded to 781-1100-0637)

Variations

Cub Cadet 781-1100-0637

PLATE-MOUNT PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 711-0396

Spacer, .385 x .623 x .750

$11.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

56

Cub Cadet 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 714-0114

Key
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

58

Cub Cadet 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 718-04135

Flex Coupling
(Superseded to 918-04135)

$

$

Not available

59

Cub Cadet 718-04392

Coupling .5 Pump Side

$14.99

$

In Stock, only 2 left!

0

59

Cub Cadet 718-04393

Coupling 1.0 Engine Side

$

$

Not available

59

Cub Cadet 735-04103

Bushing, Spider Coupling

$14.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-1842

Set Screw
(Superseded to 710-1842A)

$5.49

$

In Stock, only 1 left!

0

62

Cub Cadet 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

63

Cub Cadet 737-0264

Adapter 7/8-14

$

$

Not available

64

Cub Cadet 718-04128

Pump
(Superseded to 918-04128)

$970.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 726-0132

Hose Clamp

$15.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 727-0451

Suction Hose

$107.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 10

0

68

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

69

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 781-0680A

Tube
(Superseded to 781-0680B)

Variations

Cub Cadet 781-0680A-0483

USE 781-0680B-0483 TUBE-TONGU - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0680A-0498

USE 781-0680B-0637 TUBE-TONGU - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0680A-0637

USE 781-0680B-0637 TUBE-TONGU - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0680A-0638

USE 781-0680B-0637 TUBE-TONGU - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0680A-0648

USE 781-0680B-0637 TUBE-TONGU - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0680A-0650

USE 781-0680B-0637 TUBE-TONGU - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0680A-0662

USE 781-0680B-0662 TUBE-TONGU - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0680A-0665

USE 781-0680B-0637 TUBE-TONGU - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0680A-0674

USE 781-0680B-0674 TUBE-TONGU - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 781-0680A-0689

USE 781-0680B-0689 TUBE-TONGU - POLO GREEN (0689)

$

$

Not available

Cub Cadet 781-0680A-0716

USE 781-0680B-0716 TUBE:TNG: - CUB YELLOW-99 (0716)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-0411

Hex Cap Screw 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

73

Cub Cadet 681-0110

Support Beam Support Assembly
(Superseded to 681-0110-0637)

Variations

Cub Cadet 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

73

Cub Cadet 781-0398

Support Beam Support

Variations

Cub Cadet 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

Cub Cadet 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0398-0498

BEAM SUPPORT ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 681-04029

Adjustable Jack Stand
(Superseded to 981-04029)

$295.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 14

0

76

Cub Cadet 736-0262

Flat Washer .385 ID x .870 OD

$3.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

78

Cub Cadet 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 727-04030

Hitch Coupler, 2-inch

$

$

Not available

80

Cub Cadet 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

81

Cub Cadet 712-3008

Hex Jam Nut 3/8-16

$4.99

$

In Stock, Qty 19

0

86

Cub Cadet 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

87

Cub Cadet 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

88

Cub Cadet 634-0187

Wheel Assembly with bearing cones & seal

Note: Cub Beige Rim

$363.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 734-0872

Tire 4.80 X 8

$169.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 634-0189

Rim Assembly with bearing cups only

Note: Cub Beige

$

$

Not available

90

Cub Cadet 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

91

Cub Cadet 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

92

Cub Cadet 714-0162

Cotter Pin 5/32" x 1-1/4"

$4.99

$

In Stock, Qty 20+

0

93

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

94

Cub Cadet 681-0074

Light Bracket Assembly LH
(Superseded to 681-0074-0637)

Variations

Cub Cadet 681-0074-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

95

Cub Cadet 625-0009

Tail Light Assembly

$

$

Not available

96

Cub Cadet 712-0292

Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

97

Cub Cadet 781-0624

Light Bracket Assembly RH
(Superseded to 781-0624-0637)

Variations

Cub Cadet 781-0624-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)

$

$

Not available

$

$
