LS 33 (24BL59M4066) - Troy-Bilt Log Splitter (2011) 178-L0-11 Cylinder Head Parts Diagram

Log Splitter

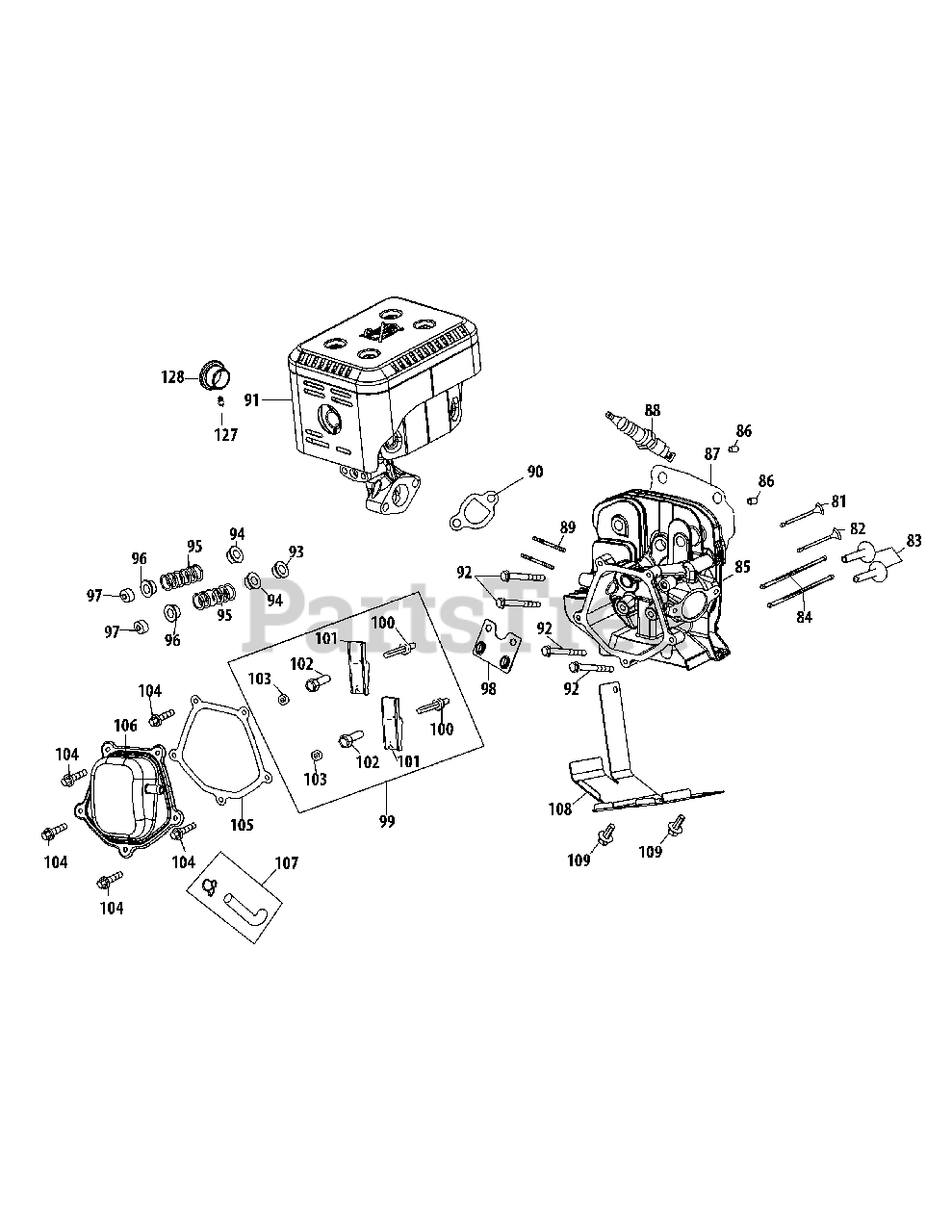

178-L0-11 Cylinder Head Parts Diagram

  • Title

81

Troy-Bilt 951-12379

Valve Kit

$

$

Not available

82

Troy-Bilt 951-12379

Valve Kit

$

$

Not available

83

Troy-Bilt 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-11199

Push Rod Kit

$13.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 951-11188

Cylinder Head Assembly

Note: (Incl.81,82,85,87,89,90,92-98,100-103,105,110-112)

$338.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 715-04097

Dowel Pin 12×20

$6.49

$

Usually ships in 3-6 days

0

87

Troy-Bilt 951-12076

Gasket, Cylinder Head

$12.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

89

Troy-Bilt 710-04964

Muffler Stud M8×48.5

$6.49

$

In Stock, only 1 left!

0

89

Troy-Bilt 951-11207

Muffler Stud Assembly

$8.49

$

Usually ships in 3-6 days

0

90

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

91

Troy-Bilt 951-12404

Muffler Assembly

$132.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 710-04973

Bolt M10×1.25×80
(Superseded to 710-04965)

$6.99

$

In Stock, only 1 left!

0

93

Troy-Bilt 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

94

Troy-Bilt 951-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

95

Troy-Bilt 951-12078

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 951-12080

Retainer, Ex.Valve Spring

$4.49

$

In Stock, Qty 20+

0

97

Troy-Bilt 951-12081

Adjuster, Exh Valve
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

98

Troy-Bilt 951-11965

Push Rod Guide
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

100

Troy-Bilt 710-04962

Bolt, Pivot

$6.49

$

In Stock, only 1 left!

0

101

Troy-Bilt 951-11966

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

102

Troy-Bilt 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

103

Troy-Bilt 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

104

Troy-Bilt 710-05054

Valve Cover Bolt

$6.49

$

In Stock, only 2 left!

0

105

Troy-Bilt 951-11967

Valve Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

106

Troy-Bilt 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 951-12403

Breather Hose Assembly

$9.49

$

Usually ships in 3-6 days

0

108

Troy-Bilt 951-12405

Air Shield

$16.99

$

Usually ships in 3-6 days

0

109

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

127

Troy-Bilt 710-05347

Bolt, Self Tapping

$

$

Not available

128

Troy-Bilt 951-12344

Spark Arrestor

$33.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12377

Gasket Kit - External

Note: Not shown (Incl.66,90,105,111-113,115)

$31.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11226

Cylinder Head Service Kit

Note: Not shown (Incl.87,92,93,105)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12380

Gasket Kit - Complete

Note: Not shown (Incl.38,45,51,66,67,87,90,105,111-113)

$

$

Not available

Troy-Bilt 952Z178-L0-11

Complete Engine
(Superseded to 952Z178-LU)

Note: Not shown

$1166.99

$

Usually ships in 3-6 days

0
