LS 33 (24AD598A010) - Cub Cadet Log Splitter (2009) General Assembly LS33 (2009) Parts Diagram

Log Splitter

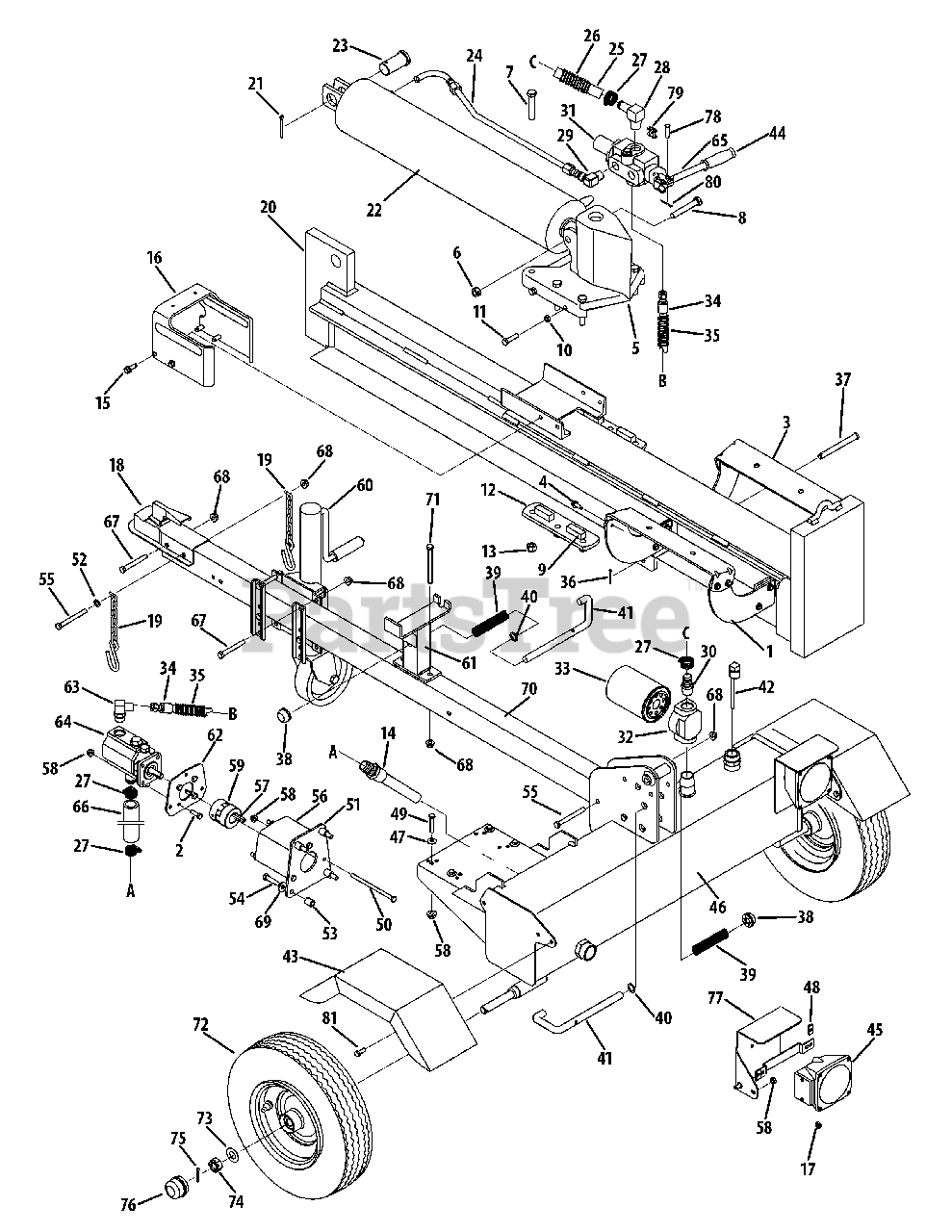

General Assembly LS33 (2009) Parts Diagram

  • Title

1

Cub Cadet 781-04180-0637

Log Tray Bracket

$35.99

$

In Stock, Qty 6

0

2

Cub Cadet 710-0376

Hex Screw, 5.16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 781-04179-0637

Log Tray Bracket

$50.99

$

In Stock, Qty 7

0

4

Cub Cadet 710-04484

TT Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 719-0550A

Wedge Assembly

$245.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3022

Lock Nut, 1.2-13

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-1018

Hex Cap Screw, 1.2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

8

Cub Cadet 710-1806

Hex Cap Screw, 1.2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-0711

Hex Jam Nut, 3.8-24

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0459A

Hex Cap Screw, 3.8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

12

Cub Cadet 781-0790-0637

Back Plate
(Superseded to 781-0790A-0637)

$40.99

$

In Stock, only 2 left!

0

13

Cub Cadet 912-3058

Hex Lock Nut, 1.2-20

$5.99

$

In Stock, Qty 16

0

14

Cub Cadet 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0654A

Hex Washer Screw, 3.8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 781-0525-4021

Dislodger

$151.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 912-3008

Jam Nut, 3.8-16

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 681-04030

2-inch Hitch Coupler

$72.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

20

Cub Cadet 981-04080

Beam Assembly

$

$

Not available

21

Cub Cadet 714-0211

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 918-0313A

Hydraulic Cylinder 31/33 Ton

$

$

Not available

23

Cub Cadet 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 727-04166

Hydraulic Tube

$114.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 727-0443

Return Hose, 3.4"ID x 44"

$118.99

$

In Stock, only 1 left!

0

26

Cub Cadet 781-0526A

Hose Guard

$53.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0132

Hose Clamp, 5.8"

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 737-0235

3.4"Hose Adapter

$23.99

$

In Stock, only 2 left!

0

31

Cub Cadet 918-0481A

Control Valve

$383.99

$

In Stock, only 1 left!

0

32

Cub Cadet 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, only 4 left!

0

34

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 914-0470

Cotter Pin, 18"
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0805

Hinge Pin, 1.2 x 4.8"Lg.

$

$

Not available

38

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

39

Cub Cadet 732-0583

Compression Spring 4"

$12.99

$

In Stock, only 1 left!

0

40

Cub Cadet 936-0116

Flat Washer, .635 ID x .93 OD

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

42

Cub Cadet 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

43

Cub Cadet 781-04002-4021

Fender

$166.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 625-0062

Tail Light Assembly

$194.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 725-2058

Tail Light - RH

$

$

Not available

45

Cub Cadet 725-2059

Tail Light - LH

$

$

Not available

45

Cub Cadet 725-2060

Harness - Wire

$

$

Not available

46

Cub Cadet 981-04041A-0637

Frame Assembly, 7.0 Gal
(Superseded to 981-04041B-0637)

$

$

Not available

47

Cub Cadet 736-0242

Bell Washer, 340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0292

Tin Nut Clip, 1.4-20

$10.99

$

In Stock, only 2 left!

0

49

Cub Cadet 710-3180

Hex Cap Screw, 5.16-18 x 1.75

$5.49

$

In Stock, Qty 14

0

50

Cub Cadet 710-3226

Hex Cap Screw, 5.16-18 x 5.50

$14.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 781-1100-0637

Front Support Bracket Coupling

$

$

Not available

52

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

53

Cub Cadet 711-0396

Spacer, .385 x .623 x .750

$11.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0347

Hex Cap Screw, 3.8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-3085

Hex Cap Screw, 3.8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

56

Cub Cadet 719-0315

Coupling Shield

$126.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 914-0114

Key

$4.49

$

In Stock, only 1 left!

0

58

Cub Cadet 712-04063

Hex Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 918-04135

Flex Coupling

$

$

Not available

59

Cub Cadet 710-1842

Set Screw, 1.4-20 x .38
(Superseded to 710-1842A)

$5.49

$

In Stock, only 1 left!

0

59

Cub Cadet 718-04392

Coupling, .500

$14.99

$

In Stock, only 2 left!

0

59

Cub Cadet 718-04393

Coupling, 1.00

$

$

Not available

59

Cub Cadet 735-04103

Spider Coupling

$14.99

$

In Stock, only 1 left!

0

60

Cub Cadet 981-04029

Adjustable Jack Stand

$295.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 681-0110-0637

Support Beam Assembly

$

$

Not available

62

Cub Cadet 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

63

Cub Cadet 737-0264

Adapter, 7.8-14

$

$

Not available

64

Cub Cadet 918-04128

Pump

$970.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

66

Cub Cadet 727-0451

Suction Hose

$107.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-0521

Hex Cap Screw, 3.8-16 x 3.0

$5.49

$

In Stock, Qty 10

0

68

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

69

Cub Cadet 936-0169

Lock Washer, 3.8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 781-0680B-4021

Tube
(Superseded to 781-0680B-0637)

$

$

Not available

71

Cub Cadet 710-0411

Hex Cap Screw, 3.8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

72

Cub Cadet 634-0187

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 734-0872

Tire 4.80 X 8

$169.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 634-0189

Rim Assembly

$

$

Not available

72

Cub Cadet 921-0168

Dust Seal

$9.49

$

In Stock, Qty 18

0

72

Cub Cadet 941-0987

Roller Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

73

Cub Cadet 936-0351

Flat Washer, .76"ID x 1.5"OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 712-0359

Slotted Nut, 3.4-16

$11.99

$

In Stock, only 1 left!

0

75

Cub Cadet 714-0162

Cotter Pin, 5.32"x 1-1.4"

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

77

Cub Cadet 681-04049-0637

Light Bracket Assembly LH

$

$

Not available

77

Cub Cadet 81-04116-0637

Light Bracket Assembly RH

$

$

Currently unavailable

78

Cub Cadet 711-04585

Clevis Pin

$6.99

$

In Stock, only 3 left!

0

79

Cub Cadet 913-04036

Valve Handle Link

$21.99

$

In Stock, only 2 left!

0

80

Cub Cadet 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

81

Cub Cadet 710-0650

TT Screw, 5.16-18 x .875

$3.99

$

In Stock, Qty 20+

0
